| Place of Origin: | ShanDong, China (Mainland) |
| Brand Name: | CN&ZH |
| Certification: | ISO 9001:2000 |
| Model Number: | 23034 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD =-1-100 piece |
| Packaging Details: | Conventional Package/As your request |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces days |
| Bore Size: | 160 Mm | Outside Diameter: | 240 Mm |
|---|---|---|---|
| High: | 60 Mm | Feature: | High Quality/Long Life |
| Material: | Chrome Steel/GCR 15 | Precision Rating: | P0 P6 P5 P4 P2 |
| High Light: | roller cage bearing,spherical roller thrust bearing |
||
Product Description

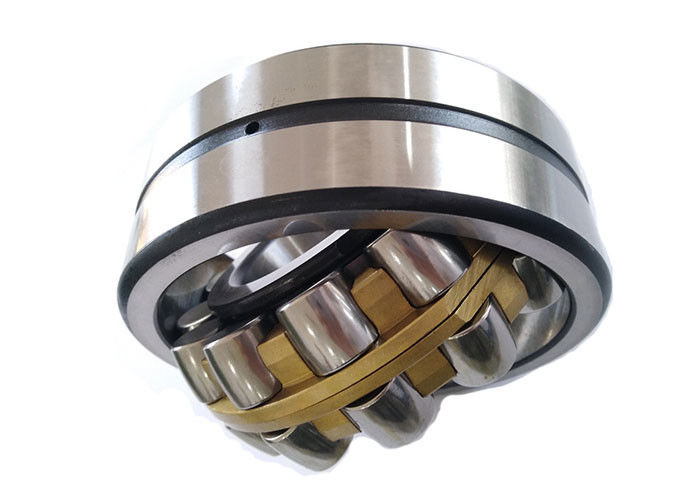

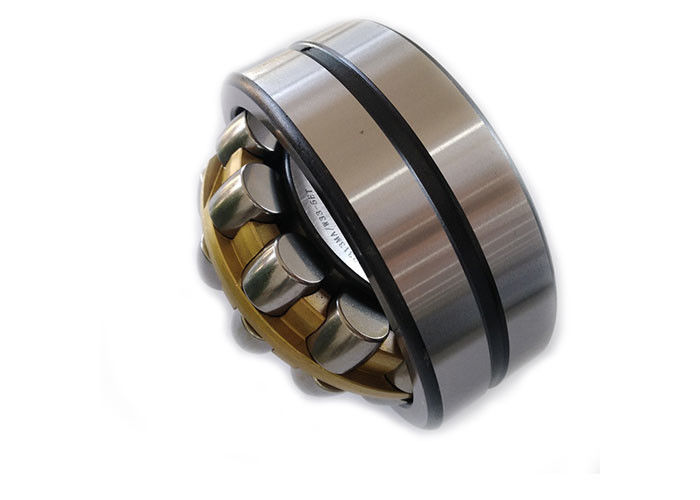

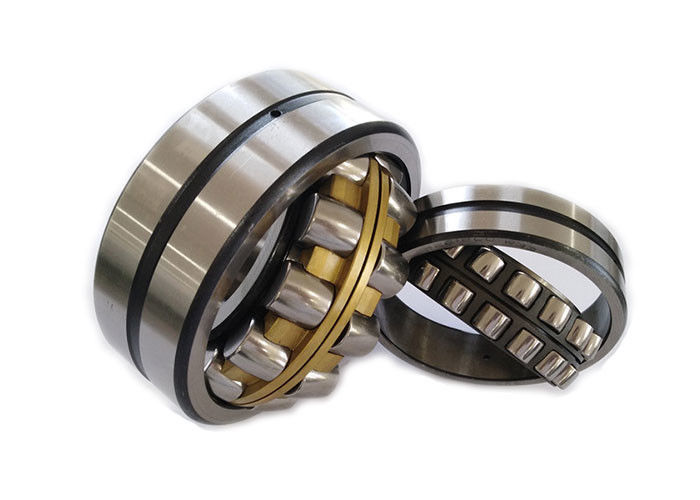

wind generator bearing Spherical roller bearing 23034:
| dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | Bearing Number | |||||
| d | D | B | rs min | Cr | Cor | Grease | Oil | (Approx.) | CLUNT |
| 110 | 170 | 45 | 2 | 282 | 455 | 1,800 | 2,800 | 3.71 | 23022 |
| 120 | 180 | 46 | 2 | 296 | 495 | 1,700 | 2,600 | 4.05 | 23024 |
| 130 | 200 | 52 | 2 | 375 | 620 | 1,500 | 2,300 | 5.9 | 23026 |
| 140 | 210 | 53 | 2 | 405 | 690 | 1,400 | 2,200 | 6.35 | 23028 |
| 150 | 225 | 56 | 2.1 | 445 | 775 | 1,300 | 2,000 | 7.73 | 23030 |
| 160 | 240 | 60 | 2.1 | 505 | 885 | 1,200 | 1,900 | 9.42 | 23032 |
| 170 | 260 | 67 | 2.1 | 630 | 1,080 | 1,100 | 1,800 | 12.7 | 23034 |
| 180 | 280 | 74 | 2.1 | 740 | 1,290 | 1,100 | 1,700 | 16.7 | 23036 |
| 190 | 290 | 75 | 2.1 | 755 | 1,350 | 1,000 | 1,600 | 17.1 | 23038 |
| 200 | 310 | 82 | 2.1 | 915 | 1,620 | 960 | 1,500 | 22.7 | 23040 |
| 220 | 340 | 90 | 3 | 1,060 | 1,920 | 870 | 1,300 | 29.9 | 23044 |
| 240 | 360 | 92 | 3 | 1,130 | 2,140 | 790 | 1,200 | 33.4 | 23048 |
| 260 | 400 | 104 | 4 | 1,420 | 2,620 | 720 | 1,100 | 48.5 | 23052 |
| 280 | 420 | 106 | 4 | 1,510 | 2,920 | 660 | 1,000 | 50.6 | 23056 |
| 300 | 460 | 118 | 4 | 1,890 | 3,550 | 610 | 940 | 72.4 | 23060 |
Specification
| High precision 23034 spherical roller bearing |
23034 Bearing,
170×260×67mm bearing |
| 23034 bearing type | spherical roller bearing |
| inner diameter | 170mm |
| outer diameter | 260mm |
| width diameter | 67mm |
| 23034 spherical roller bearing weight | 13kg |
| 23034 bearing are available from many design, variants, series and size, 23034 bearing have specially designed raceways and accommodate a large number of spherical rollers. 23034 bearings are designed to achieve a high capacity with low friction and continuous roller alignment. This bearing type is ideal for operating conditions double row spherical roller bearing contain spherical rollers,they can carry both axial and shaft direction capacity. |
Design: spherical roller bearing 23034 |
| Metarial:High quality chrome steel Lubrication:Oil or grease sealed:Rubber sealed or press steel shielded dynamic load rating: 710kN static load rating:1060kN Fatigue load limit:100kN Reference speed:2200r/min |
|
| 23034 bearing are widely used in industry area: | Rolling Mill equipment Paper making machine Vibrating screen Pulp & papernes Material handling Fluid machinery Mining & construction |
We are the professional supplier of BEARING with high precision quality and pretty competitive price.
We have export the bearings to the European & American Markets/Middle East Market/Asia Market.
We can supply the following bearings.
1. Deep groove ball bearings (68series,69series,60series,62series,63series,64series)
2.Tapered roller bearing(320 series,322 series,323 series)
3.Linear bearing
4.Thrust ball bearing(511 series,512 series,513 series)
5.Cylindrical roller bearing(NU10 series,NJ2 Series,N3 series,NN series
6.Needle roller bearing
7.Angular contact ball bearing(70 series.72 series.73 series.74 series)
8.Spherical roller bearing
9.Thurst roller bearing
10.Spherical ball bearing(230 series,222series,223series)
11.pillow block bearing(UCP series,UCF series,UCT series,UCFL series)
