Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Place of Origin: | ShanDong, China (Mainland) |
| Brand Name: | CN&ZH |
| Certification: | ISO 9001:2000 |
| Model Number: | 23030 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD =-1-100 piece |
| Packaging Details: | Conventional Package/As your request |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces days |
| Bore Size: | 150 Mm | Outside Diameter: | 225 Mm |
|---|---|---|---|
| High: | 56 Mm | Feature: | High Quality/Long Life |
| Material: | Chrome Steel/GCR 15 | Precision Rating: | P0 P6 P5 P4 P2 |
| High Light: | split roller bearing,spherical roller thrust bearing |
||

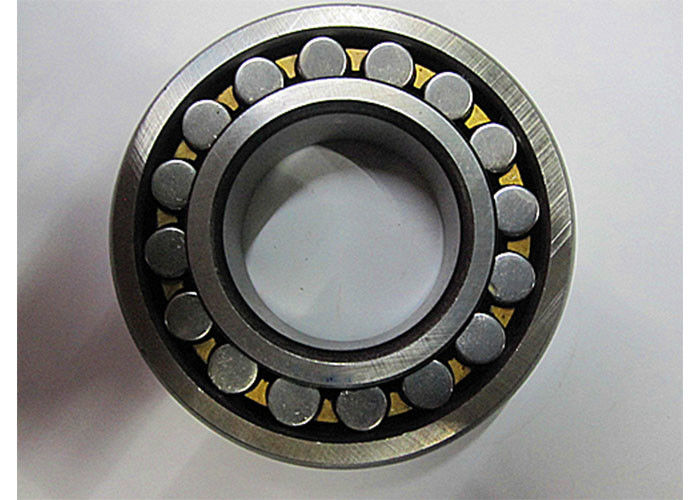

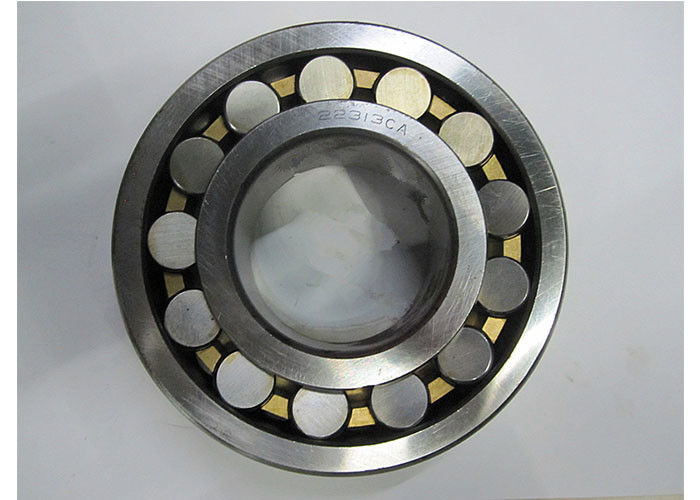

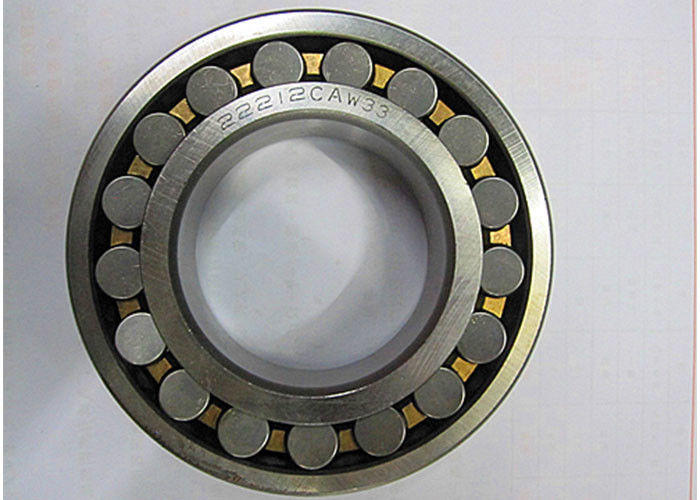

Long Life Energy saving International Trade Bearing 23030CA 23030CAK Spherical Roller Bearings 23030 150*225*56 mm
Product Description
Self-aligning roller bearing has two rows of spherical rollers, the outer race is provided with a common concave spherical raceway, while the inner race is provided with two concave spherical raceways that form an angle with the bearing axis. The curvature center of the outer raceway is consistent with the bearing center.
The self-aligning roller bearing is self-adjusted, and it is not affected by non-centering or shaft deformation flexure of shaft and bearing block, so it can compensate the concentricity error caused by these reasons. Except being subject to radial load, this type of bearing can also be subject to bidirectional axial load and their combination load. The load capacity is large, and the bearing is provided with preferable shock resistant capacity.
Self-aligning roller bearings are mainly applied on mechanical equipments of steel, mine, paper making, shipping, textile machinery, coal mill and electric power industries. It is one of the bearings most widely used in mechanical industry.
Specification
| Designation: 23030 | |||||||||||||||||
| Type: Radial spherical roller bearings. Multi row. Complete. (150X225X56). | |||||||||||||||||
| Main dimensions: | |||||||||||||||||
|
|||||||||||||||||
| MODEL NO. | 23030 |
| MATERIAL | Chrome Steel |
| Structure | Spherical Roller Bearing |
| Certificate | ISO9001:2008 and ISO14001:2004 |
| Vibration level codes | V4, V3, V2, V1 levels are available |
| Service | OEM/CUSTOMIZED |
| Samples | Available |
| Cage's material | Nylon,Steel, Brass are available |
| Main market | Europe ,America,Southeast Asia ,South Africa,Middle East... |
| Stock | in stock |
| Lead Time | 1-3 days for small quantity, 5-10 days for large quantity |
| Unit Price | Please make a inquiry, we will reply you promptly |
The features of Nylon cage bearing:
1.Light weight, flexibility, energy saving.Due to the perfect design,During the working process,will have more advantages.
2.During the working process,the noise will be very low
3.Cause the different material,it will extend the service life of bearing
The features of Brass cage bearing:
1.High-duty
2.Seismic behavior
3.High Speed
4.High temperature.So strong the hardness.
5.High Load.
