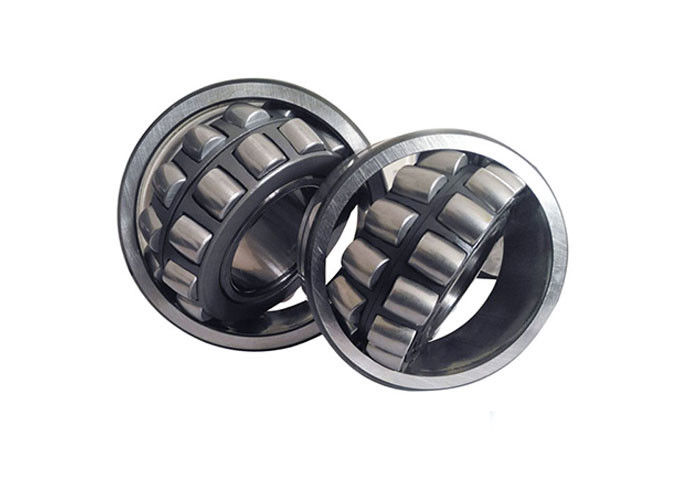

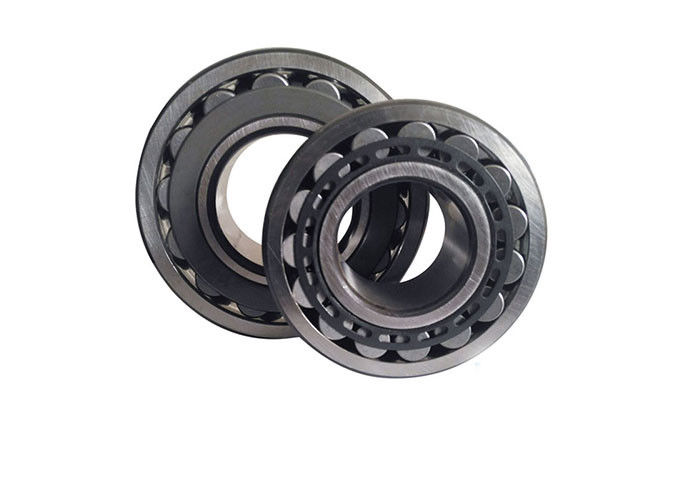

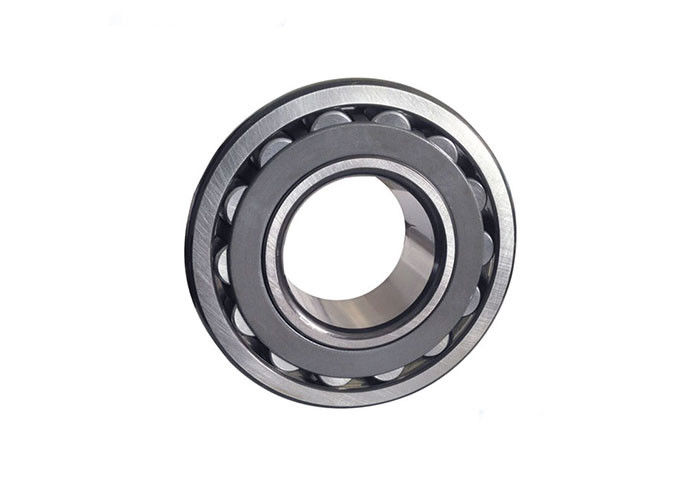

P5 / P6 Precision Rating 22328 Spherical Roller Bearing For Machinery 140 * 210 * 53 mm

Specification

Self-aligning roller bearing is designed to adapt to the circumstance of heavy load. It has

two rows of symmetric spherical rollers.The rollers may freely adjust position in the outer

spherical raceway,which may compensate the shaft deformation and non-alignment error

of bearing seat.

The quantity,length and diameter of roller in self-aligning roller bearing are the max.value

that the structure allows.The close contact between the roller and raceway ensures the

uniform stress distribution and enables the high bearing capacity of bearing.

• printing presses, paper mills or coaters in high precision execution
• very arduous operating conditions, e. g.continuous casters
• high temperature applications
• mounting with loose fit on roll necks
• railway vehicles

Spherical roller bearings with two rollers, mainly bear radial load, but also can withstand

axial load in either direction. A high radial load capacity, especially suitable for heavy loads

or vibration, but can not bear the pure axial load. This kind of bearing outer ring raceway

is spherical shape, so the good performance of its self-aligning, can compensate concentricity

error.

There are two symmetrical spherical roller, there is a common spherical outer ring raceway,

the bearing inner ring with two axis tilt

Angle of raceway, aligning with good performance, when the axis force bent or install a

different heart is still bearing the normal use, transfer concentric with the bearing size

range varies,generally aligning allowed 1 to 2.5 degree angle load bearing capacity of the larger

type, in addition to radial loads but also under way outside the role of bearing axial load, with

good impact resistance, in general, self-aligning roller bearings allowed working speed than the

low.

C(J),EC(J).CA,ECA,CAF,CAFA, and so on.

1.CA: Integral brass cage, double row symmetrical rollers,inner ring ride

2.MA: Integral brass cage, double row symmetrical rollers ,outer ring ride

3.MB: Two piece brass cage,double row asymmetrical rollers, inner ring ride

4.CC: Two piece steel cage, double row symmetrical rollers,inner ring ride

5.CTN1: Double row symmetrical rollers ,nylon cage

6.K: Tapered bore bearing, the taper is 1:12

7.K30: Tapered bore bearing,the taper is 1:3
