| Place of Origin: | CHINA |
| Brand Name: | NTN |
| Model Number: | 69092 |
| Certifiexcavatorion: | ISO 16949 |
| Minimum Order Quantity: | 10 Piece |
|---|---|
| Price: | negotiated |
| Packaging Details: | NTN |
| Delivery Time: | 4-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, L/C, D/P, T/T, Western Union |
| Supply Ability: | 500 piece per day |
| Material:: | Chrome Steel / GCr15 / | Clearanc:: | C2, CN, C3, C4, C5 |
|---|---|---|---|
| Type:: | OPEN, ZZ, 2RS, N, NR, ZN, RZN | Appliexcavatorion:: | Office Equipment , Scooter Aluminum Windows , Shower Blocks, Hanging Round, Closet Wheel, Toys, Etc |
| Precision Rating:: | P0/P1/P2/P5/P6 | Color:: | Silvery White |
| High Light: | high speed ball bearings,thin section ball bearings |
||

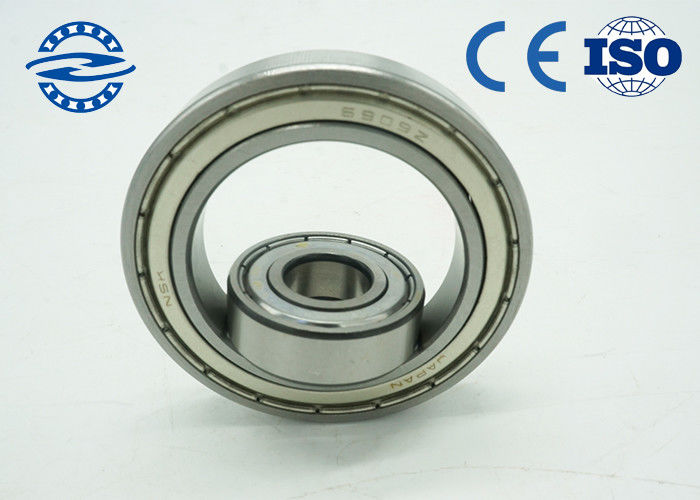

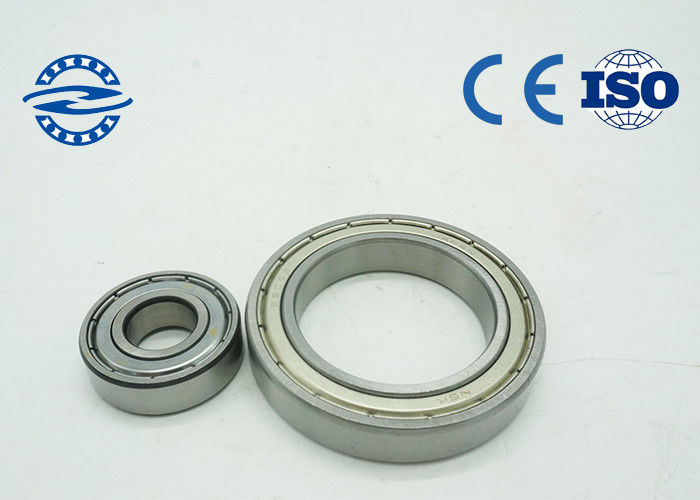

They are the most typical rolling bearings with extensive appliexcavatorions . The raceways in both of the rings are in arc groove form , which can carry radial and axial load in double directions . They can be applied in situations where high-rotating speed and low noise and low vibration are required .
Cages
Deep groove ball bearings generally use pressed cages of steel sheet or brass cages . When the outer diameter is less than (inclusive) 400mm ,
They use pressed cage with steel sheet . When the outer diameter is bigger than 400mm , they use brass cages .
Appliexcavatorions
can be found in automobiles , machine tools , motors , instruments , construct machines , railway vehicles , agricultural machines and various other Special machines
Types
Basic type , With snap ring groove on the outer ring (-N) , With one shield (-Z) on one side or two shields (-2Z) on both sides , With one seal (-RS) on one side or two seals (-2RS) on both sides .
| The original code | modern number | Basic size | Installation size | Weight | |||||
| d | D | B | rsmin | Dsmin | dhmax | Rmax | |||
| 200 | 6200 | 10 | 30 | 9 | 0.6 | 14 | 26 | 0.6 | 0.0277 |
| 201 | 6201 | 12 | 32 | 10 | 0.6 | 16 | 28 | 0.6 | 0.0365 |
| 202 | 6202 | 15 | 35 | 11 | 0.6 | 19 | 31 | 0.6 | 0.0431 |
| 203K | 6203 | 17 | 40 | 12 | 0.6 | 21 | 36 | 0.6 | 0.0661 |
| 6204 | 20 | 47 | 14 | 1 | 25 | 42 | 1 | 0.11 | |
| 204A | 6204TNI | 47 | 14 | 1 | 25 | 42 | 1 | 0.104 | |
| 6304X3/C3 | 62 | 16 | 1 | 28 | 54 | 1 | 0.252 | ||
| 63/22/C3 | 22 | 56 | 16 | 1.1 | 29 | 47 | 1 | 0.183 | |
| 66/23/P53YB2 | 23 | 56 | 15 | 1 | 29 | 47 | 1 | 0.131 | |
| 66/23/P53Z2 | 56 | 15 | 1 | 29 | 47 | 1 | 0.125 | ||
| 1000905 | 61905 | 25 | 42 | 9 | 0.3 | 27 | 40 | 0.3 | 0.0415 |
| 105 | 6005 | 47 | 12 | 0.6 | 29 | 43 | 0.6 | 0.078 | |
| 16005 | 47 | 8 | 0.3 | 27 | 45 | 0.3 | 0.0562 | ||
| 205 | 6205 | 52 | 15 | 1 | 30 | 47 | 1 | 0.134 | |
| 205A | 6205TNI | 52 | 15 | 1 | 30 | 47 | 1 | 0.126 | |
| 6305 | 62 | 17 | 1.1 | 31.5 | 55.5 | 1 | 0.214 | ||
| 6305X3/C3YA5 | 68 | 18 | 1.1 | 33 | 62 | 1 | 0.296 | ||
| 405 | 6405 | 80 | 21 | 1.5 | 33 | 72 | 1.5 | 0.53 | |
| 6605X2WBTN1/HA | 26 | 68 | 19.5 | 2 | 33 | 61 | 2 | 0.272 | |
| 63/28/HA | 28 | 68 | 18 | 1.1 | 34.5 | 61.5 | 1 | 0.299 | |
| 1000906 | 61906 | 30 | 47 | 9 | 0.3 | 32 | 45 | 0.3 | 0.0433 |
| 1-0005 | 59 | 22 | 0.4 | 33 | 55 | 0.4 | 0.191 | ||
| 206 | 6206 | 62 | 16 | 1 | 35 | 57 | 1 | 0.218 | |
| 306K | 6306 | 72 | 19 | 1.1 | 36.5 | 65.5 | 1 | 0.354 | |
| 6406 | 90 | 23 | 1.5 | 38 | 82 | 1.5 | 0.805 | ||
| 6007 | 35 | 62 | 14 | 1 | 40 | 57 | 1 | 0.148 | |
| 6207 | 72 | 17 | 1.1 | 41.5 | 65.5 | 1 | 0.284 | ||
| 307K | 6307 | 80 | 21 | 1.5 | 43 | 72 | 1.5 | 0.456 | |
| 307A | 6307TNI | 80 | 21 | 1.5 | 43 | 72 | 1.5 | 0.443 | |
| 307U | 80 | 21 | 1.5 | 43 | 72 | 1.5 | 0.481 | ||
| 407 | 6407 | 100 | 25 | 1.5 | 43 | 92 | 1.5 | 0.919 | |
| 6008/C3 | 40 | 68 | 15 | 1 | 44.6 | 63.4 | 1 | 0.191 | |
| 208K | 6208 | 80 | 18 | 1.1 | 46.5 | 73.5 | 1 | 0.361 | |
| 6208/HAP6 | 80 | 18 | 1.1 | 46.5 | 73.5 | 1 | 0.361 | ||
| 6208/P5YB2 | 80 | 18 | 1.1 | 46.5 | 73.5 | 1 | 0.361 | ||
| 370208 | 80 | 18 | 1.1 | 46.5 | 73.5 | 1 | 0.362 | ||
| 6308/P5YB2 | 90 | 23 | 1.5 | 48 | 82 | 1.5 | 0.642 | ||
| 308 | 6308 | 90 | 23 | 1.5 | 48 | 82 | 1.5 | 0.642 | |
| 308A | 6308TN1 | 90 | 23 | 1.5 | 48 | 82 | 1.5 | 0.611 | |
| 6308/HA | 90 | 23 | 1.5 | 48 | 82 | 1.5 | 0.642 | ||
| 408K | 6408 | 110 | 27 | 2 | 49 | 101 | 2 | 1.2 | |
| 62/41/HAP53 | 41 | 80 | 17 | 1.1 | 46.5 | 73.5 | 1 | 0.342 | |
| 6009 | 45 | 75 | 16 | 1 | 50 | 70 | 1 | 0.246 | |
| 209 | 6209 | 85 | 19 | 1.1 | 51.5 | 78.5 | 1 | 0.428 | |
