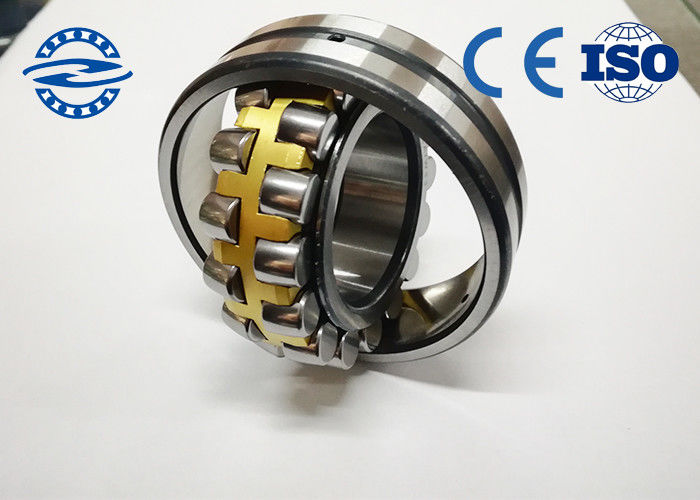

Spherical Roller Bearing 22310 Size 50*110*40 mm For Heavy Duty And Shock Loads

Spherical Roller Bearing 22310 Size 50*110*40 mm For Heavy Duty And Shock Loads

  • Spherical Roller Bearing 22310 Size 50*110*40 mm For Heavy Duty And Shock Loads
  • Spherical Roller Bearing 22310 Size 50*110*40 mm For Heavy Duty And Shock Loads
  • Spherical Roller Bearing 22310 Size 50*110*40 mm For Heavy Duty And Shock Loads
  • Spherical Roller Bearing 22310 Size 50*110*40 mm For Heavy Duty And Shock Loads
  • Spherical Roller Bearing 22310 Size 50*110*40 mm For Heavy Duty And Shock Loads
  • Spherical Roller Bearing 22310 Size 50*110*40 mm For Heavy Duty And Shock Loads
Spherical Roller Bearing 22310 Size 50*110*40 mm For Heavy Duty And Shock Loads
Product Details:
Place of Origin: CHINA
Brand Name: Z&H
Certification: ISO 16949
Model Number: 22310
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: Negotiation
Packaging Details: Wooden case,By carton or on request.
Delivery Time: 1-8 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 per day
Contact Now
Detailed Product Description
Application: Machinery,Agriculture. Chemical Model: 22310
Name: Spherical Roller Bearing Size: 50*110*40 Mm
Weight: 1.85kg Cage: Brass/Steel
Clearance: C3 C4 C5 Service: OEM Customized Services
High Light:

split roller bearing

,

spherical roller thrust bearing

Spherical Roller Bearing 22310 Size 50*110*40 mm



Product Description

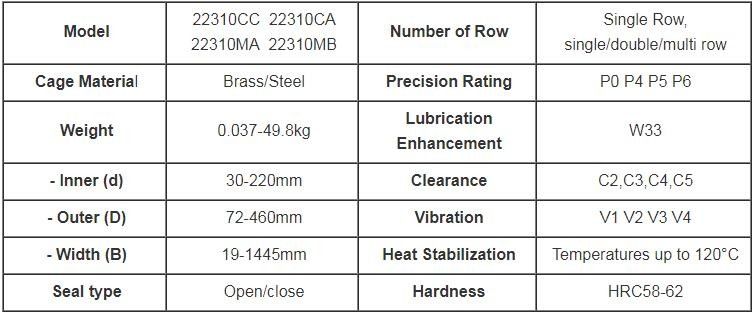

Model 22310CC 22310CA 22310MA 22310MB Number of Row Double row
Cage Material Brass/Steel Precision Rating P0 P4 P5 P6
Weight 0.037-49.8kg Lubrication Enhancement W33
- Inner (d) 50mm Clearance C2,C3,C4,C5
- Outer (D) 110mm Vibration V1 V2 V3 V4
- Width (B) 40mm Heat Stabilization Temperatures up to 120°C
Seal type Open Hardness HRC58-62

Spherical roller bearings have double-row rollers, the outer ring has a common spherical raceway, and the inner ring has two raceways that are inclined at an angle relative to the bearing axis. This ingenious structure makes it have self-aligning performance, so it is not easy to be affected by the angle of the shaft and the bearing box seat on the error or shaft bending. It is suitable for the occasions where the installation error or the shaft deflection causes the angle error. In addition to being able to withstand radial loads, the bearing can also withstand bidirectional axial loads.
Spherical roller bearings have cylindrical and conical bores. The taper of the conical cone bore is 1:30 and 1:12. This conical bore bearing is equipped with an adapter sleeve or a withdrawal sleeve. The tapered inner hole self-aligning ball bearing can be easily and quickly assembled on the optical shaft or the stepper shaft.

Spherical Roller Bearing 22310 Size 50*110*40 mm For Heavy Duty And Shock Loads 0



Spherical Roller Bearing 22310 Size 50*110*40 mm For Heavy Duty And Shock Loads 1

Spherical Roller Bearing 22310 Size 50*110*40 mm For Heavy Duty And Shock Loads 2





Other size



22300series
Bearing Number Dimension (mm ) Weight (kg)
22306 30X72X19 0.37
22307 35X80X31 0.75
22308 40X90X33 1.03
22309 45X90X33 1.4
22310 50X110X40 1.85
22311 55X120X43 2.42
22312 60X130X46 3
22313 65X140X48 3.65
22314 70X150X51 4.4
22315 75X160X55 5.47
22316 80X170X58 6.63
22317 85X180X60 7.07
22318 90X190X64 8.76
22319 95X200X67 9.93
22320 100X215X73 13.7
22322 110X240X80 17.7
22324 120X260X86 22.9
22326 130X280X93 28.5
22328 140X300X102 35.5
22330 150X320X108 42
22332 160X340X114 52.2
22334 170X360X120 60.7
22336 180X380X126 72.6
22338 190X400X132 84.2
22340 200X420X138 94.4
22344 220X460X145 119







Characteristic



1.High performance bearing supports
2.High overall equipment efficiency
3.More economical bearing supports due to downsizing
4.Lower operating costs

5.Suitable for heavy loads

6.Many variations available to suit a range of conditions



Material



1.CA: Integral brass cage, double row symmetrical rollers,inner ring ride

2.MA: Integral brass cage, double row symmetrical rollers ,outer ring ride

3.MB: Two piece brass cage,double row asymmetrical rollers, inner ring ride

4.CC: Two piece steel cage, double row symmetrical rollers,inner ring ride

5.K: Tapered bore bearing, the taper is 1:12

6.K30: Tapered bore bearing,the taper is 1:30

7.W33: With lubrication groove in outer ring,with three oil holes

8.C2/C3/C4: Internal clearance series: C2,C0,C3, and C4



Application



Spherical roller bearings for automotive, construction machinery, oil drilling, coal mining industrial, motion industrial bearing, for rear-wheel, transmission and electric equipment parts for car making; electromotor, home appliances; instrument, combustion engines, building machinery, railway vehicle, loading/unloading machine, farm machinery and various industrial usage.



Spherical Roller Bearing 22310 Size 50*110*40 mm For Heavy Duty And Shock Loads 3





Company information



Spherical Roller Bearing 22310 Size 50*110*40 mm For Heavy Duty And Shock Loads 4Spherical Roller Bearing 22310 Size 50*110*40 mm For Heavy Duty And Shock Loads 5



Linqing Zhonghong Bearing Co., LTD office is in Guangzhou city and factory in Shandong province. It is a company integrating bearing R & D, production and sales, with many years of experience in bearing support and industrial service in the industrial field. We specialize in both international and domestic brands bearings. The international brands include Swedish , German FAG, INA, Japan NSK, NTN, IKO, KOYO and Amercian TIMKEN, and domestic brands are ZWZ, Harbin HRB, Luoyang LYC etc. Involving types: Deep Groove Ball bearing, Self-Aligning Ball bearing, Cylindrical Roller bearing, Spherical Roller bearing, Angular Contact bearing, Tapered Roller bearing, Thrust Ball bearing, Thrust Roller bearing, Needle Roller bearing, Joint bearing, Outer Spherical bearing, and bearing for special applications.
Our products are widely used in machine tools, coal mines, railways, petroleum, printing, power plants, ships, airlines and other industrial equipment. With competitive prices and fast delivery, we have won the recognition of clients and taken the lead in the field.
All our bearings are to the standard of ISO9001:2008.





Quality control before delievery



Inner and outer diameter detection

Stock bearing 22234  GOST spherical roller bearing 3534

Hardness measuring



Stock bearing 22234  GOST spherical roller bearing 3534







Clearance measuring

Stock bearing 22234  GOST spherical roller bearing 3534





Packing



Stock bearing 22234  GOST spherical roller bearing 3534



Delievery



Stock bearing 22234  GOST spherical roller bearing 3534
