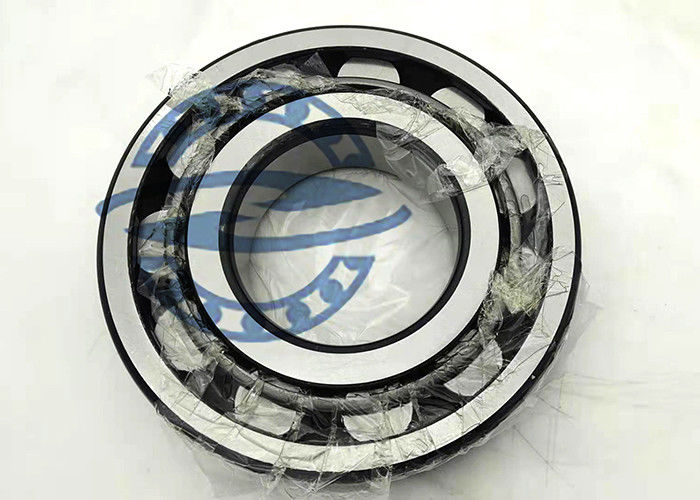

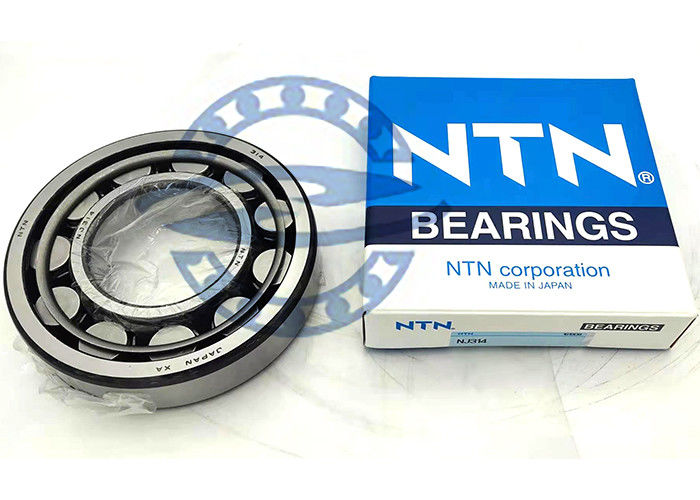

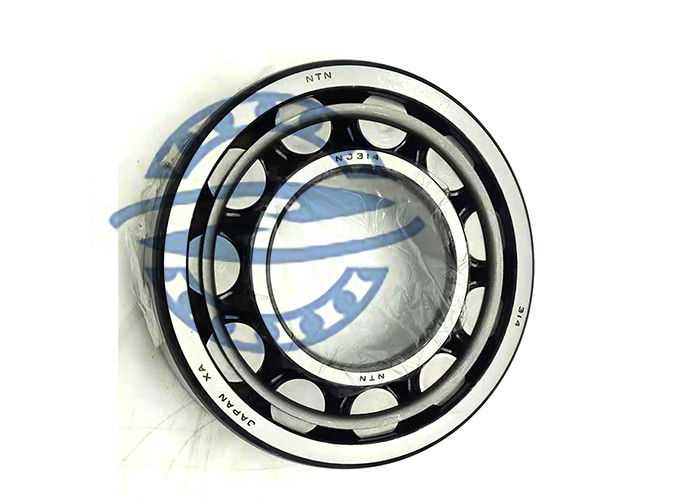

P5 NU314M Cylindrical Roller Bearing NUP314 NJ314 Sizes 70X150X35mm

P5 NU314M Cylindrical Roller Bearing NUP314 NJ314 Sizes 70X150X35mm

  • P5 NU314M Cylindrical Roller Bearing NUP314 NJ314 Sizes 70X150X35mm
  • P5 NU314M Cylindrical Roller Bearing NUP314 NJ314 Sizes 70X150X35mm
  • P5 NU314M Cylindrical Roller Bearing NUP314 NJ314 Sizes 70X150X35mm
P5 NU314M Cylindrical Roller Bearing NUP314 NJ314 Sizes 70X150X35mm
Product Details:
Place of Origin: China
Brand Name: Z&H
Certification: ISO9001:2008
Model Number: NU314 NJ314
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Wooden case,By carton or on request.
Delivery Time: 2-8 work days
Payment Terms: L/C,,D/P,T/T, Alibaba online payment,Paypal,etc.
Supply Ability: 5000 per day
Contact Now
Detailed Product Description
Application: Machinery,Automotive Name: Cylindrical Roller Bearing
Bearing Model: NU314M Material: Chrome Steel
Number Of Row: Single Row Precision Rating: P0 P6 P5 P4 P2
Size: 70X150X35mm Cage: Brass,Steel,Nylon
Service: OEM Customized Services Sample: Avaliable
High Light:

NU314M Cylindrical Roller Bearing

,

P5 Cylindrical Roller Bearing

,

NJ314 Cylindrical Roller Bearing



NU314M Cylindrical Roller Bearing NUP314 NJ314 Sizes 70X150X35mm



Product Information



Product Name
Gearbox NJ314W N314C3 NJ314 NU314ECJ/C3 Single Row Cylindrical Roller Bearing RN314
Model number
NJ314
Type
Cylindrical Roller Bearing
Dimension
70*150*35mm
Weight
2.84kg
OEM/ODM
available
Sample
available
MOQ
1 piece





Single row cylindrical roller bearings



Single row cylindrical roller bearings are used in applications where there are heavy radial loads combined with high speeds. single row cylindrical roller bearings offer design features that result in a bearing that is lighter and more cost-effective, while offering outstanding performance and up to three times longer service life. The internal geometry of single row cylindrical roller bearings has been optimized to distribute loads in a way that significantly reduces the risk of edge stresses. This provides increased operational reliability. The roller end/flange contact has also been improved to reduce friction, and thus heat generated by the bearing, and maximizes the effectiveness of the lubricant. The cross section, e.g. the diameter and length of the rollers, and the wall thickness of the rings and retaining flanges, have been designed to provide maximum bearing service life.



P5 NU314M Cylindrical Roller Bearing NUP314 NJ314 Sizes 70X150X35mm 0P5 NU314M Cylindrical Roller Bearing NUP314 NJ314 Sizes 70X150X35mm 1P5 NU314M Cylindrical Roller Bearing NUP314 NJ314 Sizes 70X150X35mm 2





P5 NU314M Cylindrical Roller Bearing NUP314 NJ314 Sizes 70X150X35mm 3



P5 NU314M Cylindrical Roller Bearing NUP314 NJ314 Sizes 70X150X35mm 4



d

2.7559 in

70.000 mm
D

5.9055 in

150.000 mm
B

1.3780 in

35.000 mm
Fw

3.5433 in

90.000 mm
J

3.8583 in

98.000 mm
r

0.0787 in

2.000 mm
da min

3.1890 in

81.000 mm
db min

3.1890 in

81.000 mm
Da max

5.4724 in

139.000 mm
Db max

5.4724 in

139.000 mm
Db min

5.2756 in

134.000 mm
r1as max

0.0787 in

2.000 mm





Related bearing model Catalogue:





Item dmm Dmm Bmm
NU1005 25 47 12
NU1006 30 55 13
NU1007 35 62 42
NU1008 40 68 15
NU1009 45 75 16
NU1010 50 80 16
NU1011 55 90 18
NU1012 60 95 18
NU1013 65 100 18
NU1014 70 110 20
NU1015 75 115 20
NU1016 80 125 22
NU1017 85 130 22
NU1018 90 140 24
NU1019 95 145 24
NU1020 100 150 24
NU1021 105 160 26
NU1022 110 170 28
NU1024 120 180 28
NU1026 130 200 33
NU1028 140 210 33
NU1030 150 225 35
NU1032 160 240 38
NU1034 170 260 42
NU1036 180 280 46
NU1038 190 290 46



FAQ

1.What is the minimum order quantity for this product?
Can be negotiated, we will try our best to meet customer needs.Our company is mainly based on wholesale sales, most customers'
orders are more than 1 ton.

2.What is your latest delivery time?
7-15 days.

3.What is the competitiveness of your company's products compared to other companies?
High precision, high speed, low noise.


4.Which payment method does your company support?
Do our best to meet customer needs, negotiable.
