Place of Origin:
China
Brand Name:
Z&H
Model Number:
32222

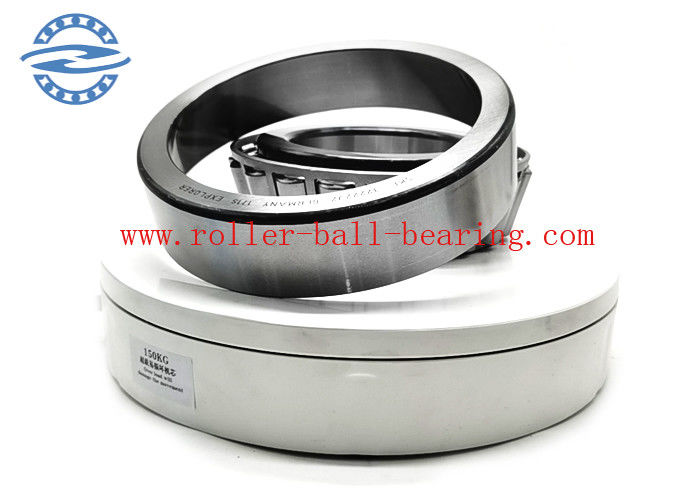

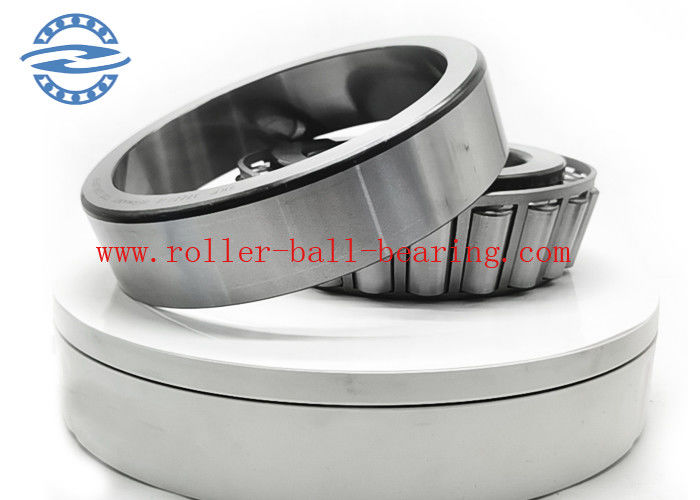

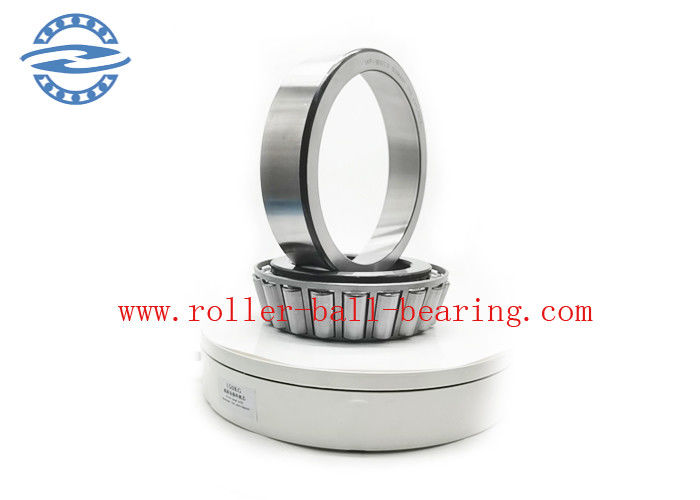

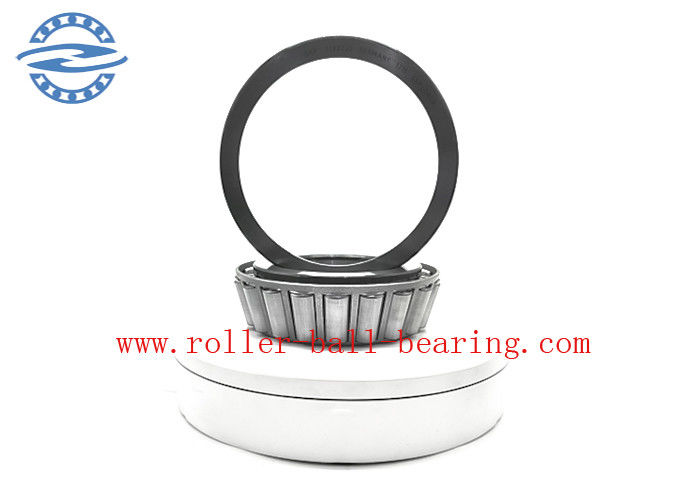

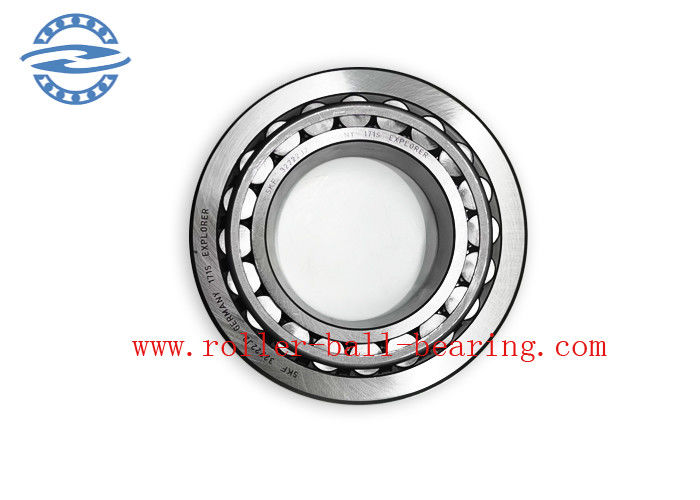

Tapered roller bearing 32222
Overview
Tapered roller bearing is a kind of radial thrust bearing whose rolling body is tapered roller. There are two kinds: small cone angle and large cone angle. The small cone angle mainly bears the combined radial and axial loads, which are mainly radial loads. It is often used in two directions. It is installed in reverse direction. The inner and outer race can be installed separately, and the radial and axial clearance can be adjusted during the installation. The large cone angle mainly bears the combined axial and radial loads, which are mainly axial loads. It is generally not used alone to bear the pure axial load, as a pair of configuration (the same end is installed relatively). It can bear pure radial load.
| Product name | Tapered Roller Bearing 32222 |
| Model | 32222 |
| Dimension | 110x200x56cm |
| Weight | 7.43kg |
| Material | Chrome steel Gcr15 |
| Service | After-sale service |
| Feature | High quality,origin made in Japan,durable and long life |
Related Product
Other Size
1. Tapered roller bearings can be separated from the inner ring and roller assembly and the outer ring together form the cage tapered roller bearings can be installed separately.
2. The roller and raceway contact at the contact line can reduce the stress concentration.
3. Tapered roller bearings can withstand high radial and axial load.
4. As tapered roller bearings can only pass one-way axial load, therefore, to pass in the opposite direction of the axial load will need another with symmetrical installation of tapered roller bearings.
| Item | Size(mm) | Weight (kg) |
| 32004 | 20*42*15 | 0.103 |
| 32005 | 25*47*15 | 0.113 |
| 32006 | 30*55*17 | 0.181 |
| 32007 | 35*62*18 | 0.22 |
| 32008 | 40*68*19 | 0.277 |
| 32009 | 45*75*20 | 0.339 |
| 32010 | 50*80*20 | 0.38 |
| 32011 | 55*90*23 | 0.564 |
| 32012 | 60*95*23 | 0.597 |
| 32013 | 65*100*23 | 0.627 |
| 32014 | 70*110*25 | 0.972 |
| 32015 | 75*115*25 | 0.875 |
| 32016 | 80*125*29 | 1.26 |
| 32017 | 85*130*29 | 1.33 |
| 32018 | 90*140*32 | 1.66 |
| 32019 | 95*145*32 | 1.79 |
| 32020 | 100*150*32 | 1.87 |
| 32021 | 105*160*35 | 2.38 |
| 32022 | 110*170*38 | 3.01 |
| 32024 | 120*180*38 | 3.3 |
| 32026 | 130*200*45 | 4.91 |
| 32028 | 140*210*45 | 5.21 |
| 32030 | 150*225*48 | 6.47 |
| 32032 | 160*240*51 | 7.69 |
| 32034 | 170*260*57 | 10.2 |
| 32036 | 180*280*64 | 13.5 |
| 32038 | 190*290*64 | 15.3 |
| 32040 | 200*310*70 | 18.6 |
| 32048 | 240*360*76 | 25.8 |
| 32052 | 260*400*87 | 37.4 |
| 32064 | 320*480*100 | 59.2 |
| 33005 | 25*47*15 | 0.131 |
| 33006 | 30*55*20 | 0.208 |
| 33007 | 35*62*21 | 0.259 |
| 33008 | 40*68*22 | 0.322 |
| 33009 | 45*75*24 | 0.414 |
| 33010 | 50*80*24 | 0.452 |
| 33011 | 55*90*27 | 0.651 |
| 33012 | 60*95*27 | 0.713 |
| 33013 | 65*100*27 | 0.725 |
| 33014 | 70*110*31 | 1.07 |
| 33015 | 75*115*31 | 1.18 |
| 33016 | 80*125*36 | 1.65 |
We also provide Double Row and Four Row Taper Roller Bearings:
* Other models,please contact with us.
