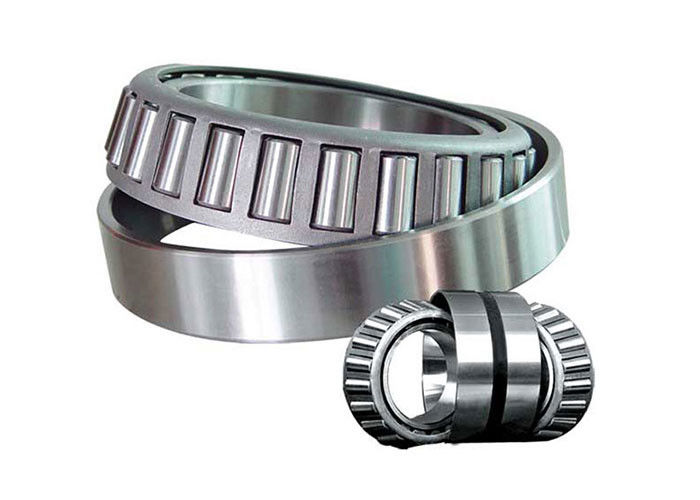

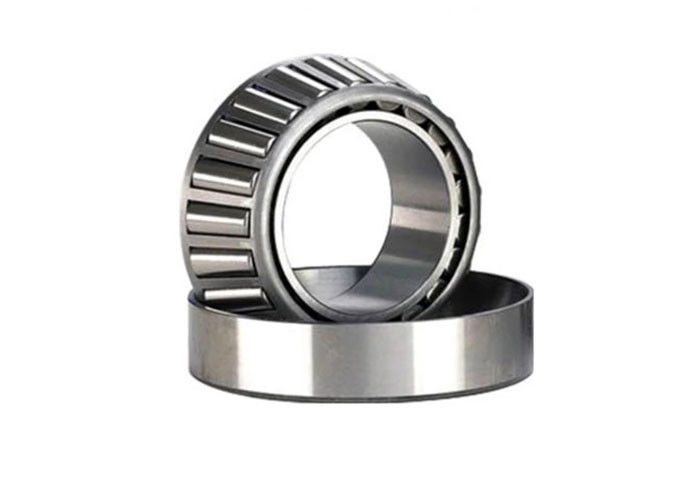

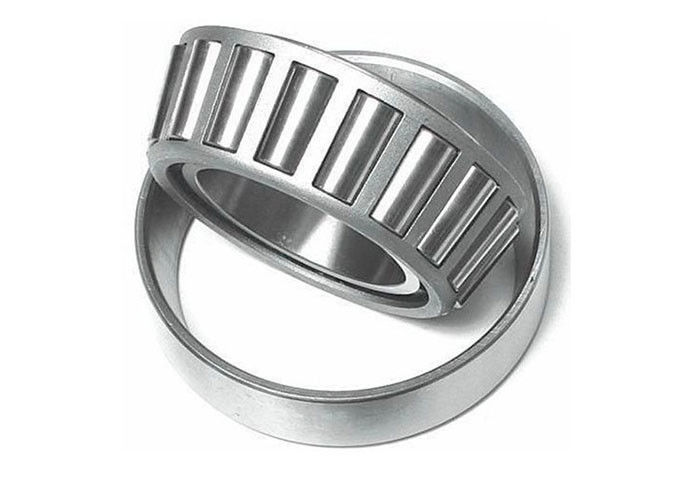

Chrome Steel Taper Roller Bearing 30217 85*150*30.5 Mm For Engine Motors Long Life

Chrome Steel Taper Roller Bearing 30217 85*150*30.5 Mm For Engine Motors Long Life

  • Chrome Steel Taper Roller Bearing 30217 85*150*30.5 Mm For Engine Motors Long Life
  • Chrome Steel Taper Roller Bearing 30217 85*150*30.5 Mm For Engine Motors Long Life
  • Chrome Steel Taper Roller Bearing 30217 85*150*30.5 Mm For Engine Motors Long Life
  • Chrome Steel Taper Roller Bearing 30217 85*150*30.5 Mm For Engine Motors Long Life
Chrome Steel Taper Roller Bearing 30217 85*150*30.5 Mm For Engine Motors Long Life
Product Details:
Place of Origin: Shandong, China (Mainland)
Brand Name: ZH
Certification: ISO9001:2008
Model Number: 30217
Payment & Shipping Terms:
Minimum Order Quantity: 1~1000 piece
Price: USD 4.5-4.7 piece
Packaging Details: regular packaging/according client's requst
Delivery Time: 2-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 piece days
Contact Now
Detailed Product Description
Material: Bearing Steel Chrome Steel Thickness: 72mm
Design: Separable Design Bore Size: 90mm
Outside Dimension: 150mm Feature: Long Life
Oil Lubrication: 2400r/min Application: Machinery
High Light:

taper roller bearing assembly

,

tapered roller bearings

Chrome Steel Taper Roller Bearing 30217 85*150*30.5 Mm For Engine Motors With Long Life



Tapered Roller Bearing



Tapered roller bearings are separable bearings, the inner and outer rings have a tapered raceway. This kind of bearing according to the number of columns loaded roller into single row, double row and four-row tapered roller bearings, such as different types of structures. Single row tapered roller bearings can bear radial load and axial load in one direction. When the bearing radial load, will produce an axial force component, so when you need another can withstand axial force in the opposite direction of the bearing to be balanced.

Tapered roller bearings have tapered inner and outer ring raceways, tapered rollers arranged between the two. All conical surface projection lines in the bearing axis with a little together. This design makes tapered roller bearings particularly suitable for bear compound (radial and axial) loads. Most of the axial load bearing capacity is determined by the contact angle α; α angle greater axial load capacity is higher. Angle size to calculate the coefficient of e said; e larger the contact angle the greater the bearing axial load greater applicability.
Tapered roller bearings are usually separated type, that is with roller and cage assembly of inner components of the cone with tapered outer ring (outer ring) installed separately.
Tapered roller bearings are widely used in automotive, mill, mining, metallurgy, plastics machinery and other industries.



Model Old model Size mm Weight kg
30211bearing 7211E 55×100×22.75 0.705
30212bearing 7212E 60×110×23.75 0.886
30213bearing 7213E 65×120×24.75 1.160
30214bearing 7214E 70×125×26.25 1.250
30214/Tbearing 7214M 70×125×26.25 1.290
30215bearing 7215E 75×130×27.25 1.340
30215/S0bearing 7215ET 75×130×27.25 1.340
30216bearing 7216E 80×140×28.25 1.650
30217bearing 7217E 85×150×30.5 2.030
30218bearing 7218E 90×160×32.5 2.560
30219bearing 7219E 95×170×34.5 3.170
30220bearing 7220E 100×180×37 3.730
30221bearing 7221E 105×190×39 4.401
30222bearing 7222E 110×200×41 5.270
30224bearing 7224E 120×215×43.5 6.210







Packaging & Delivery

Packaging Details

Usually carton packaging, or PVC bag with a label. Specifically according to the customer to your needs, you can use any packaging situation

Delivery Time

1-5 days of stock, 20-30 days of make large order



Taper Roller Bearing Advantage:
1: Suitable for the radial and axial loaded.
2: With low wear rate and long life service.
3: Can be used over a large temperature range.
4: Allows maintenance free and long life operation.
5: Suitable for dirty corrosion impact load and edge loading.
6: The base material provided a good shock absorbing capacity.
7: With low and smoothly coefficient of friction and without stick slip effects.
