Place of Origin: | CHINA |
Brand Name: | ZH |
Model Number: | YRT100 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotiable |
Packaging Details: | Carton |
Delivery Time: | 2-7 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 Pieces |
Stock: | Extensive | Model: | YRT100 |
---|---|---|---|
Size(d*D*B): | 100x185x38mm | Type: | Crossed Roller Bearings |
Structure: | Spherical | Material: | GCR15 |
Feature: | High Precision And Load Capacity | Precision Industries: | P0 P6 P5 P4 |
Applicable Industries: | Coal Mines Railways Petroleum Printing Power Plantss And Other Industrial Equipment | Packing: | Standard Export Package,Clients Requested |
After-sales Service: | Online Support, Professional Service |

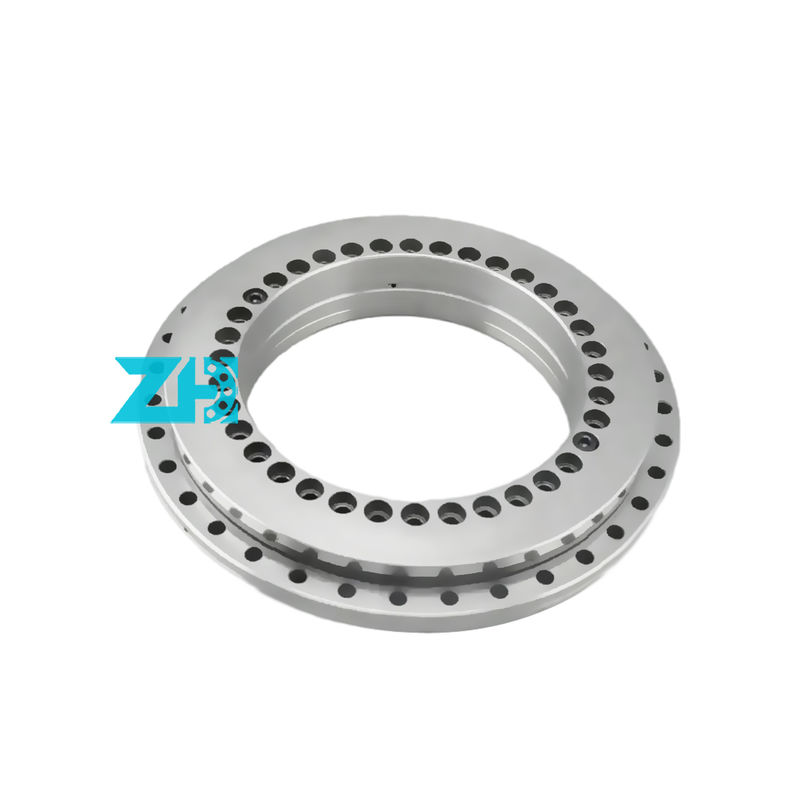

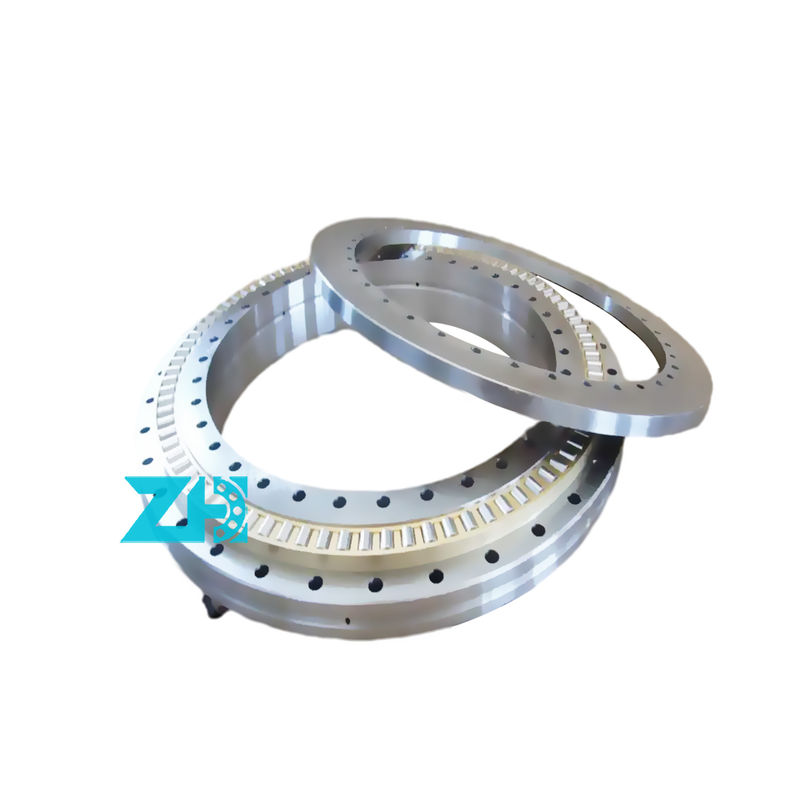

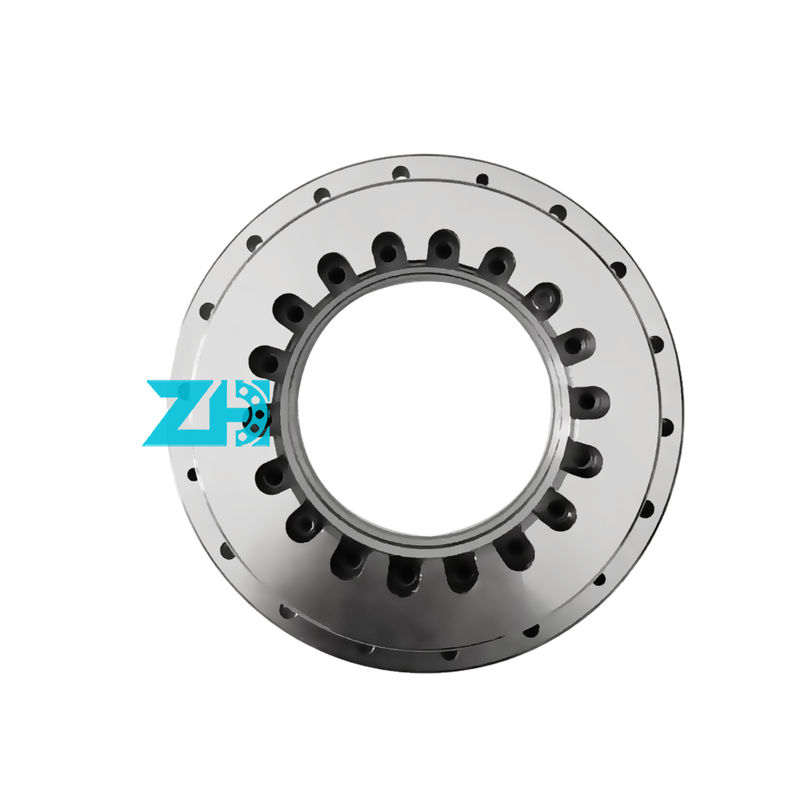

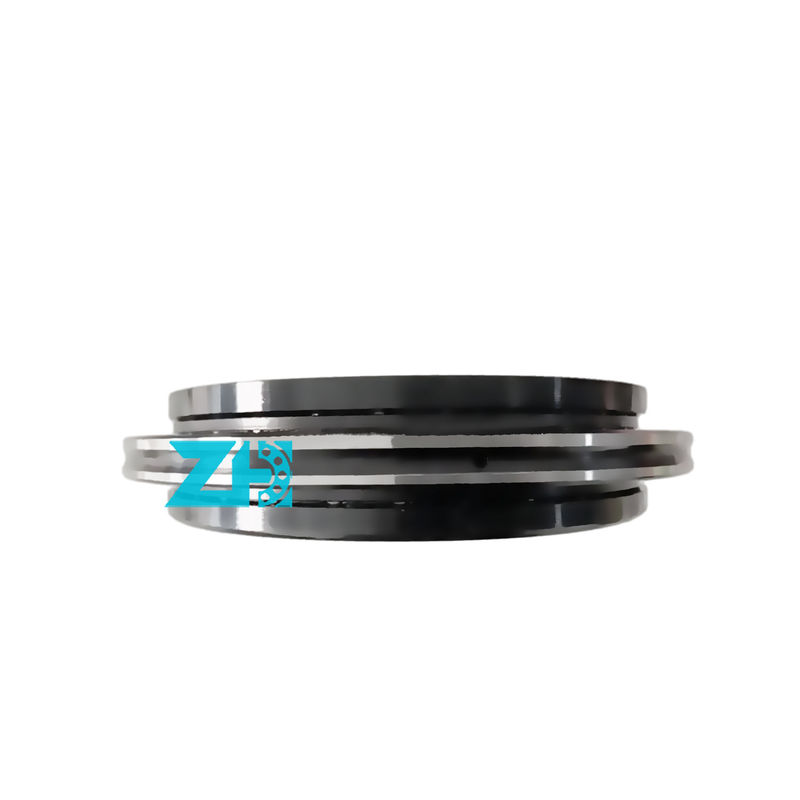

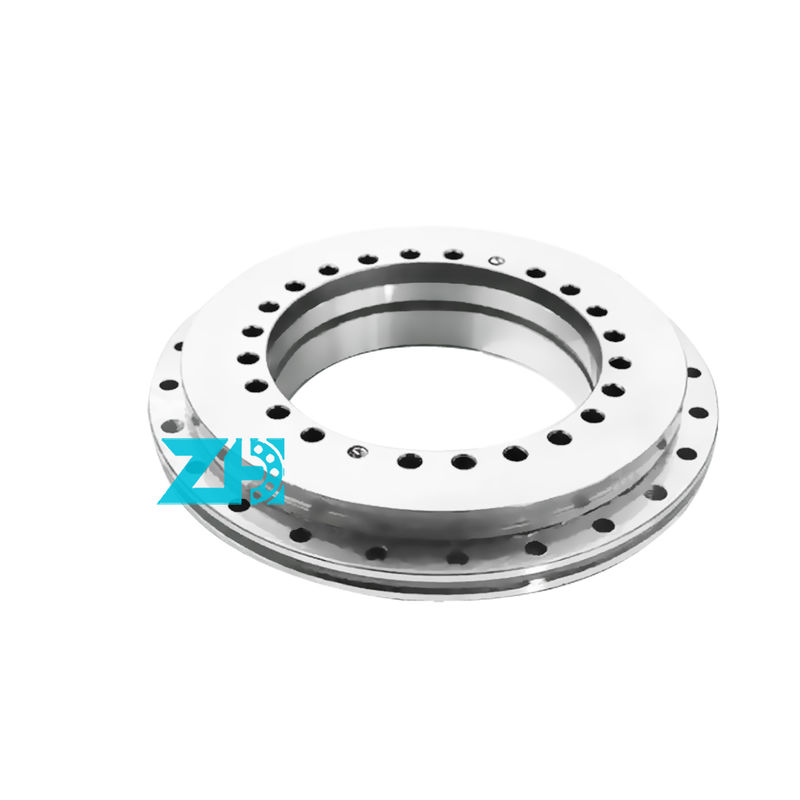

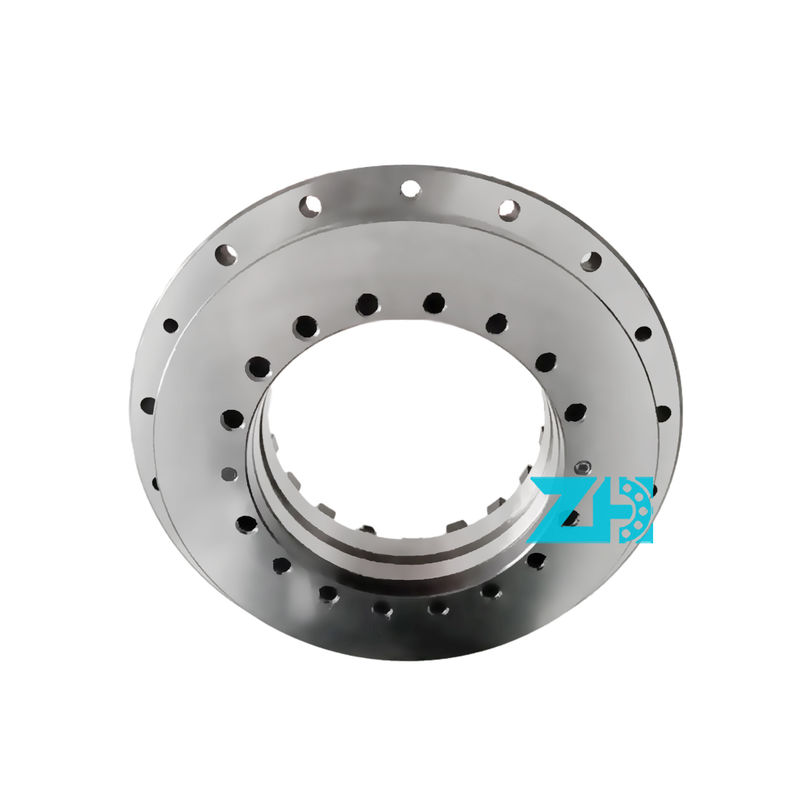

Crossed Roller Bearings YRT100 100x185x38mm
single-row crossed roller bearing slewing ring
Technical Parameters:
model |
YRT100 |
Size(d*D*B) |
100x185x38mm |
Type | Crossed Roller Bearings |
Precision | P0/P6/P5/P4 |
Feature |
Long Life,Stable Performance and Durable |
Material | GCR15 |
After-sales Service |
Online Support Professional Service |
Stock |
Sufficient |
Product Description
Crossed roller bearings, also known as crossed roller slewing bearings or crossed roller slide bearings, are a specialized type of rolling element bearing. They are designed to handle both radial and axial loads while providing high rotational accuracy and stiffness.
The contact angle refers to the angle formed between the line connecting the points where the roller contacts the raceway and the normal line to the raceway surface. In crossed roller bearings, the contact angle is typically 90 degrees, ensuring a point contact between the rollers and the raceway. This point contact allows for high load capacity and rotational accuracy.
The cage, also known as a separator, is a component that separates and maintains a uniform spacing between the rollers in a crossed roller bearing. It prevents the rollers from contacting each other, reduces friction, and ensures smooth rolling motion. Different cage designs, such as solid cages or segmented cages, may be used based on the specific application requirements.
Other bearing model catalog:
Type | Main dimensions | Basic load rating | |||
(Radial) | |||||
Inner diameter | Outer diameter | Width | Dynamic rating | Static rating | |
d | D | H | C | C0 | |
mm | mm | mm | kN | kN | |
RB 2008 | 20 | 36 | 8 | 3.23 | 3.1 |
RB 2508 | 25 | 41 | 8 | 3.63 | 3.83 |
RB 3010 | 30 | 55 | 10 | 7.35 | 8.36 |
RB 3510 | 35 | 60 | 10 | 7.64 | 9.12 |
RB 4010 | 40 | 65 | 10 | 8.33 | 10.6 |
RB 4510 | 45 | 70 | 10 | 8.62 | 11.3 |
RB 5013 | 50 | 80 | 13 | 16.7 | 20.9 |
RB 6013 | 60 | 90 | 13 | 18 | 24.3 |
RB 7013 | 70 | 100 | 13 | 19.4 | 27.7 |
RB 8016 | 80 | 120 | 16 | 30.1 | 42.1 |
RB 9016 | 90 | 130 | 16 | 31.4 | 45.3 |
RB 10016 | 100 | 140 | 16 | 31.7 | 48.6 |
RB 10020 | 100 | 150 | 20 | 33.1 | 50.9 |
RB 11012 | 110 | 135 | 12 | 12.5 | 24.1 |
RB 11015 | 110 | 145 | 15 | 23.7 | 41.5 |
RB 11020 | 110 | 160 | 20 | 34 | 54 |
RB 12016 | 120 | 150 | 16 | 24.2 | 43.2 |
RB 12025 | 120 | 180 | 25 | 66.9 | 100 |
RB 13015 | 130 | 160 | 15 | 25 | 46.7 |
RB 13025 | 130 | 190 | 25 | 69.5 | 107 |
RB 14016 | 140 | 175 | 16 | 25.9 | 50.1 |
RB 14025 | 140 | 200 | 25 | 74.8 | 121 |
RB 15013 | 150 | 180 | 13 | 27 | 53.5 |
RB 15025 | 150 | 210 | 25 | 76.8 | 128 |
RB 15030 | 150 | 230 | 30 | 100 | 156 |
RB 16025 | 160 | 220 | 25 | 81.7 | 135 |
RB 17020 | 170 | 220 | 20 | 29 | 62.1 |
RB 18025 | 180 | 240 | 25 | 84 | 143 |
RB 19025 | 190 | 240 | 25 | 41.7 | 82.9 |
RB 20025 | 200 | 260 | 25 | 84.2 | 157 |
RB 20030 | 200 | 280 | 30 | 114 | 200 |
RB 20035 | 200 | 295 | 35 | 151 | 252 |
RB 22025 | 220 | 280 | 25 | 92.3 | 171 |
RB 24025 | 240 | 300 | 25 | 68.3 | 145 |
RB 25025 | 250 | 310 | 25 | 69.3 | 150 |
RB 25030 | 250 | 330 | 30 | 126 | 244 |
RB 25040 | 250 | 355 | 40 | 195 | 348 |
RB 30025 | 300 | 360 | 25 | 76.3 | 178 |
RB 30035 | 300 | 395 | 35 | 183 | 367 |
RB 30040 | 300 | 405 | 40 | 212 | 409 |
Support and Services:
Mode of transport ...within 3 days after received the payment , by air or by express or by sea on the basis of thequantity and emergency circumstances.
By Couriers – DHL,UPS, FEDEX, TNT are the main courier companies we are cooperated,
By Air – Delivery from the Guangzhou air port to customer's destination city air port.
By Sea – Delivery from the Huangpu port
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! !
