Place of Origin: | CHINA |
Brand Name: | ZH |
Model Number: | f-805015 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotiable |
Packaging Details: | Carton |
Delivery Time: | 2-7 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 Pieces |
Stock: | Abundant | Model: | F-805015 |
---|---|---|---|
Size(d*D*B): | 70x165x57mm | Type: | Taper Roller Bearing |
Structure: | Spherical | Material: | GCR15 |
Feature: | Low Voice&Long Service Life | Precision Industries: | P0 P6 P5 P4 |
Applicable Industries: | Coal Mines Railways Petroleum Printing Power Plantss And Other Industrial Equipment | Packing: | Standard Export Package,Clients Requested |
After-sales Service: | Online Support, Professional Service |

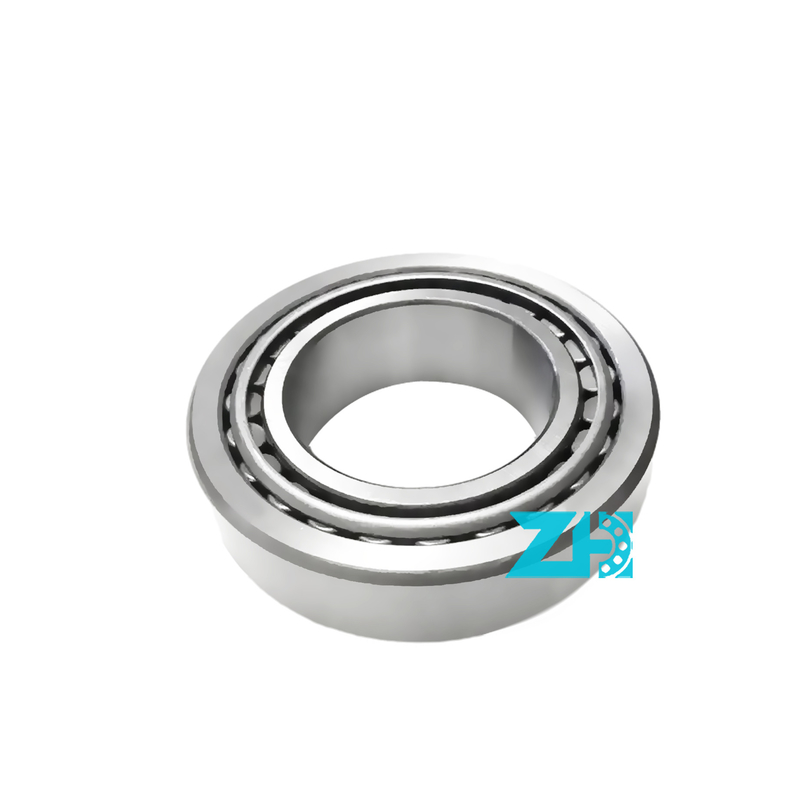

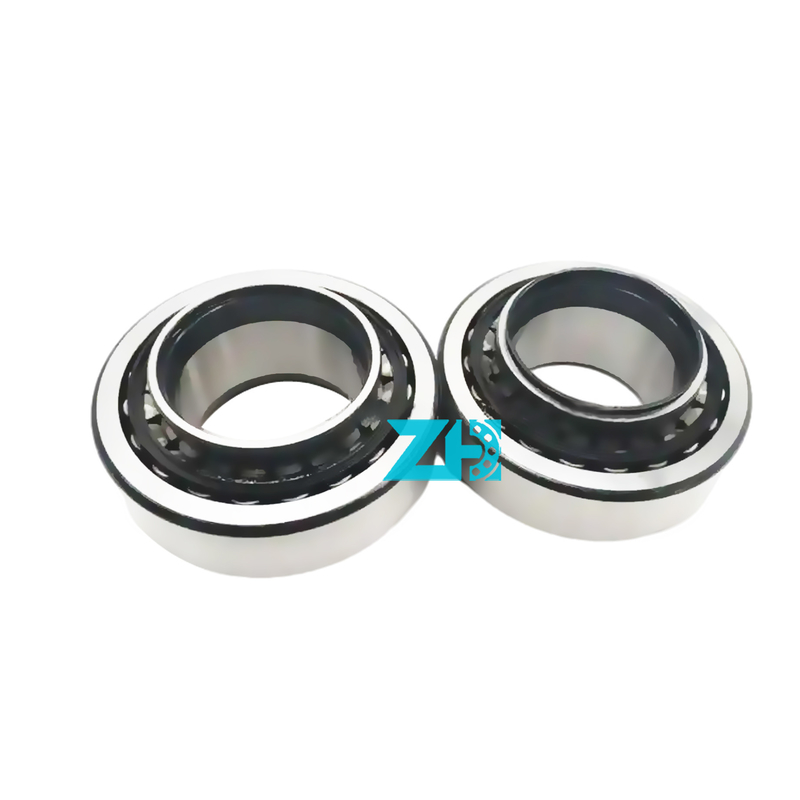

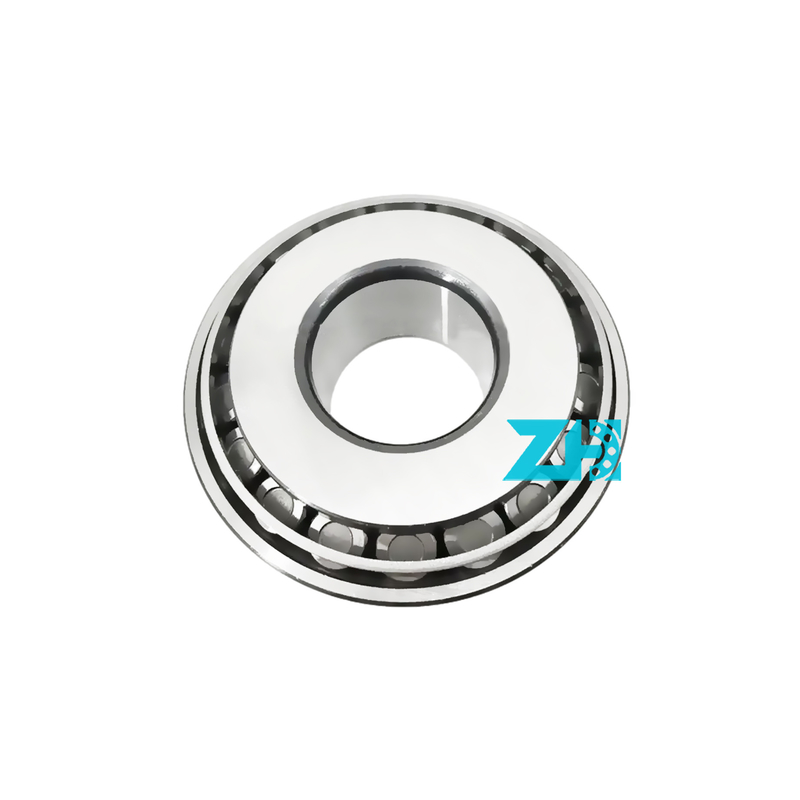

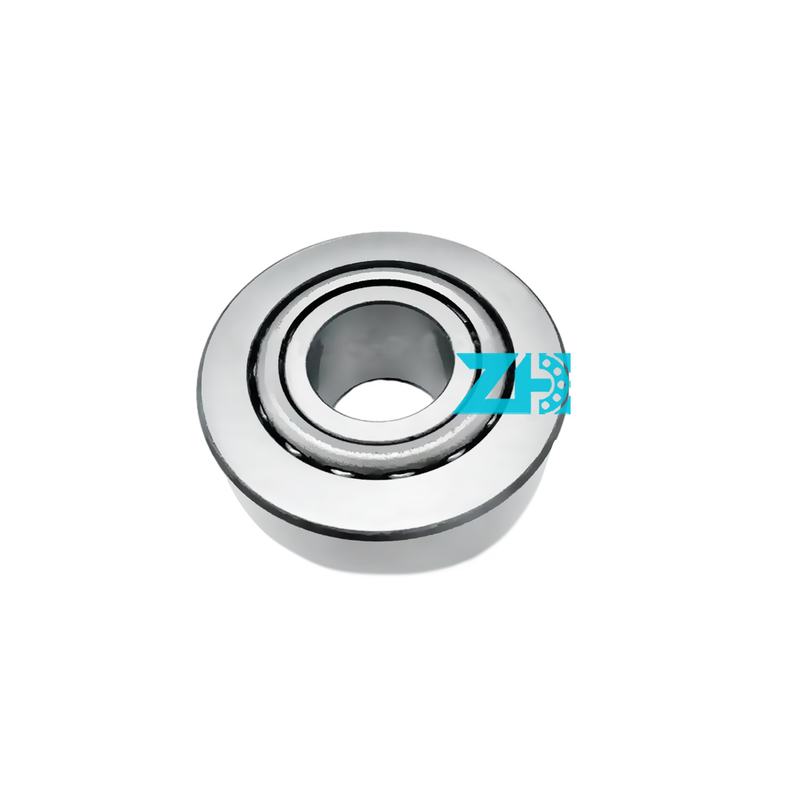

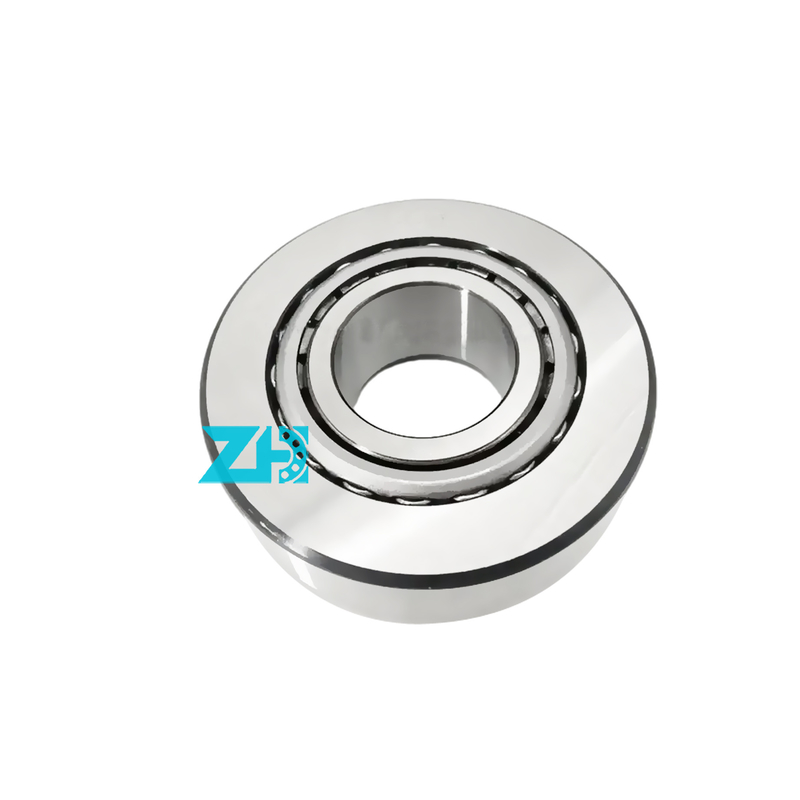

Taper Roller Bearing f-805015 size 70x165x57mm spare parts truck bearing Factory supply
Technical Parameters:
model |
f-805015 |
Size(d*D*B) |
70x165x57mm |
Type | Taper Roller Bearing |
Precision | P0/P6/P5/P4 |
Feature |
Long Life,Stable Performance and Durable |
Material | GCR15 |
After-sales Service |
Online Support Professional Service |
Stock |
Sufficient |
Product Description
A taper roller bearing, also known as a tapered roller bearing, is a type of rolling element bearing that can accommodate both radial and axial loads. It consists of an outer ring, an inner ring, tapered rollers, and a cage that holds the rollers in place. Taper roller bearings are designed to handle high radial and axial (thrust) loads and are commonly used in applications where heavy loads and high rotational speeds are involved.
Tapered roller bearings require proper mounting and adjustment to ensure optimal performance. The axial position of the bearing can be adjusted by tightening or loosening the bearing's mounting arrangement, such as using locknuts or adjusting spacers. This adjustment allows for precise control of the bearing's clearance, preload, and axial play.
Tapered roller bearings are available in single-row and double-row configurations. Single-row bearings have one set of tapered rollers and are primarily used for moderate radial and thrust loads. Double-row bearings have two sets of tapered rollers arranged in opposing directions, providing increased load-carrying capacity and enhanced rigidity.
Other bearing model catalog:
Cone Bearing | Cup Bearing | d(mm) | D(mm) | T(mm) |
EE107060 | 107105CD | 152.4 | 268.3 | 160.3 |
EE450601 | 451215CD | 152.4 | 308.0 | 200.0 |
HH234048 | HH234011CD | 152.4 | 308.0 | 200.0 |
HH234049 | HH234011CD | 152.4 | 308.0 | 200.0 |
81606 | 81963CD | 154.0 | 244.5 | 108.0 |
46780 | 46720CD | 158.8 | 225.4 | 85.7 |
81629 | 81963CD | 160.0 | 244.5 | 108.0 |
81630 | 81963CD | 160.0 | 244.5 | 108.0 |
HM237532 | HM237510CD | 160.3 | 288.9 | 142.9 |
46790 | 46720CD | 165.1 | 225.4 | 85.7 |
67780 | 67720CD | 165.1 | 247.7 | 103.2 |
M235145 | M235113CD | 165.1 | 254.0 | 101.6 |
94649 | 94114CD | 165.1 | 288.9 | 142.9 |
HM237535 | HM237510CD | 165.1 | 288.9 | 142.9 |
46792 | 46720CD | 166.7 | 225.4 | 85.7 |
67782 | 67720CD | 168.3 | 247.7 | 103.2 |
M235149 | M235113CD | 170.0 | 254.0 | 101.6 |
94675 | 94114CD | 171.5 | 288.9 | 142.9 |
67786 | 67720CD | 174.6 | 247.7 | 103.2 |
67787 | 67720CD | 174.6 | 247.7 | 103.2 |
94687 | 94114CD | 174.6 | 288.9 | 142.9 |
HM237542 | HM237510CD | 174.6 | 288.9 | 142.9 |
36990 | 36920CD | 177.8 | 227.0 | 66.7 |
67790 | 67720CD | 177.8 | 247.7 | 103.2 |
67791 | 67720CD | 177.8 | 247.7 | 103.2 |
M238840 | M238810CD | 177.8 | 269.9 | 119.1 |
94700 | 94114CD | 177.8 | 288.9 | 142.9 |
HM237545 | HM237510CD | 177.8 | 288.9 | 142.9 |
HM237545H | HM237510CD | 177.8 | 288.9 | 142.9 |
EE222070 | 222127CD | 177.8 | 320.7 | 185.7 |
H239640 | H239612CD | 177.8 | 320.7 | 185.7 |
93708 | 93127CD | 180.0 | 317.5 | 146.1 |
67883 | 67820CD | 184.2 | 266.7 | 103.2 |
67884 | 67820CD | 187.3 | 266.7 | 103.2 |
M238849 | M238810CD | 187.3 | 269.9 | 119.1 |
H239649 | H239612CD | 187.3 | 320.7 | 185.7 |
67885 | 67820CD | 190.5 | 266.7 | 103.2 |
93750 | 93127CD | 190.5 | 317.5 | 146.1 |
EE420751 | 421451CD | 190.5 | 368.3 | 193.7 |
67887 | 67820CD | 192.1 | 266.7 | 103.2 |
LM739749 | LM739710CD | 196.9 | 257.2 | 85.7 |
Support and Services:
Mode of transport ...within 3 days after received the payment , by air or by express or by sea on the basis of thequantity and emergency circumstances.
By Couriers – DHL,UPS, FEDEX, TNT are the main courier companies we are cooperated,
By Air – Delivery from the Guangzhou air port to customer's destination city air port.
By Sea – Delivery from the Huangpu port
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! !
Miss Ashley
Business Phone:+8618520363009
WhatsApp:+8618520363009
WeChat:+86 18520363009
Email:gzzhbearing@163.com
Welcome your consultation, if you have any questions, please feel free to contact Ashley.
Contact Person: Mr. Xiao
Tel: +8613561495066
