3434301200 Front Axle Wheel Hub Pillow Ball Bearing Size 120x175x123mm

Product Details:

Place of Origin:	Shandong
Brand Name:	ZH
Model Number:	3434301200

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	carton
Delivery Time:	2-7days
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000pcs

Contact Now

Detailed Product Description

Inner Diameter:	120mm	Material:	Steel
Outer Diameter:	175mm	Precision Rating:	P0 P6 P5 P4 P2
Type:	Pillow Ball Bearing	Width:	123mm
High Light:	Wheel Hub Pillow Ball Bearing , 3434301200 Pillow Ball Bearing

3434301200 Front Axle Wheel Hub Pillow Ball Bearing Size 120x175x123mm

Name: 3434301200 Front Axle Wheel Hub Pillow Ball Bearing Size 120x175x123mm
Brand: ZH
SKU: 3434301200
Rating: 4.5 (116 reviews)

Details of product

This bearing consists of an inner ring, an outer ring and tapered rolling elements. Due to their designed geometry, tapered roller bearings can accommodate combined loads (axial and radial). Additionally, this design allows rolling motion without the rollers slipping off the tracks of the outer and inner rings. The contact angle of tapered roller bearings on the rolling track is variable, which in each case offsets the applied axial and radial load ratios; at larger angles, the ability to withstand axial loads is greater. Landlion has a wide range of tapered roller bearings consisting of removable elements, making them easy to adjust for the appliexcavatorion. The most popular appliexcavatorions for this bearing type are: Light duty, industrial and agricultural vehicles Hub transmissions (gearboxes and differentials) Machine tool spindles PTOs

bearing	3434301200
refer to	set 1372
Types of	Differential F-Box Rebuild Kit rear axle
appliexcavatorion	Passenger wheel hubs. Automobile, truck parts, wheel hubs
size	120x175x123mm
weight	7.2 kg
in stock	129 pieces
wh sApp	+86 18620602705

Truck Wheel Bearing F-566426.H195 as shown below

Bearing number	Main Dimensions (mm)				Integrated Seal Type	mass (kg)
Bearing number	d	D	B	B1	Integrated Seal Type	refer to
F-803194.TR2U1	78	130	90	90	yes	4.45
BTH-0018A (VKBA5314)	68	127	115	115	yes	6.5
805003a.h195	82	140	115	115	yes	6.45
DU60108-8CS32	60	108	75	75	yes	2.85
BTH-0025	90	160	125	125	yes	10.2
566425.H195	93.8	148	135	135	yes	6
566426.H195	68	125	115	115	yes	4.81
804162A	110	170	146	146	yes	8.53
584734.H195	82	196	110	110	yes	15.3
801974AE.H195	70	196	139.5	139.5	yes	10
201042	50	140	95	95	yes	5.473
201043	70	194	112	112	yes	5
201044	65	194	113	113	yes	11.87
571762.01.H195	68	127.3	115	115	yes	4.9
805012.06.H195	90	160	125	125	yes	10.2
805011C	82	140	110	110	yes	6.77
803 750B	105	160	140	140	yes	6.86
566283.H195	100	148	135
566427.H195	58	110	115	115	yes	3.6
566834.H195	58	110	115	115	yes	3.6
566074.H195	70	125	114	114	yes	7
566193.H195	82	138	130	130	yes	7
805092C	78	130	90.5	90.5	yes	4.65
201082	55	145	95	95	yes	6.06
570530.H195	88	138	120	120	yes	7

Packaging & delivery

1. Packaging Details: Packing of 566074. H195 Vkba5453 1801592 Set1346 F200016 Hds228 1691621 Truck Wheel Hub Bearing Plastic Bags+Carton Boxes+Wooden Pallet. Packaged can also be customized.

3. Port: QINGDAO, TIANJIN, SHANGHAI, NINGBO, GUANGZHOU

4. Lead time:

Quantity(pieces)	1 - 2	3 - 20	21 - 100	>100
Lead time (days)	2	5	7	To be negotiated

Picture shows

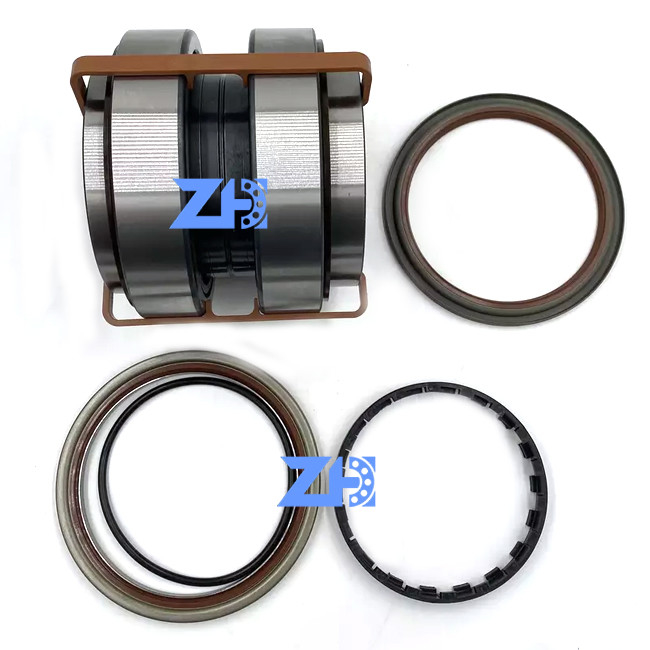

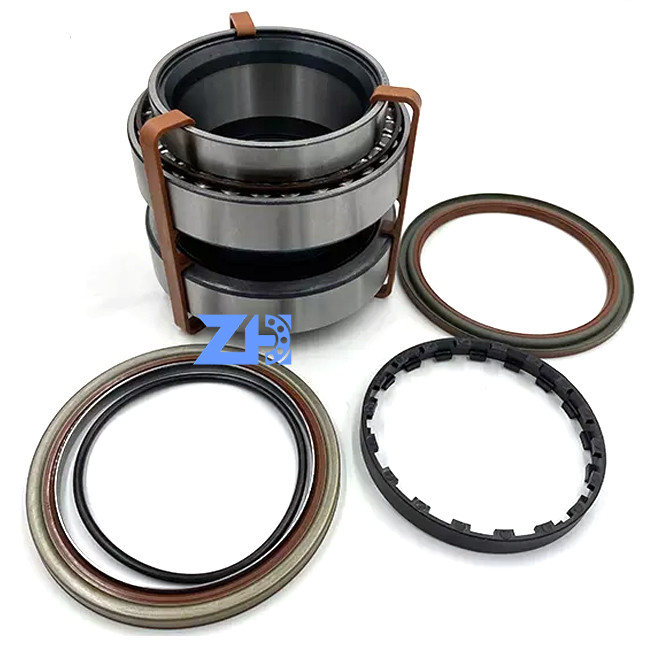

3434301200 Front Axle Wheel Hub Pillow Ball Bearing Size 120x175x123mm 2

FQA

1,What about the MOQ?Can you accept sample order?
------Our company MOQ is 1pc,we can accept sample order.

2,Can you accept OEM/ODM?
------Yes,we can.Customizing according to your requirement or drawing.

3,Do you supply door to door service?
------By air or express(DHL,FEDEX,EMS etc.)

4,Could you tell me the materials of your bearings?
------ Chrome steel, carbon steel, and stainless steel, ceramic and plastic material.

5, Your company is a factory or trading company?
------ We have our own factory,also doing trade.
