| Place of Origin: | Shandong |
| Brand Name: | ZH |
| Model Number: | 23026CC |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 2-7days |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P, L/C |
| Supply Ability: | 2000pcs |
| Bearing Type: | Spherical Roller Bearing | Bore Diameter: | 130 Mm |
|---|---|---|---|
| Cage Type: | Brass/Steel | Material: | GCr15/GCr15SiMn |
| Number Of Rows: | Double Row | Outside Diameter: | 200 Mm |
| Width: | 52 Mm | ||
| High Light: | Misalignment Deflections Spherical Roller Bearing,23026CC/W33 Spherical Roller Bearing |
||

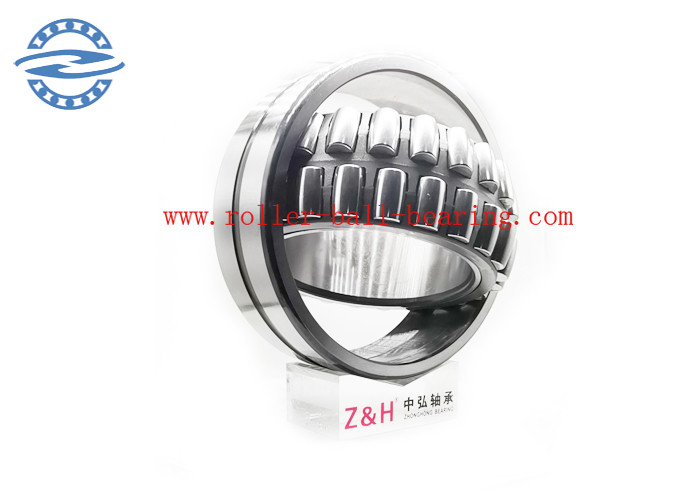

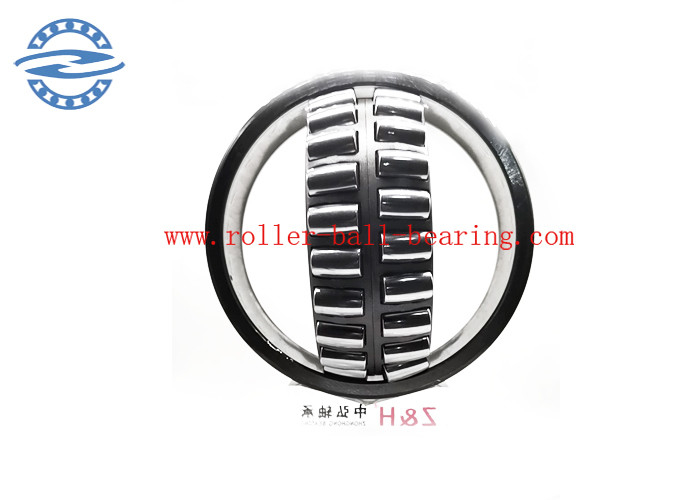

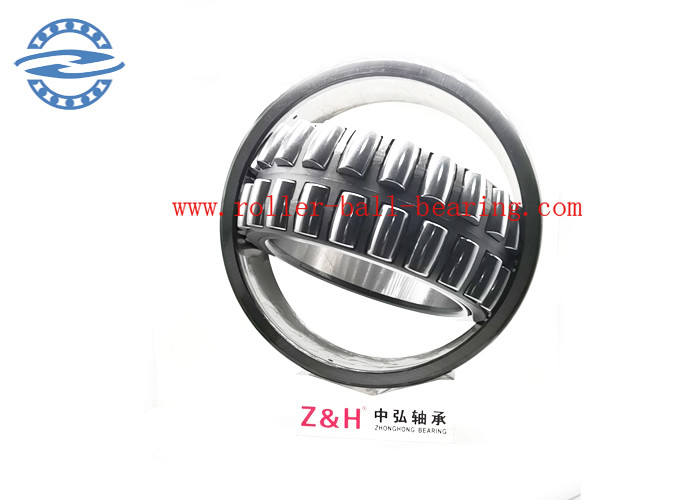

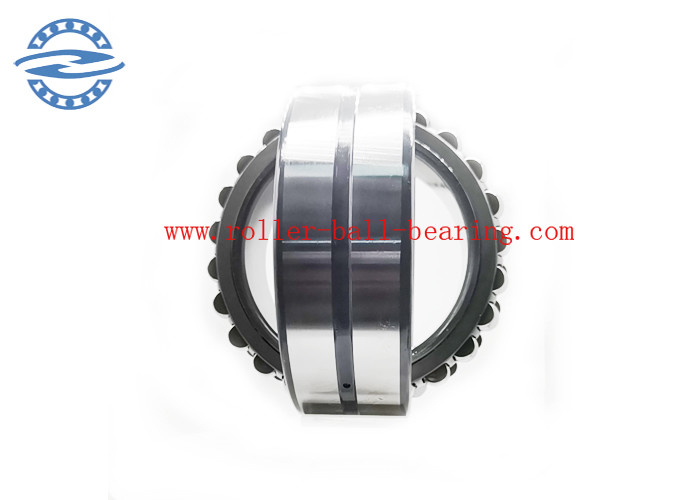

The 23026CC is a spherical roller bearing with an open design. This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc.
1. Self-aligning
Spherical roller bearings accommodate misalignment between the shaft and housing without increasing friction or reducing bearing service life.
2. Very high load carrying capacity
Optimized internal geometry within the available cross section provides maximum radial and axial load carrying capacity.
3. Robust
Insensitive to misalignment caused by shaft or housing deflections as a result of heavy loads.
4. Easily fitted for loads in all directions
The bearings are non-separable and ready to install, having a choice of mounting methods.
| Features: | Long Life Low Noise | Product Name: | Spherical Roller Bearing |
|---|---|---|---|
| Structure: | CC CA CAE MB E | Size: | 130×200×52MM |
| Weight: | 5.8kg | Material: | GCr15/GCr15SiMn |
| Cage: | Brass/Steel | Hardness: | HRC60-HRC64 |
| Grade: | P0 P6 P5 P4 | Clearance: | C0 C3 C4 |
| Lubriexcavatorion: | Oil Or Grease | ||
| High Light: |
GCr15SiMn Spherical Roller Bearing,23026CC/W33 Spherical Roller Bearing ,Oil Lubriexcavatorion Spherical Roller Bearing |
||
| Number of rows | 2 |
| Locating feature, bearing outer ring | Without |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Radial internal clearance | CN |
| Tolerance class for dimensions | Normal |
| Tolerance class for run-out | P5 |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | With |
| Candidate for remanufacturing | Yes mm |
|
Basic dynamic load rating |
C |
452 kN |
|---|---|---|
|
Basic static load rating |
C0 |
610 kN |
|
Fatigue load limit |
Pu |
61 kN |
|
Reference speed |
|
2 800 r/min |
|
Limiting speed |
|
3 600 r/min |
|
Limiting value |
e |
0.23 |
|
Axial load factor |
Y1 |
2.9 |
|
Axial load factor |
Y2 |
4.4 |
|
Axial load factor |
Y0 |
2.8 |
Q1.What’s your advantage? Why we choose you?
A:1)More than 10 Years experience of bearing production and R&D.We have the most professional techniques and team. More advantage in price.
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.
Q2.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
