Place of Origin: | CHINA |
Brand Name: | QIEAL ZH |
Model Number: | 207-18 HEX |
Certifiexcavatorion: | ISO-9001 |
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Packaging Details: carton; |
Delivery Time: | 2-5 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Money Gram |
Supply Ability: | 500 per day |
Weight: | 0,50 KGS | Hexagonal Bore [a: | 8 |
---|---|---|---|
Outer Diameter [D: | 8 | Inner Ring Width [B: | 8 |
Outer Ring Width [C: | 8 | Packing: | Carton Packing |
Bore Type: | Hexagonal | Outer Ring Shape: | Spherical |
High Light: | Pillow Block Insert Ball Bearing,SB 207-18 HEX Insert Ball Bearing |

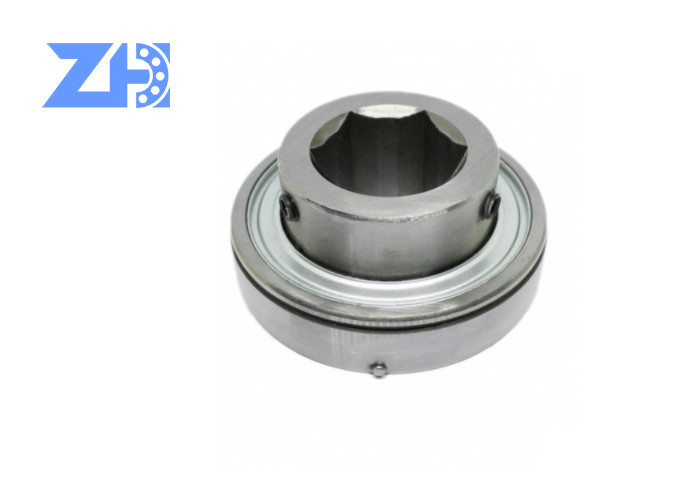

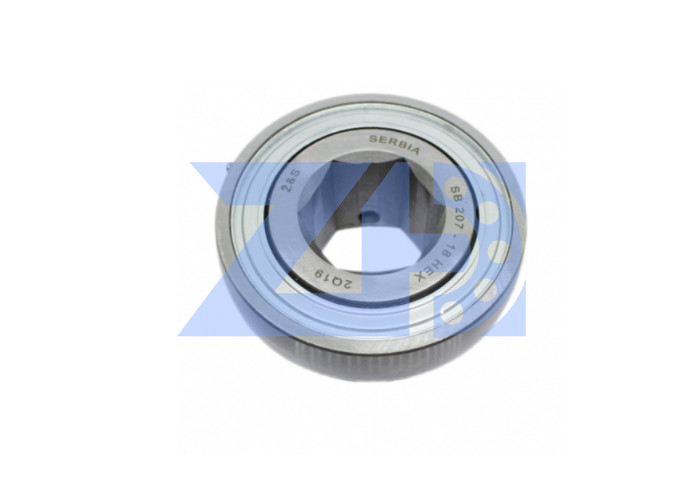

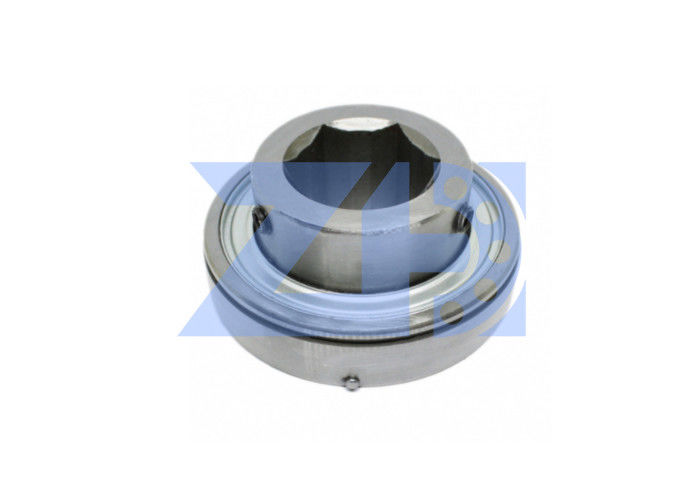

Insert Ball Bearing SB 207-18 HEX ball bearing pillow block insert ball bearing
Insert ball bearing SB 207-18 HEX
Round ball Agricultural radial ball bearings are with particularly thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions.
The outer rings have a crowned or cylindrical outside surface. Designs with a crowned outside surface are used where they are inclined in relation to the mating track and edge stresses must be avoided.

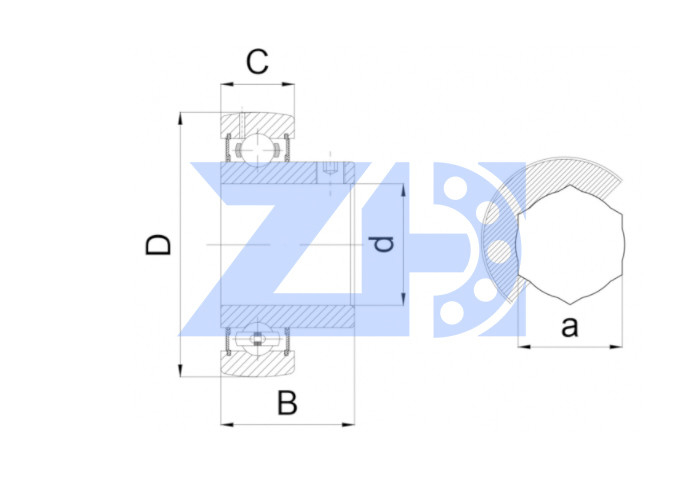

DIMENSIONS:
BORE: 1" Hex
O.D. 2.44" Flat
IR Width: .94"
OR Width: .63"
BEARING P/N | Size(mm) | |||
d | D | B | C | |
805093 | 12 | 35 | 15.4 | 10 |
8267/1/2 | 12.7 | 34.925 | 17.463 | 11.112 |
8267/5/8 | 15.875 | 34.925 | 17.463 | 11.112 |
202NPP9 | 12.8 | 38.1 | 11 | 11 |
202KRRAH | 15 | 35 | 14.4 | 11 |
99502H | 15.875 | 34.925 | 11 | 11 |
203KRR2 | 16.256 | 40 | 18.25 | 12 |
203KRR3 | 15.951 | 50.8 | 15 | 15 |
203KRR5 | 13.081 | 40 | 18.3 | 12 |
203KRRAH02 | 17 | 40 | 18.25 | 12 |
204KRR2 | 20 | 47 | 17.7 | 14 |
205KRR2 | 25 | 52 | 21 | 15 |
AG2565 | 16.07 | 53.08 | 19.5 | 17.1 |
SC203 | 17 | 40 | 12 | 12 |
B17-99D | 17 | 52 | 17 | 17 |
Z9504AB | 19.05 | 45.212 | 15.494 | 15.494 |
Z9504-2RST | 19.05 | 45.212 | 15.494 | 15.494 |
559339 | 19.05 | 52 | 21 | 21 |
304C3-H1 | 25.4 | 52 | 21 | 21 |
411280 | 30 | 72 | 28 | 25 |
K6205 | 25 | 52 | 15 | 15 |
K6206 | 30 | 62 | 16 | 16 |
K6207 | 35 | 72 | 17 | 17 |
K6208 | 40 | 80 | 18 | 18 |
Bearing No. | Boundary dimensions | |||
d | D | B | C | |
5203KYY2 | 16.256 | 40 | 44 | 39 |
204RY2(838607A) | 16 | 45.225 | 18.67 | 15.94 |
5206KPP3 | 30.15 | 62 | 50 | 37 |
RX84 | 17.64 | 53.97 | 20.19 | 15.78 |
202NPP9 | 12.827 | 38.1 | 11 | 11 |
202RRE | 15 | 35 | 22.352 | 11 |
203JD | 17 | 40 | 14 | 12 |
203KRR3 | 15.951 | 50.8 | 15 | 15 |
203NPP9 | 15.9 | 40 | 12.95 | 12.95 |
Z9504-2RST | 19.05 | 45.225 | 15.494 | 15.494 |
Z9504AB | 19.06 | 45.225 | 15.494 | 15.494 |
204RR8 | 16.027 | 45.225 | 15.494 | 15.494 |
204RY2 | 16.027 | 45.225 | 18.669 | 15.494 |
205E-2RST | 19.202 | 52 | 21.107 | 15 |
205KP6 | 19.202 | 52 | 23.393 | 17.78 |
205KRR6 | 13.081 | 52 | 34.925 | 15 |
205KRR7 | 13 | 52 | 38.1 | 15 |
G205PPB7 | 23.813 | 52 | 35 | 15 |
205PPB7 | 23.813 | 52 | 35 | 15 |
205PP8 | 12.964 | 52 | 34.925 | 15 |
205PP9 | 19.202 | 52 | 34.925 | 15 |
205PP10 | 16 | 52 | 34.925 | 15 |
205PP12 | 16.129 | 52 | 38.1 | 15 |
206KRRB | 19.25 | 62 | 24 | 16 |
206PD2 | 31.75 | 65.088 | 18.524 | 17 |
207KYY | 35 | 72 | 25 | 17 |
FHR208-25CD | 39.688 | 80 | 30.2 | 18 |
W213-8445 | 55.575 | 120 | 55.55 | 28.905 |
88120-C4 | 20 | 47 | 20.8 | 14 |
88128R | 38.892 | 80 | 27.5 | 21 |
206GGH | 19.2 | 62 | 24 | 16 |
206KRD4 | 25 | 62 | 22.225 | 18 |
205GP | 16 | 53 | 19.4 | 18.2 |
205DDS3/4" | 19.05 | 53 | 19.4 | 18.2 |
205RVA | 19.2 | 52 | 21.03 | 15 |
Bearing packages :
1) Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2) Small sizes:Plastic Tube + Carton
3) Big sizes:Wooden Case
Appliexcavatorion for industrial bearings :
Widely used in metallurgy ,mining ,petroleum,chemical,coal,cement ,paper,windpower,heavy machinery ,enginnering machinery,port machinery and other industries.
a. Auto wheel hub, Auto engine, Auto axle
b. Agricultural machinery, Rotary plow bearings, Tractor, Water pump, Oil engine harvester, Seeder, Tricycle, Farm vehicle, Cultivator
c.Engineering machinery, Excavator, Dozer, Paver, Loader, Hoisting machinery, Piling soil machinery
d. Steel mill machinery, Oil field machinery, Motorship machinery
e. Hardware tool, Electric power tool, Household appliance industry
f. Electronic toys, Fitness equipment, Building machinery
g. Series Of Pumps, Antiseptic Pump, Water pump, Submersible pump, Sewage pump
Trading information :
Price terms | EXW FOB CNF CFR, CIF |
Payment terms | L/C ,T/T ,Western Union, Paypal |
Express way | DHL FEDEX TNT UPS |
Shipping port | shanghai ,qingdao ,nongbo, guangzhou |
Packing |
1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets |
