| Place of Origin: | CH |
| Brand Name: | ZH |
| Model Number: | 67885DW.67820.67820D |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | $10.00 |
| Packaging Details: | Negotiable |
| Delivery Time: | 5-8 work jobs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Piece/Pieces per Month Deep Groove Ball Bearing |
| Product Designations:: | 67885DW.67820.67820D | Inside Diameter:: | 190.5 Mm |
|---|---|---|---|
| Thickness:: | 188.912 Mm | Outside Diameter:: | 266.7 Mm |
| High Light: | Four Row Taper Roller Bearing,67885DW.67820.67820D Taper Roller Bearing,188.912Mm Thickness Taper Roller Bearing |
||

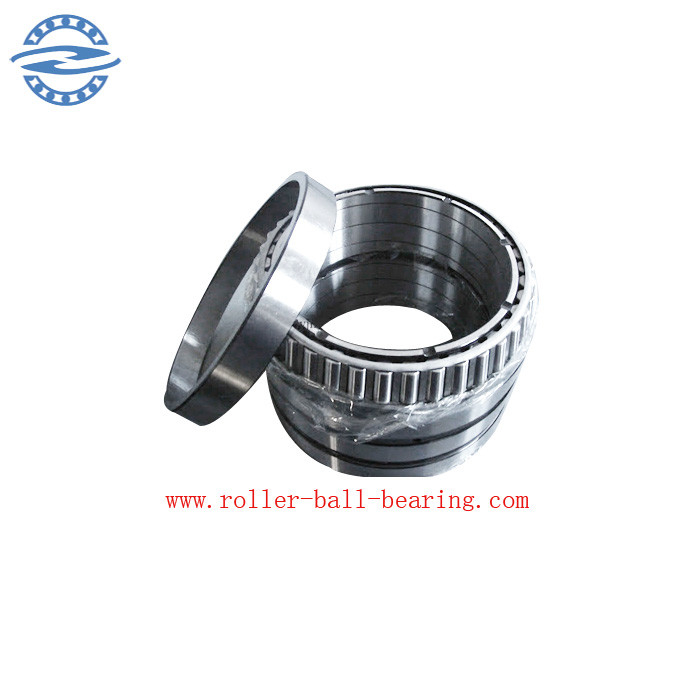

67885DW.67820.67820D Four Row Inch Taper Roller Bearings Dimensions 190.5 × 266.7 × 188.912mm
Product Details
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! ! !
All products undergo quality inspection before entering the market; All product packaging and MOQ will try our best to meet the actual requirements and needs of customers; All kinds of express delivery as you choose, whatever by sea, Fed Express, DHL, TNT, EMS or others.
| Items | Data | Unit |
| Description |
67885DW.67820.67820D or 802123 four row tapered roller bearing |
|
| TQO Type | 67885DW.67820.67820D | |
| FAG Bearing code | 802123 | |
| Dimension | 190.5x266.7x188.912 | mm |
| ID(inner diameter)/Bore | 190.5 | mm |
| OD(outer diameter) | 266.7 | mm |
| H:Width/Height/thickness | 188.912 | mm |
| Cr (Radial Dynamic load rating) | 1400 | KN |
| Cor (Radial Static load rating) | 3000 | KN |
| factor | 0.48 | |
| Weight | 33 | KGS |
| Bearing No. | Boundary dimensions | Basic load rating(kN) | Limiting speeds | Mass | ||||||
| mm | Dynamic | Static | rpm | Kg | ||||||
| d | D | B | rs min | rs1 min | Cr | Cor | Grease | Oil | ||
| NF2203EM | 17 | 40 | 16 | 0.6 | 0.3 | 24 | 22 | 16000 | 18000 | 0.095 |
| NF2204EM | 20 | 47 | 18 | 1 | 0.6 | 22.2 | 20.3 | 15000 | 18000 | 0.141 |
| NF2205EM | 25 | 52 | 18 | 1 | 0.6 | 23.7 | 22.8 | 10000 | 14000 | 0.168 |
| NF2206EM | 30 | 62 | 20 | 1 | 0.6 | 23.9 | 33.1 | 7500 | 11000 | 0.3 |
| NF2207EM | 35 | 72 | 23 | 1.1 | 0.6 | 49 | 51.2 | 6500 | 9500 | 0.45 |
| NF2208EM | 40 | 80 | 23 | 1.1 | 1.1 | 58.3 | 62 | 6000 | 9000 | 0.49 |
| NF2209EM | 45 | 85 | 23 | 1.1 | 1.1 | 61.4 | 67.8 | 5300 | 8000 | 0.54 |
| NF2210EM | 50 | 90 | 23 | 1.1 | 1.1 | 64.2 | 73.6 | 5000 | 7500 | 0.65 |
| NF2211EM | 55 | 100 | 25 | 1.5 | 1.1 | 75.3 | 87.2 | 4300 | 6700 | 0.77 |
| NF2212EM | 60 | 110 | 28 | 1.5 | 1.5 | 101 | 123 | 4000 | 6300 | 1.09 |
| NF2213EM | 65 | 120 | 31 | 1.5 | 1.5 | 120 | 149 | 3500 | 5600 | 1.55 |
| NF2214EM | 70 | 125 | 31 | 1.5 | 1.5 | 119 | 151 | 3300 | 5300 | 1.7 |
| NF2215EM | 75 | 130 | 31 | 1.5 | 1.5 | 135 | 172 | 3000 | 5000 | 1.8 |
| NF2216EM | 80 | 140 | 33 | 2 | 2.0 | 148 | 186 | 2800 | 4800 | 2.2 |
| NF2217EM | 85 | 150 | 36 | 2 | 2.0 | 169 | 218 | 2600 | 4500 | 2.8 |
| NF2218EM | 90 | 160 | 40 | 2 | 2.0 | 207 | 265 | 2400 | 4300 | 3.6 |
| NF2219EM | 95 | 170 | 43 | 2.1 | 2.1 | 230 | 298 | 2200 | 4000 | 4.3 |
| NF2220EM | 100 | 180 | 46 | 2.1 | 2.1 | 259 | 338 | 2000 | 3800 | 5.99 |
| NF2222EM | 110 | 200 | 53 | 2.1 | 2.1 | 334 | 442 | 1600 | 3400 | 8.7 |
| NF2224EM | 120 | 215 | 58 | 2.1 | 2.1 | 367 | 492 | 1200 | 3000 | 9.55 |
| NF2226EM | 130 | 230 | 64 | 3 | 3.0 | 395 | 560 | 1000 | 2800 | 11.9 |
