Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Z&H |

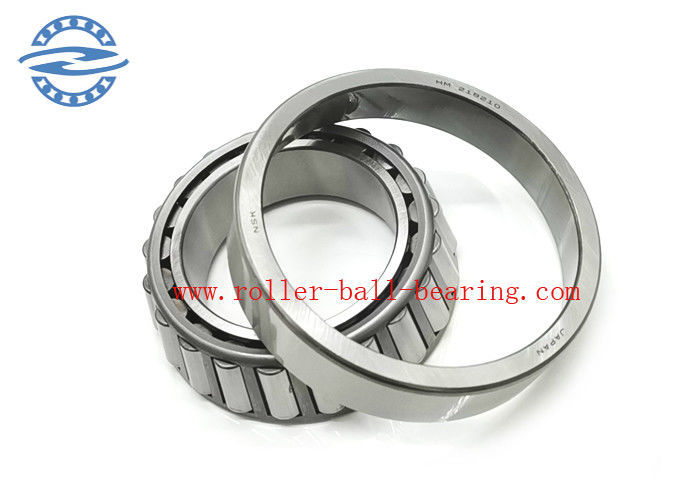

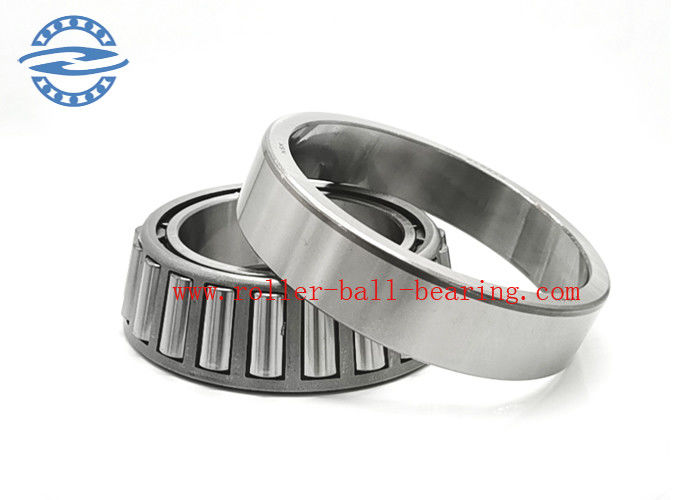

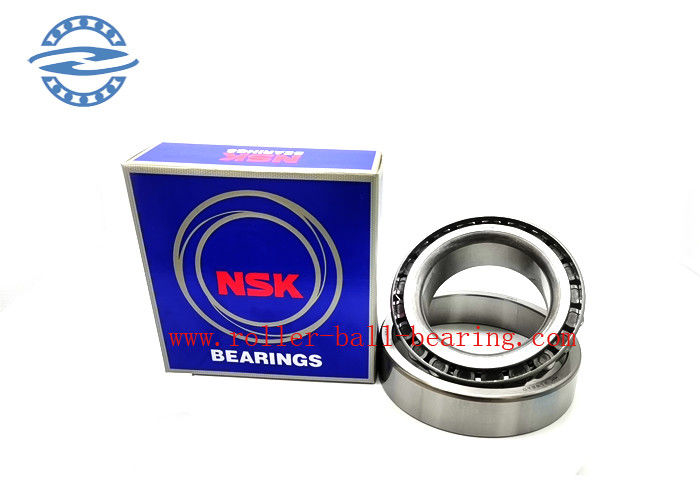

| Model Number: | HM218248/10 |
| Certifiexcavatorion: | ISO:9001 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Negotiable |
| Delivery Time: | 3-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | Negotiable |
| Model Number:: | HM218248/10 | Outside Diameter:: | 146.975 Mm |
|---|---|---|---|
| Demensions:: | 89.975*146.975*40 Mm | Weight:: | 2.53 KG |
| Thickness:: | 40 Mm | Inside Diameter:: | 89.975 Mm |
| High Light: | 218248/10 Taper Roller Bearing,HM218248 Taper Roller Bearing |
||
| Item | HM218248/10 | ||
| Seal Type | Open | ||
| Material | Gcr15 steel | ||
| Precision | ABEC1, ABEC3, ABEC5, ABEC7, ABEC9 | ||
| Clearance | C0,C2,C3,C4,C5 | ||
| Bore size | 89.975mm | Outer diameter | 146.975mm |
| Cage type | Steel Cage | ||
| Seal type | open | ||
| Roller Bearings Feature | Long-life with high quality | ||
| Low-nosie with strict controlling the quality of deep groove ball bearing | |||
| High-load by the advanced high-technical design | |||
| Competitive price, which has the most valuable | |||
| OEM service offered, to meet the customers'requirements | |||
| Appliexcavatorion | gearbox, motor,auto,reduction box,engine machinery,thrust boring machine, polygraph machine etc. | ||
| Bearing Package | Pallet,wooden case,commercial packaging or as customers' requirement. | ||
| Price terms | FOB,CFR,CIF,EXW | Delivery time | 1-5 days acccording the quantity |
Other taper roller bearing models :
| Bearing No. | Dimensions | Basic load ratings | Cone | Cup | Mass | ||||||
| (mm) | (kN) | (Kg) | |||||||||
| ISO 355 | d | D | T | Cr | Cor | B | R | C | r | (Approx.) | |
| 30203 | T2DB017 | 17 | 40 | 13.25 | 20.5 | 20.3 | 12 | 1 | 11 | 1 | 0.08 |
| 30204 | T2DB020 | 20 | 47 | 15.25 | 28.2 | 28.7 | 14 | 1 | 12 | 1 | 0.127 |
| 30205 | T3CC025 | 25 | 52 | 16.25 | 31.5 | 34 | 15 | 1 | 13 | 1 | 0.154 |
| 30206 | T3DB030 | 30 | 62 | 17.25 | 43.5 | 48 | 16 | 1 | 14 | 1 | 0.241 |
| 30207 | T3DB035 | 35 | 72 | 18.25 | 55.5 | 61.5 | 17 | 1.5 | 15 | 1.5 | 0.344 |
| 30208 | T3DB040 | 40 | 80 | 19.75 | 61 | 67 | 18 | 1.5 | 16 | 1.5 | 0.435 |
| 30209 | T3DB045 | 45 | 85 | 20.75 | 67.5 | 78.5 | 19 | 1.5 | 16 | 1.5 | 0.495 |
| 30210 | T3DB050 | 50 | 90 | 21.75 | 77 | 93 | 20 | 1.5 | 17 | 1.5 | 0.563 |
| 30211 | T3DB055 | 55 | 100 | 22.75 | 93 | 111 | 21 | 2 | 18 | 1.5 | 0.74 |
| 30212 | T3EB060 | 60 | 110 | 23.75 | 105 | 125 | 22 | 2 | 19 | 1.5 | 0.949 |
| 30213 | T3EB065 | 65 | 120 | 24.75 | 123 | 148 | 23 | 2 | 20 | 1.5 | 1.18 |
| 30214 | T3EB070 | 70 | 125 | 26.25 | 131 | 162 | 24 | 2 | 21 | 1.5 | 1.26 |
| 30215 | T4DB075 | 75 | 130 | 27.25 | 139 | 175 | 25 | 2 | 22 | 1.5 | 1.41 |
| 30216 | T3EB080 | 80 | 140 | 28.25 | 160 | 200 | 26 | 2.5 | 22 | 2 | 1.72 |
| 30217 | T3EB085 | 85 | 150 | 30.5 | 183 | 232 | 28 | 2.5 | 24 | 2 | 2.14 |
| 30218 | T3FB090 | 90 | 160 | 32.5 | 208 | 267 | 30 | 2.5 | 26 | 2 | 2.66 |
| 30219 | T3FB095 | 95 | 170 | 34.5 | 226 | 290 | 32 | 3 | 27 | 2.5 | 3.07 |
| 30220 | T3FB100 | 100 | 180 | 37 | 258 | 335 | 34 | 3 | 29 | 2.5 | 3.78 |
WORKSHOP
FAQ
A:1)More than 10 Years experience of bearing production and R&D.We have the most professional techniques and team. More advantage in price.
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Our Advantages:
1. More than ten years bearing products exporting experiences.
2. OEM order and non-standard bearing order can be accepted.
3. Many sizes of bearing are available. Large quantity bearing can be ok.
