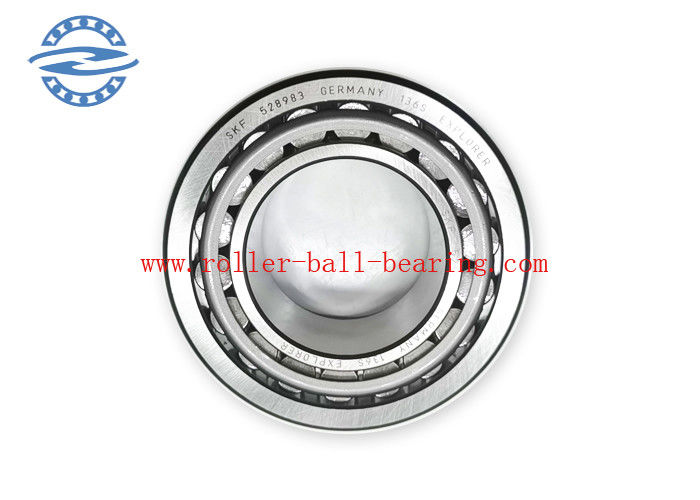

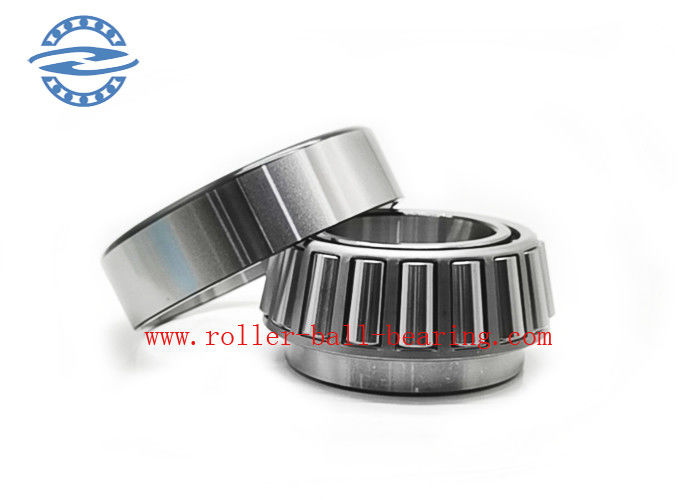

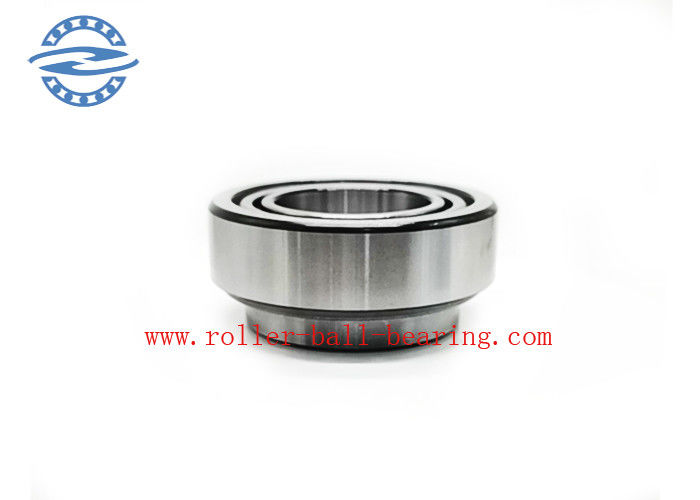

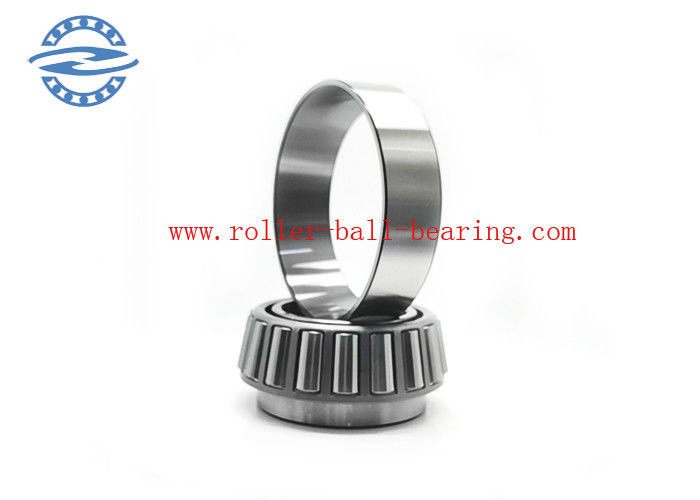

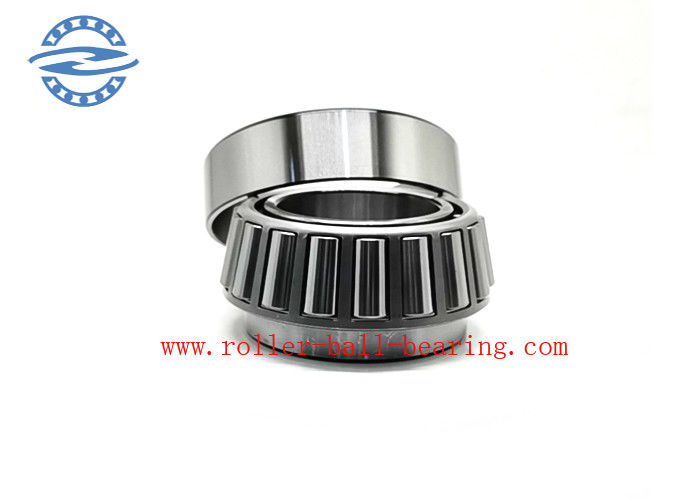

528983 Taper Roller Bearing Size 70x130x57MM for Auto orTruck

528983 Taper Roller Bearing Size 70x130x57MM for Auto orTruck

  • 528983 Taper Roller Bearing Size 70x130x57MM for Auto  orTruck
  • 528983 Taper Roller Bearing Size 70x130x57MM for Auto  orTruck
  • 528983 Taper Roller Bearing Size 70x130x57MM for Auto  orTruck
  • 528983 Taper Roller Bearing Size 70x130x57MM for Auto  orTruck
  • 528983 Taper Roller Bearing Size 70x130x57MM for Auto  orTruck
528983 Taper Roller Bearing Size 70x130x57MM for Auto  orTruck
Product Details:
Place of Origin: China
Brand Name: Z&H
Model Number: 528983
Certifiexcavatorion: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Wooden case,By carton ,Customer Requirement
Delivery Time: 2-8 work days
Payment Terms: L/C,,D/P,T/T, Alibaba online payment,Paypal,etc.
Supply Ability: 500 per day
Contact Now
Detailed Product Description
Appliexcavatorion: Automotive,Machinery Model: Wheel Hub Bearing Taper Roller Bearing
Material: Chrome Steel,bearing Steel Number Of Row: Single Row
Precision Rating: P6,P0,P4,P5 Vibration: Z1V1 Z2V2 Z3V3 Z4V4
Weight: 2.89KG Size: 70x130x57MM
Service: OEM Customized Services,Customization & OEM Service Package: Plastic+anti-rust Paper+box+wooden Box
High Light:

528983 Taper Roller Bearing

,

70x130x57 Taper Roller Bearing

,

Z1V1 Taper Roller Bearing

528983B Taper Roller Bearing Size 70x130x57MM for Auto orTruck

Overview



Specifiexcavatorion: 528983 tapered roller bearing single row
Series metric bearing
Roller bearing types taper roller bearing
Number of row single row
Cage type stamped steel
Precision rate grade p4 p5 p6 p0 abec5
Bearing weight 2.79 Kg
Dimensions:
d - Bore 70.000 mm
D - Cup outer diameter 130.000 mm
T - Bearing width 57.000 mm

Tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.

Industries:

Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.

Benefits:

Enhanced performance in demanding appliexcavatorions.

Types of tapered roller bearing:

single row tapered roller bearing

double row tapered roller bearing

four row tapered roller bearing

tapered roller wheel bearing

inch series tapered roller bearing

528983 Taper Roller Bearing Size 70x130x57MM for Auto  orTruck 0528983 Taper Roller Bearing Size 70x130x57MM for Auto  orTruck 1528983 Taper Roller Bearing Size 70x130x57MM for Auto  orTruck 2528983 Taper Roller Bearing Size 70x130x57MM for Auto  orTruck 3




Other models tapered roller bearing



Cone Cup Bearing Assemblies d(mm) D(mm) T(mm)
HM535349 HM535310 171.45 260.35 66.675
67787 67720 174.625 247.65 47.625
67786 67720 174.625 247.65 47.625
M236845 M236810 174.625 260.35 53.975
94687 94113 174.625 288.925 63.5
EE219068 219117 174.625 298.45 82.55
EE219068 219122 174.625 311.15 82.55
H238148 H238110 174.625 311.15 82.55
LL735449 LL735410 177.8 215.9 20.638
67790 67720 177.8 247.65 47.625
67791 67720 177.8 247.65 47.625
M236849 M236810 177.8 260.35 53.975
M236848 M236810 177.8 260.35 53.975
M238840 M238810 177.8 269.875 55.562
94700 94113 177.8 288.925 63.5
HM237545 HM237510 177.8 288.925 63.5
94700 94118 177.8 298.45 63.5
H239640 H239610 177.8 319.964 88.9
H239640 H239612 177.8 320.675 88.9
EE470078X 470128 177.8 327.025 90.488
EE470078X 470130 177.8 330.2 90.488
EE470073 470130 177.8 330.2 90.488
EE470073 470132 177.8 336.55 90.488
EE780705 781400 177.8 355.6 61.912
EE420701 421417 177.8 360 92.075
EE420701 421437 177.8 365.049 92.075
EE420701 421450 177.8 368.3 92.075
EE350701 351687 177.8 428.625 106.362
93708 93125 179.975 317.5 63.5
JM736149 JM736110 180 250 47
JM736149A JM736110 180 250 47
LM236749 LM236710 184.15 234.95 34
LM236749 LM236710A 184.15 235.229 34
LL537649 LL537610 184.15 236.538 26.193
67883 67820 184.15 266.7 47.625
67884 67820 187.325 266.7 47.625
M238849 M238810 187.325 269.875 55.562
87737 87111 187.325 282.575 50.8
H239649 H239612 187.325 320.675 88.9
JM738249 JM738210 190 260 46
JM238848 M238810 190 269.875 55.563
67886 67835 190.078 289.992 46
67885 67820 190.5 266.7 47.625
87750 87111 190.5 282.575 50.8
82788 82722 190.5 284.162 55.562
82788 82720 190.5 288.925 55.562
93750 93125 190.5 317.5 63.5
EE470075 470128 190.5 327.025 90.488
EE210753 211300 190.5 330.2 63.5
EE470075 470132 190.5 336.55 90.488
HH840249 HH840210 190.5 336.55 98.425





Hot Selling Products



528983 Taper Roller Bearing Size 70x130x57MM for Auto  orTruck 4



FAQ



Q: If I want to mark my own brand on your bearing in small Q’ty, does it work?
A: Yes, we can engrave your own brand on the rings of bearing in small Q’ty.
If the future, when you have larger Q’ty, we can open the cover mold of your own brand name.


Q: Does your company accept the small quantity of orders?
A: Once your bearing is standard size bearing, we accept the small Q’ty even in 1pc.

Q: will you send me free sample?
A: Yes, sample is free, but the freight cost has to be paid by you.


Q: If I don't see the type of bearing I need, what should I do?
A: We have too many bearing series number. Sometimes, we are unable to put them all on the Alibaba.

Just send the inquiry to us, and we’ll send you the detail of your bearing.
