Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Z&H |
| Model Number: | 32318 |
| Certifiexcavatorion: | ISO9001:2008 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case,By carton ,Customer Requirement |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C,,D/P,T/T, Alibaba online payment,Paypal,etc. |
| Supply Ability: | 500 per day |
| Name: | Tapered Roller Bearings | Material: | Chrome Steel |
|---|---|---|---|
| Number Of Row: | Single Row | Precision Rating: | P0 P6 P5 P4 P2 |
| Clearance: | C1 C2 0 C3 C4 C5 | Size: | 90*190*67.5mm |
| Weight: | 8.41kg | Package: | Industrial Package |
| High Light: | 32318 Timken Tapered Roller Bearings,Single Row Timken Tapered Roller Bearings,Z1V1 Timken Tapered Roller Bearings |
||

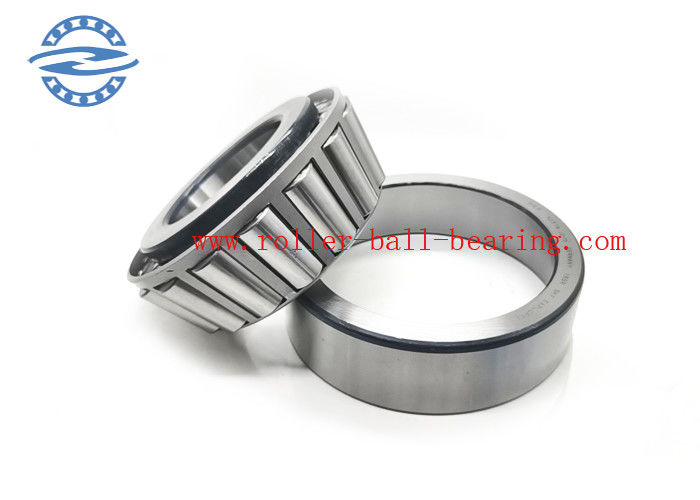

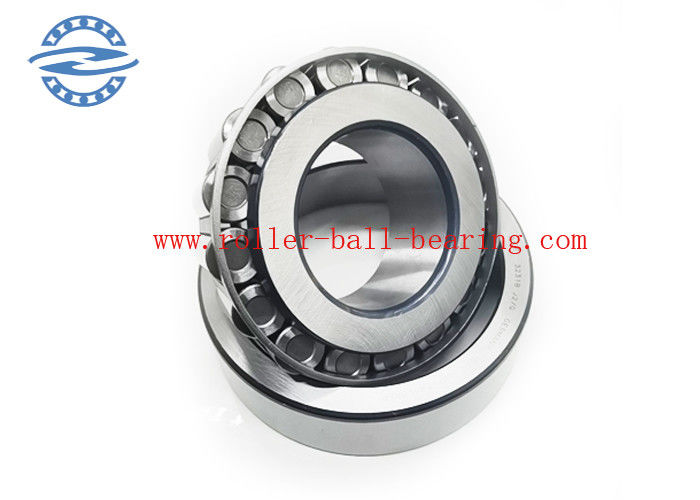

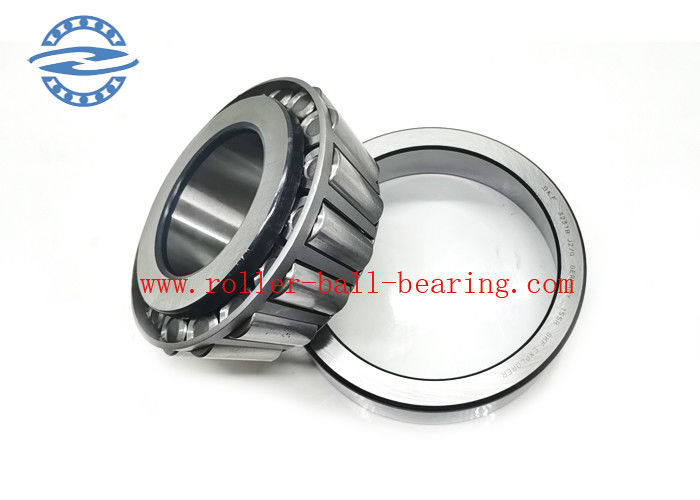

32318 Tapered Roller Bearings Single Row Size 90*190*67.5 mm
Tapered roller bearings have an outer ring with an inner ring and a set of tapered rollers with an inner ring assembly consisting of a basket cage. The outer ring can be separated from the inner ring assembly. In accordance with the ISO standard for the dimensions of tapered roller bearings, the outer ring or inner ring assembly of any standard tapered roller bearing shall be interchangeable with the outer ring or inner ring assembly of the same type internationally. That is, the outer ring of the same type shall comply with ISO492 (GB307) in addition to the external dimension and tolerance, the cone Angle of the inner ring assembly, the cone diameter of the assembly, etc., must also comply with the relevant
provisions of the exchange.The cone Angle of the raceway of the outer ring of tapered roller bearing is between 10° and 19°, and it can bear the combined action of axial and radial load at the same time. The larger the cone Angle is, the greater the axial load bearing capacity is. Bearing with large taper Angle, rear code plus B, cone.
Different Type
Other models
|
Bearing No |
Dimensions(mm) |
Weight |
||
|
|
d |
D |
T |
kg |
|
32230
|
150
|
270
|
77
|
18.2
|
|
32232
|
160
|
290
|
84
|
21.1
|
|
32234
|
170
|
310
|
91
|
28.5
|
|
32236
|
180
|
320
|
91
|
29.8
|
|
32238
|
190
|
340
|
97
|
36
|
|
32303
|
17
|
47
|
20.25
|
0.174
|
|
32304
|
20
|
52
|
22.25
|
0.231
|
|
32305
|
25
|
62
|
25.25
|
0.367
|
|
32306
|
30
|
72
|
28.75
|
0.56
|
|
32307
|
35
|
80
|
32.75
|
0.77
|
|
32308
|
40
|
90
|
35.25
|
1.05
|
|
32309
|
45
|
100
|
38.25
|
1.4
|
|
32310
|
50
|
110
|
42.25
|
1.89
|
|
32311
|
55
|
120
|
45.5
|
2.37
|
|
32312
|
60
|
130
|
48.5
|
2.9
|
|
32313
|
65
|
140
|
51
|
3.51
|
|
32314
|
70
|
150
|
54
|
4.35
|
|
32315
|
75
|
160
|
58
|
5.34
|
|
32316
|
80
|
170
|
61.5
|
6.38
|
|
32317
|
85
|
180
|
63.5
|
7.3
|
|
32318
|
90
|
190
|
67.5
|
8.78
|
|
32319
|
95
|
200
|
71.5
|
10.7
|
|
32320
|
100
|
215
|
77.5
|
3
|
|
32321
|
105
|
225
|
81.5
|
14.5
|
|
32322
|
110
|
240
|
84.5
|
17.8
|
|
32324
|
120
|
260
|
90.5
|
21.7
|
|
33005
|
25
|
47
|
17
|
0.131
|
|
33006
|
30
|
55
|
20
|
0.208
|
|
33007
|
35
|
62
|
21
|
0.267
|
|
33008
|
40
|
68
|
22
|
0.322
|
|
33009
|
45
|
75
|
24
|
0.414
|
|
33010
|
50
|
80
|
24
|
0.452
|
|
33011
|
55
|
90
|
27
|
0.672
|
|
33012
|
60
|
95
|
27
|
0.713
|
|
33013
|
65
|
100
|
27
|
0.758
|
|
33014
|
70
|
110
|
31
|
1.11
|
|
33015
|
75
|
115
|
31
|
1.18
|
|
33019
|
95
|
145
|
39
|
2.3
|
|
33022
|
110
|
170
|
47
|
3.775
|
|
33205
|
25
|
52
|
22
|
0.23
|
|
33206
|
30
|
62
|
25
|
0.37
|
|
33207
|
35
|
72
|
28
|
0.522
|
|
33208
|
40
|
80
|
32
|
0.535
|
|
33209
|
45
|
85
|
32
|
0.82
|
|
33210
|
50
|
90
|
32
|
0.9
|
|
33211
|
55
|
100
|
35
|
1.2
|
|
33212
|
60
|
110
|
38
|
1.6
|
|
33213
|
65
|
120
|
41
|
2.05
|
|
33214
|
70
|
125
|
41
|
2.1
|
|
33215
|
75
|
130
|
41
|
2.25
|
|
33216
|
80
|
140
|
46
|
2.9
|
|
33217
|
85
|
150
|
49
|
3.7
|
|
33220
|
100
|
180
|
63
|
6.78
|
Packaging and Shipment
FAQ
If you have any other questions, please feel free to contact us as follows.
1. Your factory how to control the quality?
A: All bearing parts before the production and the production process, strict inspection by 100%, including crack detection, roundness, hardness, roughness, and the geometry size, all bearing meet ISO international standard.
2. Can you tell me the bearing material?
A: We have chrome steel GCR15, stainless steel, ceramics and other materials.
3. How long is your delivery time?
A: If the goods are in stock, usually 5 to 10 days, if the goods are no stock for 15 to 20 days, according to the quantity to determine the time.
