Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | ZH |
| Certification: | IS09001 |
| Model Number: | 23040CC |
| Certifiexcavatorion: | ISO9001:2008 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | Wooden case,By carton or on request. |
| Delivery Time: | 2-7 work days |
| Payment Terms: | L/C,,D/P,T/T, Alibaba online payment,Paypal,etc. |
| Supply Ability: | 50000 Set/Sets per Month |
| Price: | Factory Price | Product Name: | Spherical Roller Bearing |
|---|---|---|---|
| Model: | 23040CC | Packing: | Standard Export Package,Clients Requested |
| Material: | CHROME STEEL | Brand: | ZH |
| MOQ: | 1 | Size: | 200*310*82mm |
| High Light: | 189-5746,E330C Revolution Speed Sensor |
||

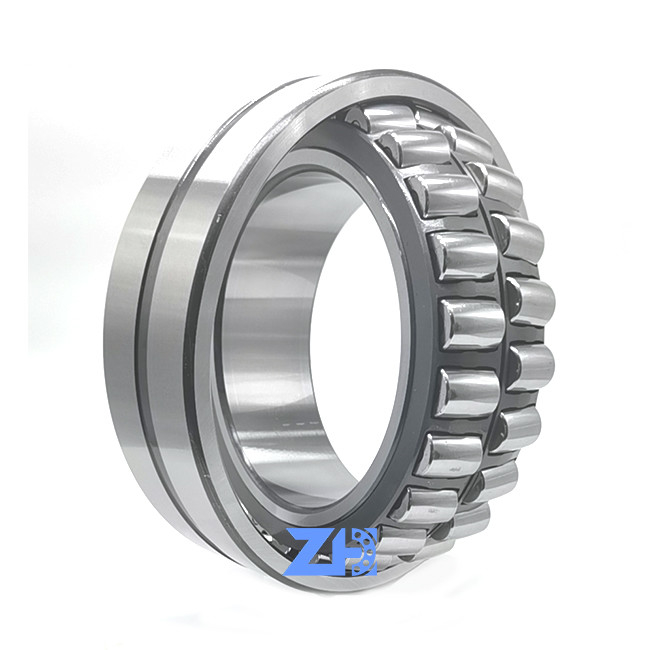

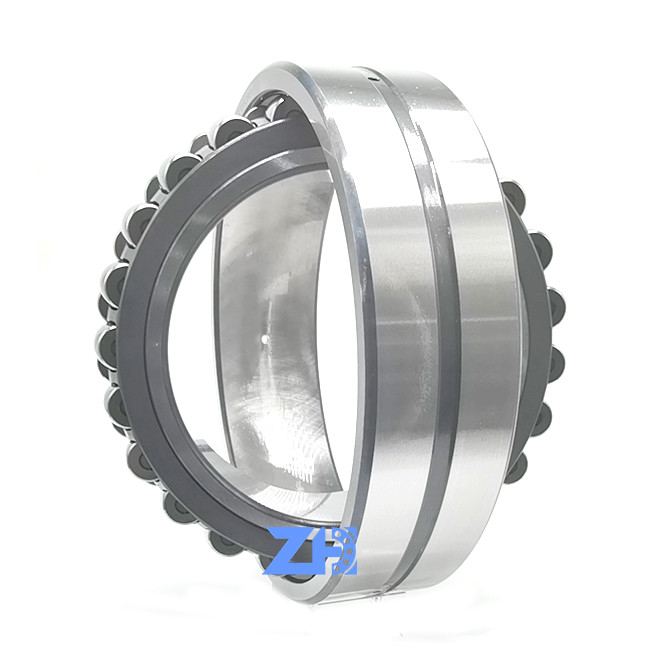

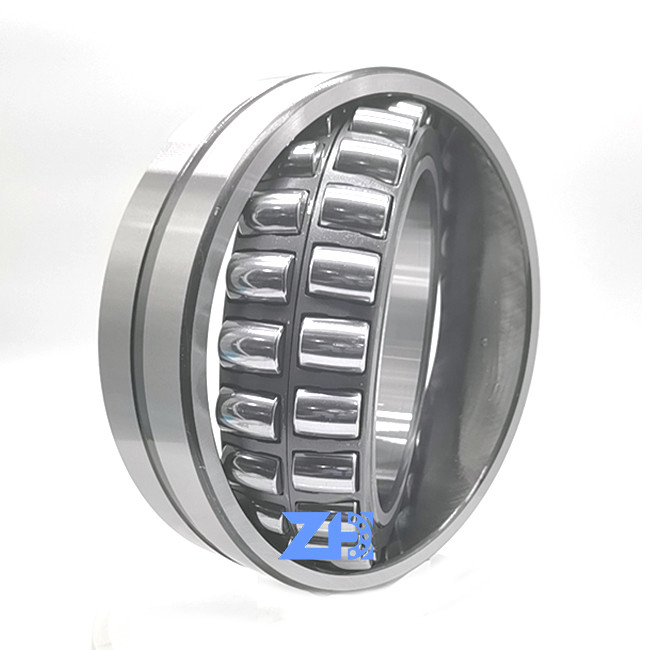

23040CC 23040W33 23040C3 P0 P5 P3 Quality Level CHROME STEEL Material Spherical Roller Bearing
Product introduction(When it comes to flowers, I think of spring, when it comes to high-quality and cheap bearings, I think of ZH)
23040 CC/W33 * Spherical roller bearings with two rollers, mainly bear radial load, but also can withstand axial load in either direction. A high radial load capacity, especially suitable for heavy loads or vibration, but can not bear the pure axial load. This kind of bearing outer ring raceway is spherical shape, so the good performance of its self-aligning, can compensate concentricity error.
| d |
200 mm
|
Bore diameter |
|---|---|---|
| D |
310 mm
|
Outside diameter |
| B |
82 mm
|
Width |
| d2 |
≈223 mm
|
Shoulder diameter of inner ring |
| D1 |
≈286 mm
|
Shoulder/recess diameter of outer ring |
| b |
13.9 mm
|
Width of lubrication groove |
| K |
7.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.2.1 mm
|
Chamfer dimension |
| da |
max.223 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.299 mm
|
Diameter of housing abutment |
| ra |
max.2 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
1 059 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 530 kN
|
| Fatigue load limit | Pu |
137 kN
|
| Limiting speed |
480 r/min
|
|
| Limiting value | e |
0.22
|
| Calculation factor | Y1 |
3
|
| Calculation factor | Y2 |
4.6
|
| Calculation factor | Y0 |
2.8
|
| da |
max.223 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.299 mm
|
Diameter of housing abutment |
| ra |
max.2 mm
|
Radius of fillet |
23040CC Collection
| HMK3525+IR | T7FC055 | SG02 | GM38VB | HMT36FA | 30312 | NUP207 | GM18VL | HMGF36 |
| NUP2209 | NUP310 | SG15 | MAG150 | HMGC32 | KMF90-PC200-6 | HMS072 | AP5S53 | NUP206=100 |
| NUP2209 | NUP207 | SG20 | TM09 | HMGF35 | NUP2206 | AP5S67 | NUP2207 | |
| NUP2212 | 6213 | NUP309=180 | NUP2212=220 | 6305 | NUP308 | NUP308=140 | NUP2207 | |
| M2X146 | NUP308 | NUP309 | DNB50/60 | NUP2211=250 | 30309D=110 | T7FC055=300 | NUP309=180 | |
| NUP309 | JMF29 | NUP206 | NUP308 | NUP207 | NUP207/NUP306 | NUP309 | NUP309=180 | |
| NUP2212 | NUP307 | 6305M | 30314D=250 | NUP307 | 30309D | JMF250 | NUP310 | |
| M5X130 | NUP205E | 4T-30307 | NUP309 | NUP307 | M2X55 | JMV-53/31 | GM35VL | |
| M5X180 | NUP207=120 | SG08 | T7FC055 | NUP2208 | M2X63 | MAG85 | NUP2206=130 | |
| 32205 | NUP2209=160 | GM17VA | 30312D | NUP2211 | NUP2208=210 | NUP206E | 6008 | |
| T7FC060 | NUP2207=140 | JMV-44/22 | 30314D | HMGC48 | NUP307=110 | 15578 | NUP307 | |
| M2X150 | 30312D | KMF125-PC200-7 | 30312D | NUP309 | JMF195 | NUP306 | 30311D | |
| M2X170 | NUP2209 | NUP2310 | 30309D | 30312D | NUP2212 | 30312D | T7FC055 | |
| M2X210 | JMF23 | 30210 | 30210 | GM35VA | NUP2211 | NIP2310 | MAG120 | |
| HMGF57 | JMF151 | 30311D | KMF125-PC200-8 | 30312D=155 | 30312D=155 | NUP208E | MAG150 | |
| NUP306 | 11749/11710 | SG04 | KMF160-PC360-7 | M2X96 | M2X120 | NUP308=14 | NUP309 | |
| NUP307 | KMF41-PC60 | SG025 | MSG-27P | MCB172 | 32207 | T7FC065 | NUP308 |
FAQ
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
Why choose us? 1. Let’s talk—we have NO barrier in language.
2. Request for more item information---there are nearly 2000 products for your option!
3. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a ready product.
Contact Person: Xiao
Tel: +8613561495066
Steel Cage Spherical Roller Bearing 23136CC/W33 size 160*270*86mm
Spherical Bearing 23040CC/W33 Size 200*310*82MM Used In Various Machinery
Gcr15 material spherical Roller Bearing 24130CA/W33 size 150*250*100MM
Brass cage long life 23220CA/W33 Spherical Double Row Roller Bearing Size100*180*60.3MM
R196-4 size 196.85x241.3x23.812 excavator walking tooth box bearing
180BA2256 Chrome Steel GCR15 Excavator Bearing SIZE 180*225*21.5
528946 Single row inch tapered roller bearings Size 105x170x38mm
32207 Taper Roller Bearing Size 35*72*24.25 for printing machinery
32040 200*310*70 Taper Roller Bearing For Vibrating Screen size 200*310*70
