Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | ZH |
| Certification: | IS09001 |
| Model Number: | 23222CAW33C3 |
| Certifiexcavatorion: | ISO9001:2008 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | Wooden case,or on request,By carton |
| Delivery Time: | 2-7 work days |
| Payment Terms: | L/C,,D/P,T/T, Alibaba online payment,Paypal,etc. |
| Supply Ability: | 500 per day |
| Price: | Factory Price | Product Name: | Spherical Roller Bearing |
|---|---|---|---|
| Model: | 23222CAW33C3 | MOQ: | 1 |
| Packaging: | Your Requirement | Supply: | 30000 Set/Sets Per Month |
| Material: | CHROME STEEL | Size: | 110*200*69.8mm |
| High Light: | 500 Bar Excavator Spare Parts,ISO9001 Excavator Spare Parts,JCB High Pressure Sensor |
||

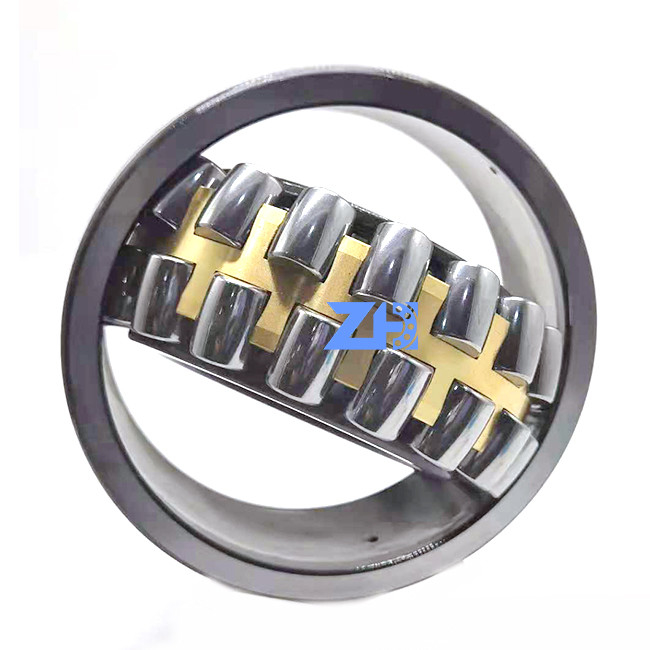

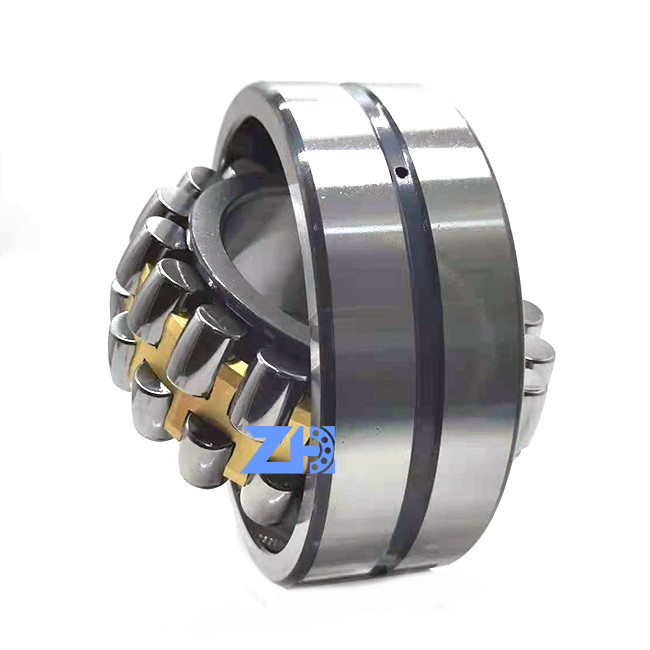

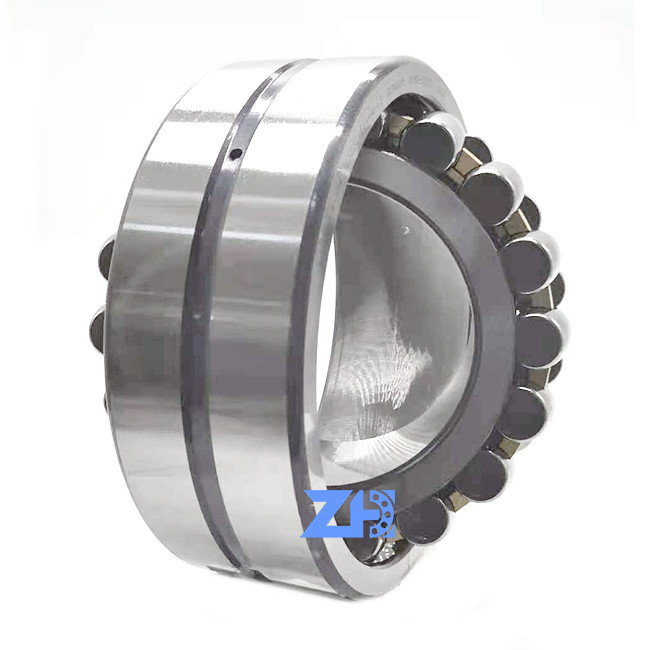

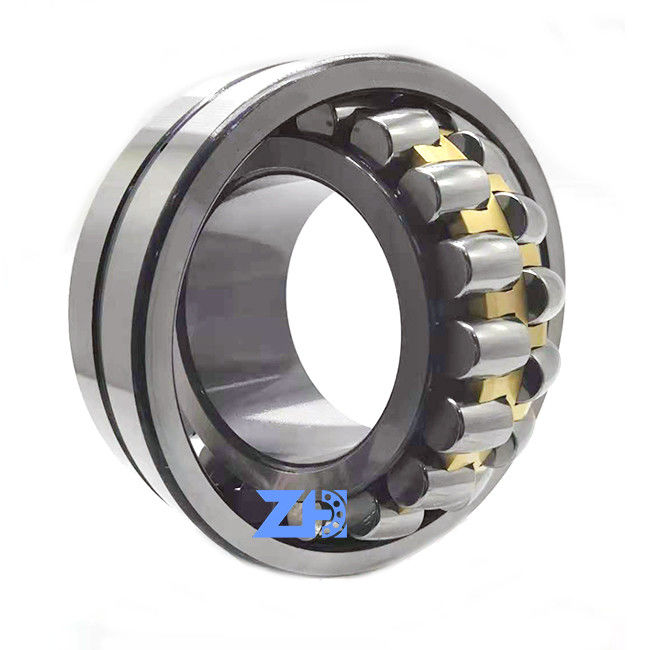

110*200*69.8mm Spherical Roller Bearing 23222CAW33C3 23222C3 23222X CHROME STEEL
Product introduction(Fish like water, like high quality bearings low price customers like ZH factory)
23222CAW33C3 bearing is a Spherical Roller Bearing with a guide ring centred on a flangeless inner ring, two stamped steel cages, a 1:12 tapered bore, an annular groove in the outer ring with three lubrication holes and a greater than normal radial internal clearance. The bearing's dimensions are 110x200x69.8mm.
| d |
110 mm
|
Bore diameter |
|---|---|---|
| D |
200 mm
|
Outside diameter |
| B |
69.8 mm
|
Width |
| d2 |
≈130 mm
|
Shoulder diameter of inner ring |
| D1 |
≈169 mm
|
Shoulder/recess diameter of outer ring |
| b |
8.3 mm
|
Width of lubrication groove |
| K |
4.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.2.1 mm
|
Chamfer dimension |
| da |
min.122 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.188 mm
|
Diameter of housing abutment |
| ra |
max.2 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
626 kN
|
|---|---|---|
| Basic static load rating | C0 |
765 kN
|
| Fatigue load limit | Pu |
76.5 kN
|
| Reference speed |
2 200 r/min
|
|
| Limiting speed |
3 200 r/min
|
|
| Limiting value | e |
0.33
|
| Calculation factor | Y1 |
2
|
| Calculation factor | Y2 |
3
|
| Calculation factor | Y0 |
2
|
23222CAW33C3 Collection
| d |
110 mm
|
Bore diameter |
|---|---|---|
| D |
200 mm
|
Outside diameter |
| B |
69.8 mm
|
Width |
| d2 |
≈130 mm
|
Shoulder diameter of inner ring |
| D1 |
≈169 mm
|
Shoulder/recess diameter of outer ring |
| b |
8.3 mm
|
Width of lubrication groove |
| K |
4.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.2.1 mm
|
Chamfer dimension |
FAQ
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
Why choose us? 1. Let’s talk—we have NO barrier in language.
2. Request for more item information---there are nearly 2000 products for your option!
3. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a ready product.
Contact Person: Xiao
Tel: +8613561495066
