Place of Origin:	China
Brand Name:	Qireal
Certification:	IS09001
Model Number:	22224CC
Certifiexcavatorion:	ISO9001:2008

Minimum Order Quantity:	1PC
Packaging Details:	Wooden case,By carton or on request.
Delivery Time:	2-7 work days
Payment Terms:	L/C,,D/P,T/T, Alibaba online payment,Paipal,etc.
Supply Ability:	30000 Set/Sets per Month

Price:	Factory Price	Product Name:	Spherical Roller Bearing
Model:	22224CC	Brand:	ZH
Material:	CHROME STEEL	MOQ:	1
Supply:	30000 Set/Sets Per Month	Size:	12021558mm
High Light:	331/32602 Excavator Spare Parts , JS220 Excavator Spare Parts , JS220 Arm Hydraulic Cylinder

item	value
Type	Roller
Structure	Spherical
Applicable Industries	Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works , Energy & Mining
Brand Name	ZH
Model Number	22224/22228/22230/22308/22309
Precision Rating	P6 P 5 P4 P2 P0
Seals Type	OPEN
Number of Row	Double row
Place of Origin	China
	Guangdong
Product name	Spherical roller bearing
Package	Cardboard+individual Box+carton
Product advantage	High load carrying capacity and Long service life
Material	Chrome Steel

Model number	Inner diameter(MM)	Outer diameter(MM)	Width(MM)
22224	120	215	58
22228	140	250	68
22230	150	270	73
22308	40	90	33
22309	45	100	36

d	120 mm	Bore diameter
D	215 mm	Outside diameter
B	58 mm	Width
d2	≈141 mm	Shoulder diameter of inner ring
D1	≈189 mm	Shoulder/recess diameter of outer ring
b	11.1 mm	Width of lubrication groove
K	6 mm	Diameter of lubrication hole
r1,2	min.2.1 mm	Chamfer dimension

Da	max.203 mm	Diameter of housing abutment
ra	max.2 mm	Radius of fillet

Basic dynamic load rating	C	652 kN
Basic static load rating	C0	780 kN
Fatigue load limit	Pu	73.5 kN
Reference speed		2 800 r/min
Limiting speed		3 800 r/min
Limiting value	e	0.26
Calculation factor	Y1	2.6
Calculation factor	Y2	3.9
Calculation factor	Y0	2.5

Product	Spherical Roller Bearings
Reference Number	22224 E 22224 E/C3 22224 E CC/W33 CA/W33 ect
Material	Chrome steel
Brand	ZH or Your requirement
MOQ	1pcs
Feature	Self-aligning The bearing automatically compensates for deviation in the shaft center and bending in the housing or shaft, preventing excessive force from being applied to it. Support for all types of loads Spherical roller bearings sustain radial loads, axial loads in both directions, and combined loads. For fixed-end or free-end Spherical roller bearings feature all of the characteristics that have made bearings renowned superior design, reliable performance and comprehensive technical support. Spherical roller bearings are designed to manage high radial loads and perform consistently, even when misalignment, marginal lubrication, contamination, extreme speeds and critical application stresses are present.
Package	Single box+cartoon+pallet
Delivery	5-7days ready after deposit
Sample	Avaiable
Application	High load capacity Suited for applications involving large radial loads, heavy loads, and impact loads Mining equipment (powdering machines, vibrating screens, conveyors, etc.), gearboxes, air preheaters, extruders, centrifugal separators, construction machinery, steelmaking machinery, papermaking machines
Type	CC:It consists of two pressed steel cages, flangeless inner ring and a guide ring centred on the inner ring. It adopts symmetrical spherical rollers, which features increased load carrying capacity and a longer service life compared with CA. CA:It consists of a one-piece machined brass cage, an inner ring with flange on both sides and a guide ring centred on the inner ring. It features a higher limit speed and a relatively low noise. MB:It consists of two pieces of machined brass cage, an inner ring with flange on both sides and one guide ring centred on the inner ring. Its performance is similar to CA, with lower load rating. E:As the latest design, it uses symmetric spherical rollers, two pressed steel cages, a flangeless inner ring and guide ring centred on the cages. Guide ring around the outer ring can improve the lubricating condition on roller face of end, by reducing friction, guiding roller in the non-load region and assisting roller entering into the load area. Meanwhile, the length of roller is getting longer so that the load rating is greatly enhanced. Usually, the rated load can be increased by 20% -35%.
Stock	Rich stock

KMF160-PC360-7	NUP308	NUP309	NUP206=100	NUP2211=250	30309D=110	T7FC055=300	NUP309
MSG-27P	JMF29	NUP206	NUP2206=130	NUP207	NUP207/NUP306	NUP309	T7FC055
AP5S53	NUP307	6305M	NUP309=180	NUP307	30309D	JMF250	30312D
M5X130	NUP205E	4T-30307	NUP309=180	NUP307	M2X55	JMV-53/31	30314D
M5X180	NUP207=120	SG08	NUP310	NUP2208	M2X63	MAG85	30312D
32205	NUP2209=160	GM17VA	MAG120	NUP2211	NUP2208=210	NUP206E	6008
T7FC060	NUP2207=140	JMV-44/22	MAG150	HMGC48	NUP307=110	15578	NUP307
M2X150	30312D	KMF125-PC200-7	KMF90-PC200-6	NUP309	JMF195	NUP306	30311D
M2X170	NUP2209	NUP2310	NUP2206	NUP309	NUP2212		T7FC055
M2X210	NUP2209	30210	NUP2207	NUP2212	NUP2211	NIP2310	JMF23
HMGF57	NUP2209	30311D	NUP2207	30312D=155	30312D=155	NUP208E	JMF151
NUP306	NUP2212	SG04	GM35VA	M2X96	M2X120	NUP308=14	11749/11710
NUP307	M2X146	SG025	GM35VL	MCB172	32207	T7FC065	KMF41-PC60

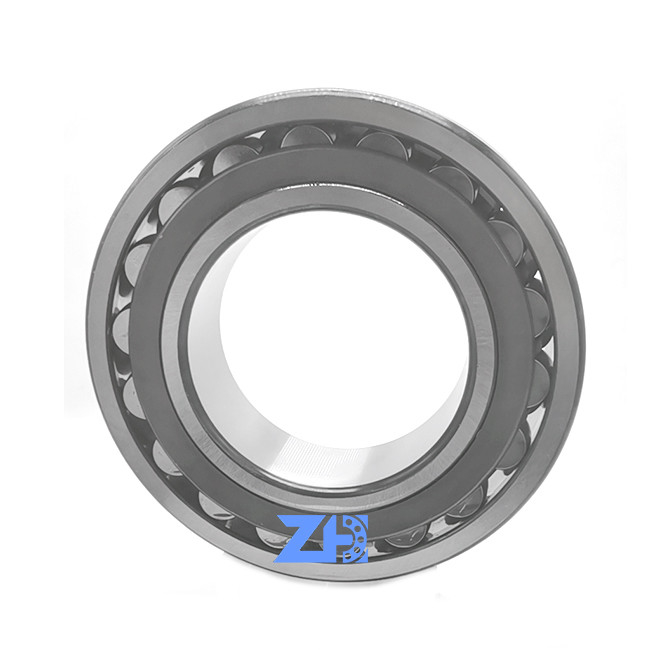

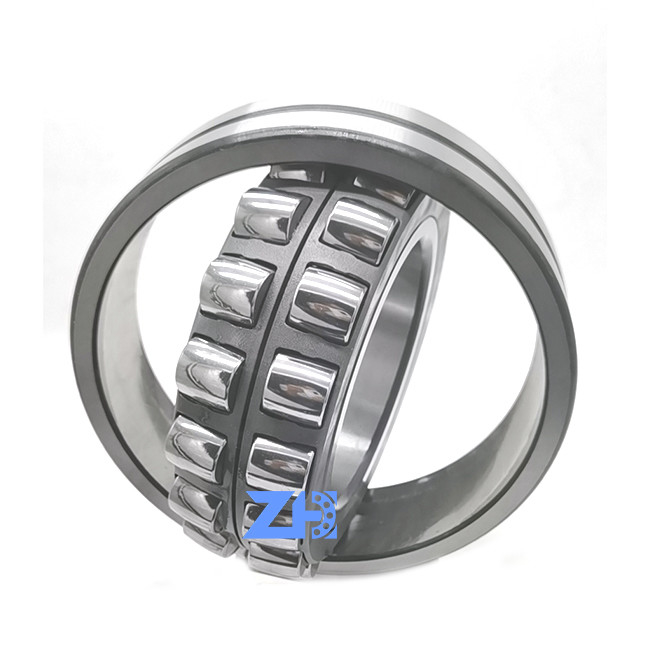

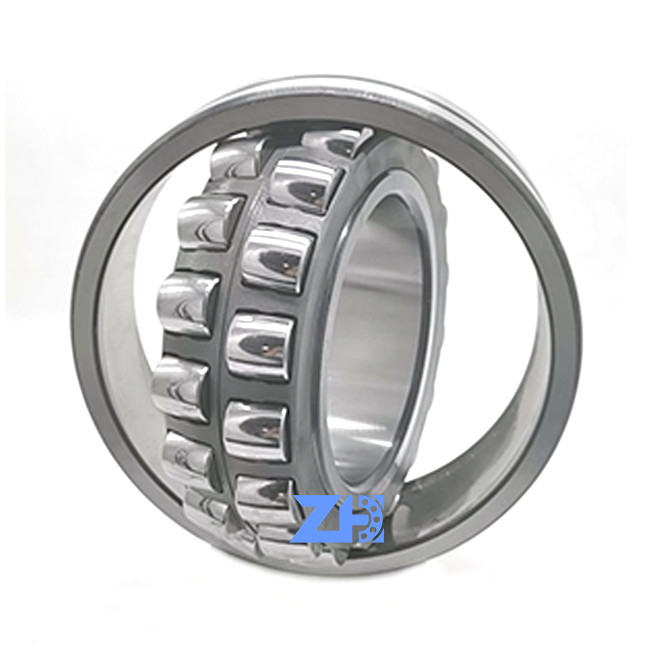

Long service time 22224CC 22224CC 22224CC 120*215*58mm Spherical Roller Bearing

Long service time 22224CC 22224CC 22224CC 120*215*58mm Spherical Roller Bearing
