| Place of Origin: | China |
| Brand Name: | ZH |
| Model Number: | 32026 |
| Minimum Order Quantity: | 1 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | neutral packing |
| Delivery Time: | 2-5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 pieces/month |
| Type: | Taper Roller Bearing | Product Name: | 32026 |
|---|---|---|---|
| Number Of Row: | Single Column | Quality: | High Qualtity |
| Color: | Gray | Material: | CHROME STEEL |
| Brand: | ZH | ||
| High Light: | EC55 EC Excavator Spare Parts,1146-01610 Excavator Spare Parts,EC55 Center Joint Assy |
||

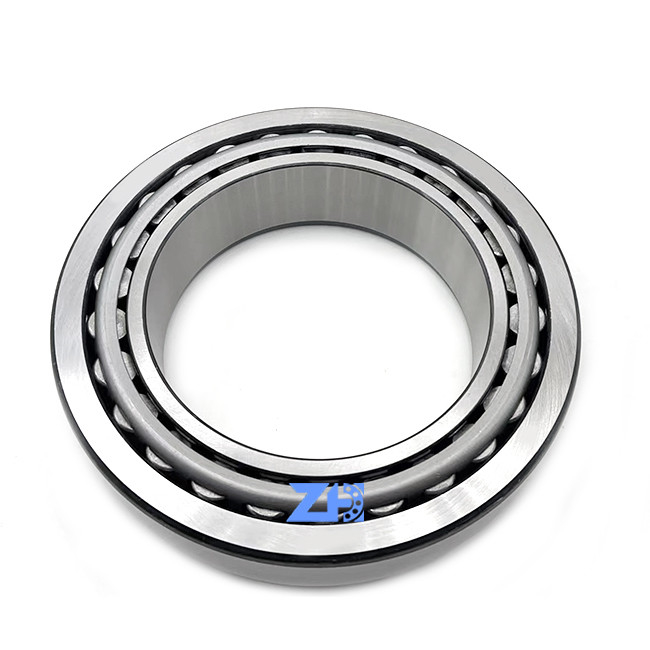

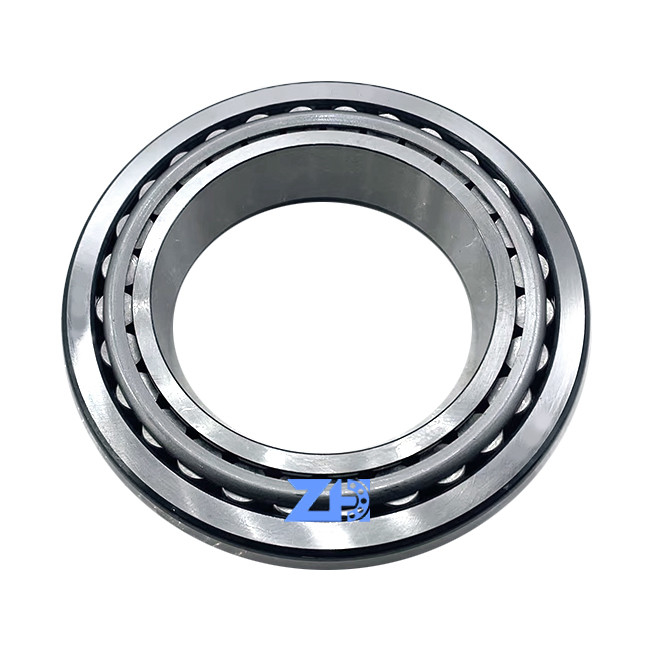

32026 single row tapered roller bearings are separable adjustable or paired in size according to DIN ISO
| Product name | 32026 |
| Material | CHROME STEEL |
| quality | Good quality |
| Place of Origin | China |
| Payment | T/T Paypal Western Union Trade assurance |
| Packing | bags,carcon box,wooden case or as requested |
other products
| BA195-3 | 165BA210/AC3321 | BA246-1SA |
| SF4852/SF4815 | BD165-6A(3321) | BA246-2SA/SF4903 |
| SF4831/SF4826 | BA160-432348 | SF4860PX1 |
| 184BA-2251 | BA240-5SA | BA260-3A(OD 30) |
| BD185-1 | BA240-5ASA(BA240-8) | BA260-4A(OD 33) |
| BD185-6A | SF4831PX1 | AC523438-1(OD 30) |
| 200BA27V-2 | SF4826PX1 | AC523438-1(OD 38) |
| Bearing Type | single row assembly | |
| Bore Dia (d) | 130.000 | mm |
| Outer Dia (D) | 200.000 | mm |
| Radius (min) (rs) | 2.00 | mm |
| Dynamic Load Rating (Cr) | 314,000 | N |
| Static Load Rating (Cor) | 540,000 | N |
| Max Speed (Grease) | 1,600 | rpm |
| Max Speed (Oil) | 2,200 | rpm |
| Width (B) | 45.000 | mm |
| Outer Width (Bo) | 34.000 | mm |
| Inner Width (Bi) | 45.000 | mm |
| Max. Shaft Shoulder Dia. Inner (Li) | 144 | mm |
| Min. Housing Shoulder Dia., Outer (Lo) | 178 | mm |
| Radius (min) (rs1) | 2.50 | mm |
| Shaft (Fw) | 2.50 | mm |
| Weight (g) | 4,860.00 | grams |
Q1: I know only the excavator model, but can not offer parts No., what should I do ?
A1: If possible, you can send us the old photo, nameplate or the size for reference.
Q2: What is the warranty of the parts after I purchase?
A2: The warranty is 6/12 Months based on the item details.
Q3: How can I pay the order?
A3: We can receive payment through T/T, Western Union, Paypal(for small amount),Alibaba trade assurance.
Q4: When will get the items after I place order?
A4: Once your payment is confirmed, we will arrange the goods within 24 hours, if not in stock ,we will inform you before placing the order.
Q5: How can I do if there is something wrong with the items?
A5: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide the old photo for us. After it is confirmed, pls return to us , we will offer the correct item.
Q6: What is your main products?
A6: We are specialized in the excavator spare parts, such as travel motor gearbox/assy/parts, swing gearbox/assy/motor/parts, hydraulic pump assy/parts, gear parts. If you need other excavator parts, we also can supply as your requirements.
