Name: Taper Roller Bearing factory price 100*157*42mm HM220149 - HM220110 good quality
Brand: ZH
SKU: HM220149 - HM220110
Rating: 4.7 (126 reviews)

Home Products Taper Roller Bearing

Taper Roller Bearing factory price 10015742mm HM220149 - HM220110 good quality

Product Details:

Place of Origin:	China
Brand Name:	ZH
Certification:	IS09001
Model Number:	HM220149 - HM220110

Payment & Shipping Terms:

Minimum Order Quantity:	1 Pieces
Packaging Details:	Your requirement
Delivery Time:	2-5 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30000 Set/Sets per Month

Contact Now

Detailed Product Description

Price:	Factory Price	Product Name:	TAPPER ROLLER BEARING
Model:	HM220149 - HM220110	MOQ:	1
Material:	CHROME STEEL	Supply:	30000 Set/Sets Per Month
Quality ANK:	P0、P2、P4、p5、p6	Size:	10015742
Quality:	Good Quality	Weight:	0.01KgGood Quality
High Light:	B3754020-C387 , DACHAI 498 Oil Stop Solenoid Valve

HM220149 - HM220110 HM220149 - HM220110RS P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Taper Roller Bearing

Product inrtroduction
Tapered roller bearings are separated bearings, and the inner and outer rings of the bearings are equipped with tapered raceways. Tapered roller bearings can withstand axial loads in one direction,(Low price,High quality bearings. You look for it thousands of times, but it is waiting for you in the ZH factory)

and can limit the axial displacement of the shaft or housing in one direction. This kind of bearing is divided into single row, double row and four row tapered roller bearings and other different structural types according to the number of rows of rollers installed. Tapered roller bearings

are mainly used to bear radial and axial combined loads based on radial loads. Compared with angular contact ball bearings, the bearing capacity is large and the limit speed is low.

Specifications

Series	HM220100
Cone Part Number	HM220149
Cup Part Number	HM220110
Design Unit	Inch
Cage Material	Stamped Steel

Dimensions

d - Bore	3.9360 in99.974 mm
D - Cup Outer Diameter	6.1801 in156.975 mm
B - Cone Width	1.6535 in41.999 mm
C - Cup Width	1.3386 in34 mm
T - Bearing Width	1.6535 in41.999 mm

Abutment and Fillet Dimensions

R - Cone Backface "To Clear" Radius¹	0.310 in7.870 mm
r - Cup Backface "To Clear" Radius²	0.140 in3.56 mm
da - Cone Frontface Backing Diameter	4.25 in108 mm
db - Cone Backface Backing Diameter	4.84 in122.9 mm
Da - Cup Frontface Backing Diameter	5.96 in151.38 mm
Db - Cup Backface Backing Diameter	5.59 in141.99 mm
Ab - Cage-Cone Frontface Clearance	0.12 in3 mm
Aa - Cage-Cone Backface Clearance	0.07 in1.8 mm
a - Effective Center Location³	-0.34 in-8.6 mm

Basic Load Ratings

C90 - Dynamic Radial Rating (90 million revolutions)⁴	17500 lbf77800 N
C1 - Dynamic Radial Rating (1 million revolutions)⁵	67500 lbf300000 N
C0 - Static Radial Rating	98500 lbf438000 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	9960 lbf44300 N

Factors

K - Factor⁷	1.76
e - ISO Factor⁸	0.33
Y - ISO Factor⁹	1.8
G1 - Heat Generation Factor (Roller-Raceway)	203.6
G2 - Heat Generation Factor (Rib-Roller End)	45.9
Cg - Geometry Factor¹⁰	0.0981

Taper Roller Bearing factory price 100*157*42mm HM220149 - HM220110 good quality 0

The sunset and the lone duck fly together, the complementary bearing

together

NUP309	NUP2206	NUP206	NUP2208=210	NUP207	NUP207/NUP306	NUP309	T7FC065
T7FC055	NUP2207	6305M	NUP307=110	NUP307	30309D	30312D	NUP207
T7FC055	NUP2207	4T-30307	30312	NUP307	30312D	30314D
32207	NUP207=120	NUP306	30312D	NUP2208	NUP2209	30312D
32205	NUP2209=160	NUP307	30312D	NUP2211	NUP2209	6008
T7FC060	NUP2207=140	HMK3525+IR	NUP310	NUP308	NUP2209	NUP307
NUP207	NUP2206=130	30309D	NUP308	NUP309	NUP2212	30311D
6213	NUP309=180	30210	NUP306	NUP309	NUP2212	T7FC055
NUP308	NUP309=180	30210	NUP307	NUP2212	NUP2211	NIP2310
NUP309	NUP310	30311D	NUP205E	30312D=155	30312D=155	NUP208E

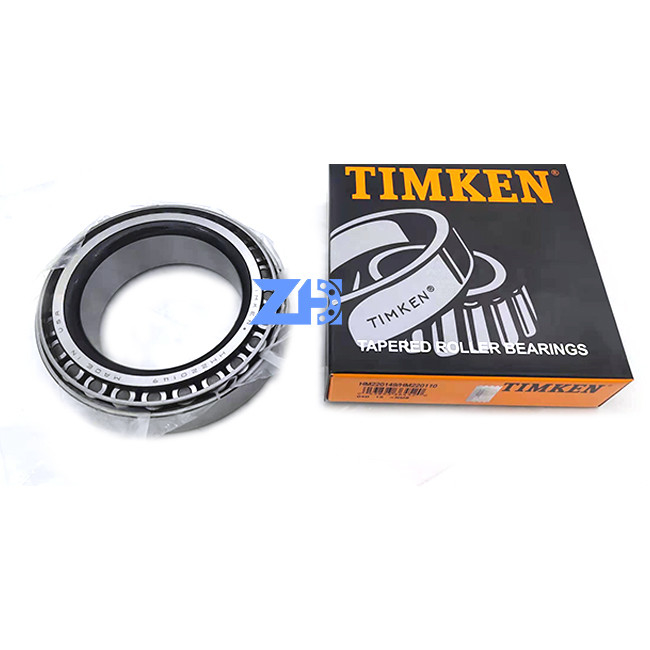

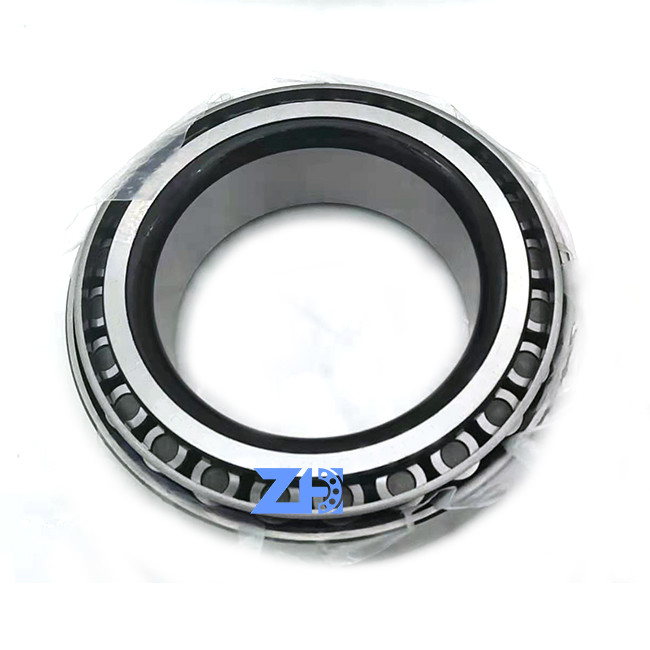

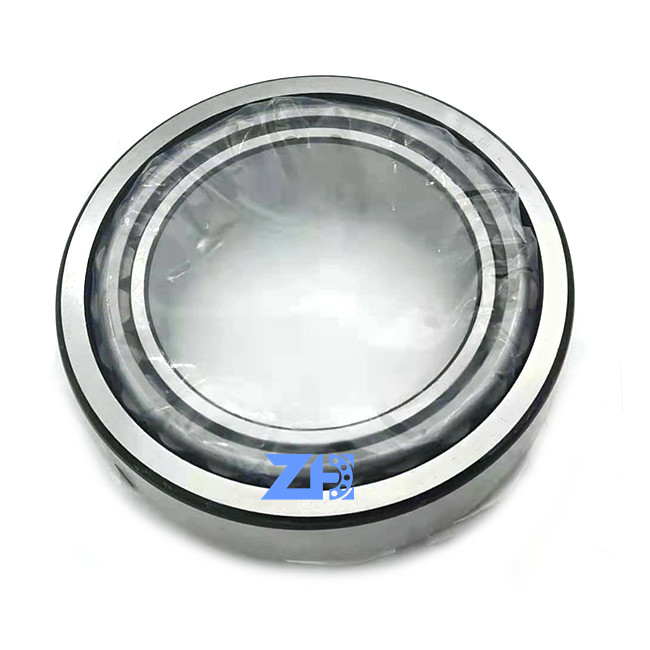

Picture Show
Taper Roller Bearing factory price 100*157*42mm HM220149 - HM220110 good quality 1

FAQ
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.

Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.

Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.

Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.

Why choose us?
1. Let’s talk—we have NO barrier in language.
2. Request for more item information---there are nearly 2000 products for your option!
3. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a ready products!
