| Place of Origin: | China |
| Brand Name: | ZH |
| Certification: | IS09001 |
| Model Number: | 22320CA |
| Minimum Order Quantity: | 1 Pieces |
|---|---|
| Price: | interview |
| Packaging Details: | carton |
| Delivery Time: | 2-5 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30000 Set/Sets per Month |
| Product Name: | Spherical Roller Bearing | Model: | 22320CA |
|---|---|---|---|
| Quality: | Good Quality | MOQ: | 1 |
| Material: | CHROME STEEL | Price: | Factory Price |
| Supply: | 30000 Set/Sets Per Month | Size: | 100*215*73mm |
| High Light: | 22320CA Spherical Roller Bearing,22320W33 Spherical Roller Bearing |
||
22320CA 22320W33 22320E 100*215*73mm P0 P5 P3 P2 Quality ank CHROME STEEL Spherical Roller Bearing
Product introduction(Good Bearing can give you good mood)
22320CA Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. sphericals feature the industry’s highest load rating: a full 18% higher than a standard spherical roller bearing. This level of quality means at least a 75% extension of service life.
| d |
100 mm
|
Bore diameter |
|---|---|---|
| D |
215 mm
|
Outside diameter |
| B |
73 mm
|
Width |
| d2 |
≈130 mm
|
Shoulder diameter of inner ring |
| D1 |
≈184 mm
|
Shoulder/recess diameter of outer ring |
| b |
11.1 mm
|
Width of lubrication groove |
| K |
6 mm
|
Diameter of lubrication hole |
| r1,2 |
min.3 mm
|
Chamfer dimension |
| da |
min.114 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.201 mm
|
Diameter of housing abutment |
| ra |
max.2.5 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
847 kN
|
|---|---|---|
| Basic static load rating | C0 |
950 kN
|
| Fatigue load limit | Pu |
88 kN
|
| Reference speed |
2 400 r/min
|
|
| Limiting speed |
3 000 r/min
|
|
| Limiting value | e |
0.33
|
| Calculation factor | Y1 |
2
|
| Calculation factor | Y2 |
3
|
| Calculation factor | Y0 |
2
|
| d |
100 mm
|
Bore diameter |
|---|---|---|
| D |
215 mm
|
Outside diameter |
| B |
73 mm
|
Width |
| d2 |
≈130 mm
|
Shoulder diameter of inner ring |
| D1 |
≈184 mm
|
Shoulder/recess diameter of outer ring |
| b |
11.1 mm
|
Width of lubrication groove |
| K |
6 mm
|
Diameter of lubrication hole |
| r1,2 |
min.3 mm
|
Chamfer dimension |
22320CA Collection
| NUP207 | KMF160-PC360-7 | 15578 | NUP309 | NUP206=100 | NUP2211=250 | 30309D=110 | T7FC055=300 | M5X180 |
| HMS072 | MSG-27P | NUP306 | NUP206 | NUP2208=210 | NUP207 | NUP207/NUP306 | NUP309 | 32205 |
| AP5S67 | AP5S53 | NUP307 | 6305M | NUP307=110 | NUP307 | 30309D | 30312D | T7FC060 |
| 11749/11710 | M5X130 | NUP205E | TM09 | M2X146 | NUP307 | 30312D | 30314D | NUP207 |
| NUP2310 | 30314D=250 | NUP207=120 | GM18VL | M2X150 | NUP2208 | NUP2209 | 30312D | 6213 |
| 30312D | NUP309 | NUP2209=160 | KMF125 | M2X170 | NUP2211 | NUP2209 | 6008 | NUP308 |
| 30312D | T7FC055 | NUP2207=140 | HMK3525+IR | M2X210 | NUP308 | NUP2209 | NUP307 | KMF41-PC60-7 |
| NUP308 | T7FC055 | NUP2206=130 | 30309D | HMGF57 | NUP309 | NUP2212 | 30311D | M2X63 |
| DNB50/60 | NUP310 | NUP309=180 | 30210 | SG08 | NUP309 | NUP2212 | T7FC055 | |
| HMGF35 | JMF250 | NUP309=180 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 | |
| HMGF36 | NUP309 | NUP310 | 30311D | JMV-44/22 | 30312D=155 | 30312D=155 | NUP208E | |
| HMGC48 | JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP308=140 | |
| 4T-30307 | JMF23 | NUP2207 | SG025 | GM35VL | MCB172 | 32207 | SG20 | |
| NUP306 | JMF151 | NUP2207 | SG02 | GM38VB | HMT36FA | 30312 | MAG85 | |
| NUP307 | JMF195 | JMV-53/31 | SG15 | MAG150 | HMGC32 | MAG150 | MAG120 |

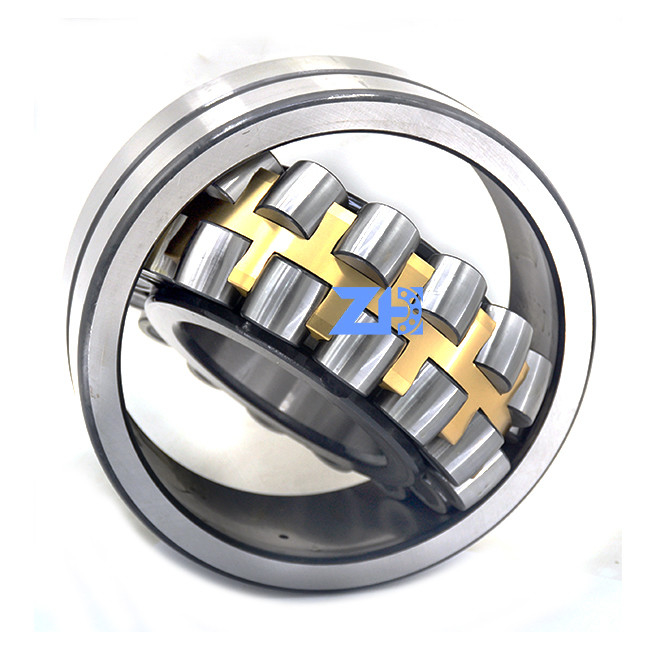

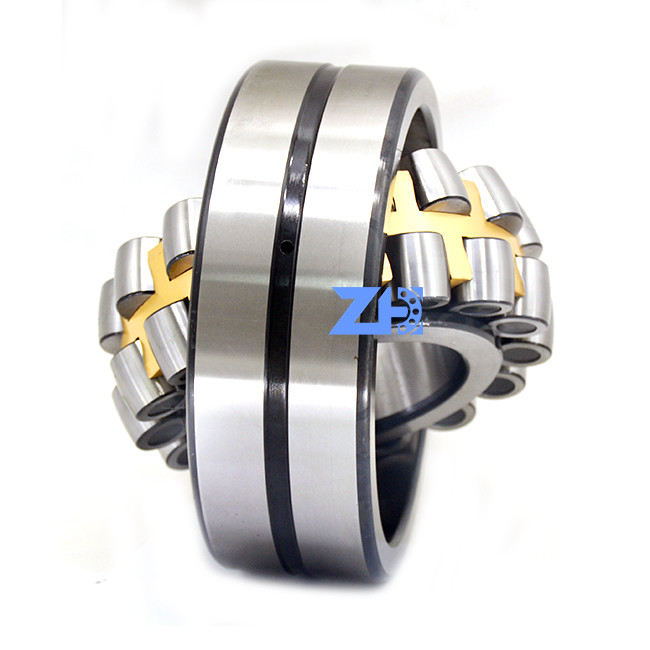

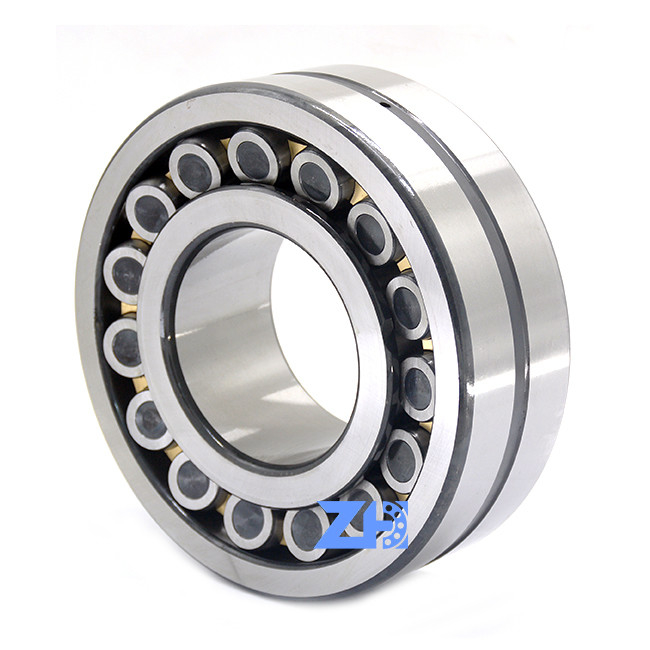

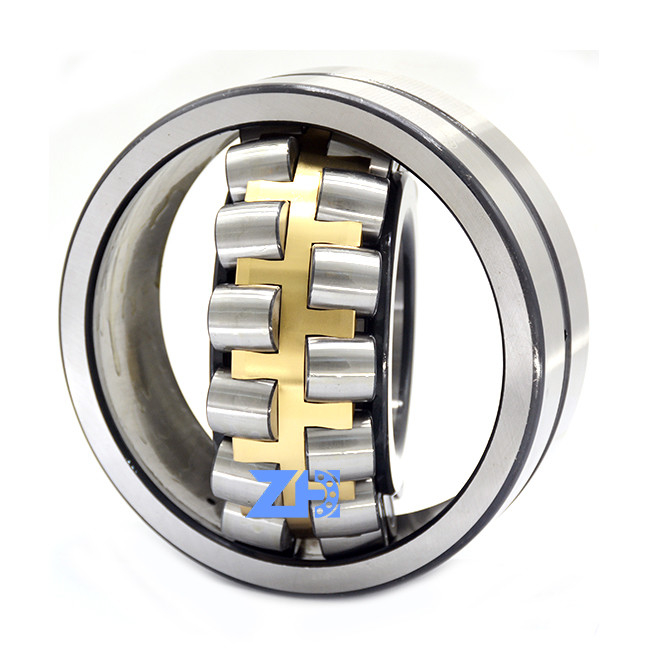

Picture show
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
Why choose us? 1. Let’s talk—we have NO barrier in language.
2. Request for more item information---there are nearly 2000 products for your option!
3. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a ready product.
