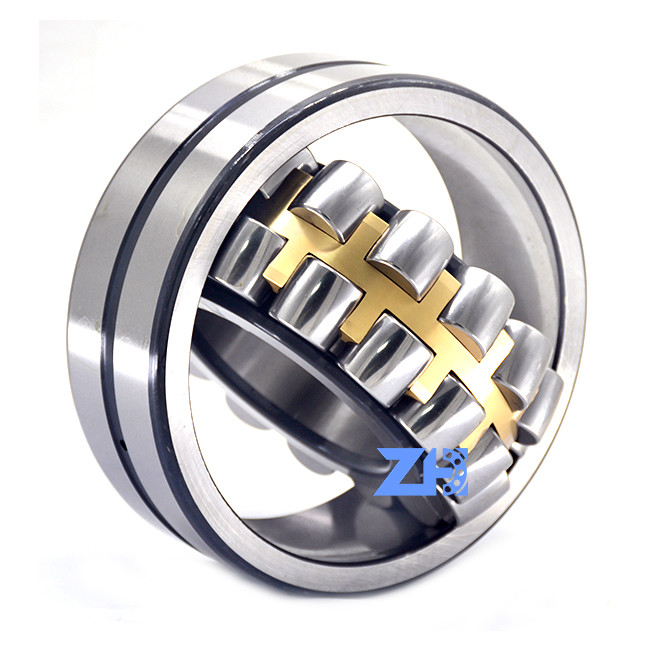

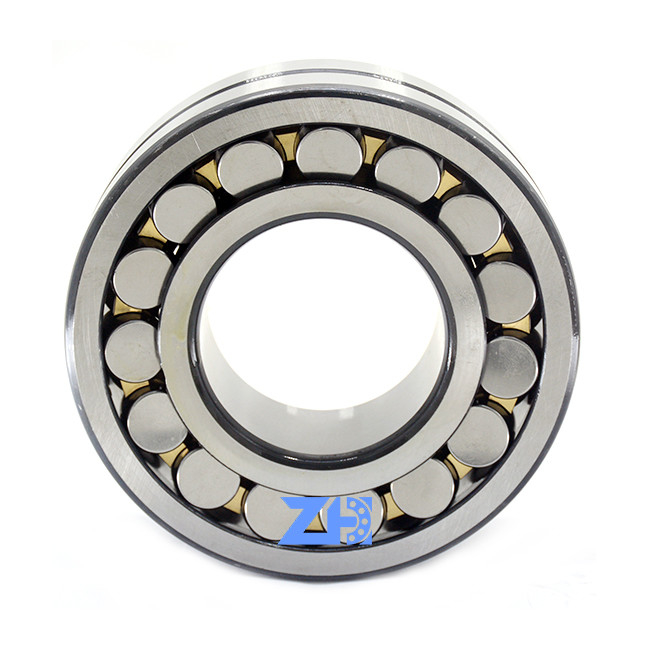

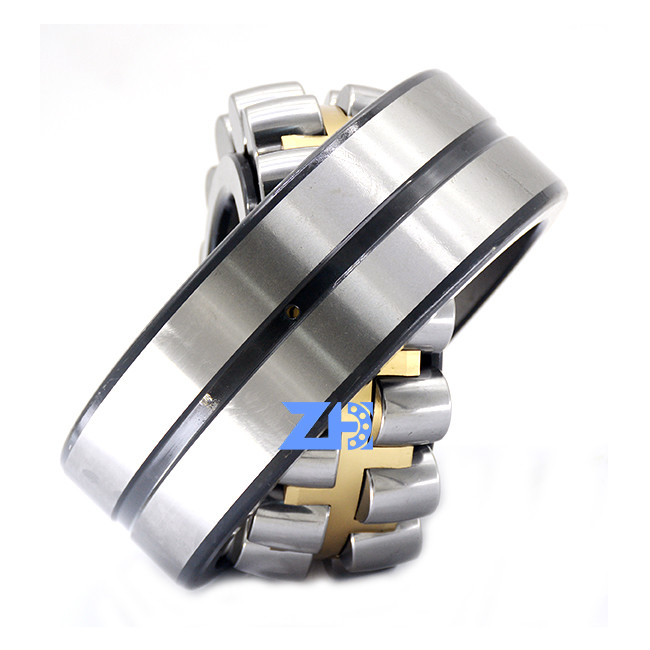

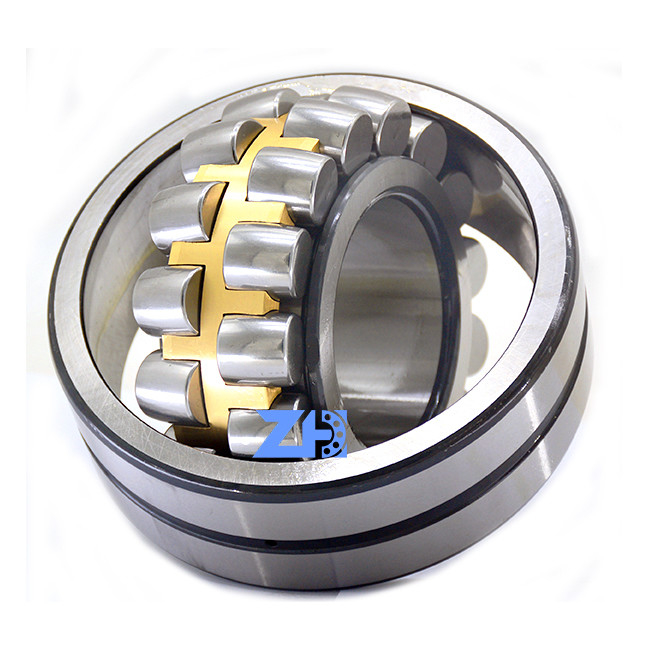

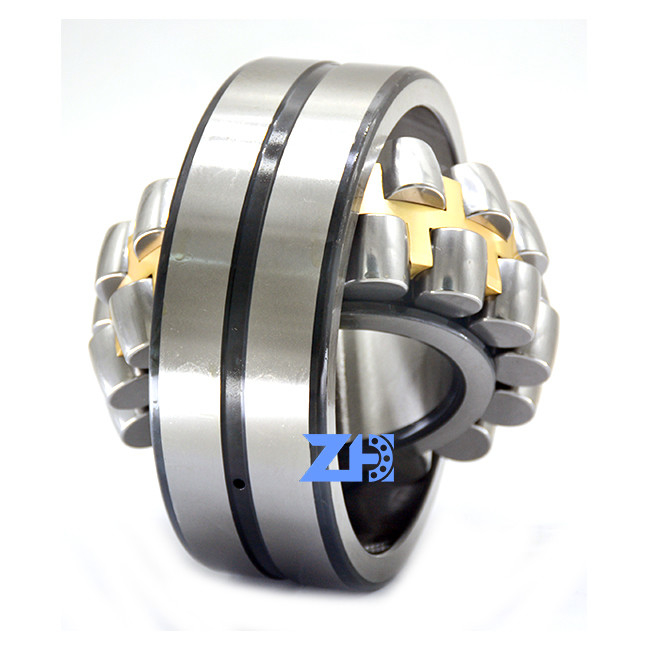

22319CA 22319E 22319W33 Spherical Roller Bearing 95*200*67mm

22319CA 22319E 22319W33 Spherical Roller Bearing 95*200*67mm

  • 22319CA 22319E 22319W33 Spherical Roller Bearing  95*200*67mm
  • 22319CA 22319E 22319W33 Spherical Roller Bearing  95*200*67mm
  • 22319CA 22319E 22319W33 Spherical Roller Bearing  95*200*67mm
  • 22319CA 22319E 22319W33 Spherical Roller Bearing  95*200*67mm
  • 22319CA 22319E 22319W33 Spherical Roller Bearing  95*200*67mm
22319CA 22319E 22319W33 Spherical Roller Bearing  95*200*67mm
Product Details:
Place of Origin: China
Brand Name: ZH
Certification: IS09001
Model Number: 22319CA
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Packaging Details: Your requirement
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000 Set/Sets per Month
Contact Now
Detailed Product Description
Price: Factory Price Product Name: Spherical Roller Bearing
Model: 22319CA Quality: Good Quality
MOQ: 1 Supply: 30000 Set/Sets Per Month
Material: CHROME STEEL Size: 95*200*67mm
High Light:

22319W33 Spherical Roller Bearing

,

Spherical Roller Bearing 22319CA

High Quality 22319CA 22319E 22319W33 Spherical Roller Bearing CHROME STEEL Material 95*200*67mm


Product introduction(Good price and good Bearings)
22319CA The unique design also leads to: Reduced friction torque (as much as 30% less), offering lower operating temperature, with lower power and lubricant consumption. Appreciably increased operating speed, allowing an extended scope of applications. Spherical roller bearings are due to their design subjected to significant axial and radial loads.The rolling element is not just a simple cylinder, but a cone or cylindrical rollers with spherical surface. The dimensions of the raceways and the profile of the rolling elements can be designed in such a way that they have high load carrying capacity.
22319CA 22319E 22319W33 Spherical Roller Bearing  95*200*67mm 0
          22319CA 22319E 22319W33 Spherical Roller Bearing  95*200*67mm 1



Dimensions

d
95 mm
Bore diameter
D
200 mm
Outside diameter
B
67 mm
Width
d2
118 mm
Shoulder diameter of inner ring
D1
168 mm
Shoulder/recess diameter of outer ring
b
11.1 mm
Width of lubrication groove
K
6 mm
Diameter of lubrication hole
r1,2
min.3 mm
Chamfer dimension



Abutment dimensions



da
min.109 mm
Diameter of shaft abutment
Da
max.186 mm
Diameter of housing abutment
ra
max.2.5 mm
Radius of fillet



Calculation data



Basic dynamic load rating C
699 kN
Basic static load rating C0
765 kN
Fatigue load limit Pu
73.5 kN
Reference speed
2 600 r/min
Limiting speed
3 400 r/min
Limiting value e
0.33
Calculation factor Y1
2
Calculation factor Y2
3
Calculation factor Y0
2
Permissible rotational acceleration for oil lubrication
628 m/s²
Permissible linear acceleration for oil lubrication
196 m/s²


22319CA Collection



HMS072 MSG-27P NUP306 NUP206 NUP2208=210 NUP207 NUP207/NUP306 NUP309 32205
AP5S67 AP5S53 NUP307 6305M NUP307=110 NUP307 30309D 30312D T7FC060
11749/11710 M5X130 NUP205E TM09 M2X146 NUP307 30312D 30314D NUP207
NUP2310 30314D=250 NUP207=120 GM18VL M2X150 NUP2208 NUP2209 30312D 6213
30312D NUP309 NUP2209=160 KMF125 M2X170 NUP2211 NUP2209 6008 NUP308
30312D T7FC055 NUP2207=140 HMK3525+IR M2X210 NUP308 NUP2209 NUP307 KMF41-PC60-7
NUP308 T7FC055 NUP2206=130 30309D HMGF57 NUP309 NUP2212 30311D M2X63
DNB50/60 NUP310 NUP309=180 30210 SG08 NUP309 NUP2212 T7FC055
HMGF35 JMF250 NUP309=180 30210 GM17VA NUP2212 NUP2211 NIP2310
HMGF36 NUP309 NUP310 30311D JMV-44/22 30312D=155 30312D=155 NUP208E
HMGC48 JMF29 NUP2206 SG04 GM35VA M2X96 M2X120 NUP308=140
4T-30307 JMF23 NUP2207 SG025 GM35VL MCB172 32207 SG20
NUP306 JMF151 NUP2207 SG02 GM38VB HMT36FA 30312 MAG85
NUP307 JMF195 JMV-53/31 SG15 MAG150 HMGC32 MAG150 MAG120

Picture show
22319CA 22319E 22319W33 Spherical Roller Bearing  95*200*67mm 222319CA 22319E 22319W33 Spherical Roller Bearing  95*200*67mm 322319CA 22319E 22319W33 Spherical Roller Bearing  95*200*67mm 4

22319CA 22319E 22319W33 Spherical Roller Bearing  95*200*67mm 5
