Place of Origin: | CHINA |
Brand Name: | ZH |
Certification: | IS09001 |
Model Number: | 22315CC |
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | interview |
Packaging Details: | handok ,jic ,neutral packing ,standard exporting packing or as required |
Delivery Time: | in stock |
Payment Terms: | T/T, Western Union,,, L/C, Western Union |
Supply Ability: | 30000 Set/Sets per Month |
Product Name: | Spherical Roller Bearing | Model: | 22315CC |
---|---|---|---|
MOQ: | 1 | Material: | CHROME STEEL |
Price: | Factory Price | Supply: | 30000 Set/Sets Per Month |
Packaging: | Your Requirement | Quality Level: | P0、P2、P4、p5、p6 |
QUality: | Good | Size: | 70*160*55mm |
High Light: | 191-1384,E306 Excavator Hydraulic Parts,E306 Final Drive |
22315CC 22315C 22315CA 22315CB 22315ECK 22315E 22315W P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing
Product introduction
22315CC is A full 18% higher than a standard spherical roller bearing. This level of quality means at least a 75% extension of service life
(Factory price, you search for the last factory)
The unique design also leads to: Reduced friction torque (as much as 30% less), offering lower operating temperature, with lower power and lubricant consumption. Appreciably increased operating speed,
allowing an extended scope of applications. High temperature capacity of up to 200°C (392°F) for metallic cage bearings. Dimensional stability is ensured by a specific heat treatment.
A +/- 0.5° misalignment capability, without reducing the load capacity, and up to 1° 30’ in case of low loads.
d |
75 mm
|
Bore diameter |
---|---|---|
D |
160 mm
|
Outside diameter |
B |
55 mm
|
Width |
d2 |
≈92.8 mm
|
Shoulder diameter of inner ring |
D1 |
≈135 mm
|
Shoulder/recess diameter of outer ring |
b |
8.3 mm
|
Width of lubrication groove |
K |
4.5 mm
|
Diameter of lubrication hole |
r1,2 |
min.2.1 mm
|
Chamfer dimension |
da |
min.87 mm
|
Diameter of shaft abutment |
---|---|---|
Da |
max.148 mm
|
Diameter of housing abutment |
ra |
max.2 mm
|
Radius of fillet |
Basic dynamic load rating | C |
462 kN
|
---|---|---|
Basic static load rating | C0 |
475 kN
|
Fatigue load limit | Pu |
48 kN
|
Reference speed |
3 200 r/min
|
|
Limiting speed |
4 300 r/min
|
|
Limiting value | e |
0.35
|
Calculation factor | Y1 |
1.9
|
Calculation factor | Y2 |
2.9
|
Calculation factor | Y0 |
1.8
|
Mix and match for better use
HPV132 | AP12 | A8V0160 | M2X150 | K3V140DT | K3V180 | A10VS063 | HPV0102 |
HPV140 | AP2D25 | A8V0200 | M5X180 | K3V180DT | k3v140 | A10VS071 | HPV0118 |
HPV165 | AP2D18 | A10VO28 | M2X63 | K5V140DTP | HPV102 A8V160 | A8V0107 | |
K5V200DTH | HPV132 | PVB92 | VRD63 | K5V160DTP | HPV118 | K3SP36C | |
K5V200DPH | HPV140 | PSVD2-27 | SPK10/10 | K5V160DP | HPV145 | HPV116 | |
NV111 | SBS120 | K5V80 | AP12 | AP2D36 | M2X146 | HPV145 | |
K7V63 | SBS140 | NVK45 | SG025 | SDV36 | PVK-2B-505 | HPV116/145 |

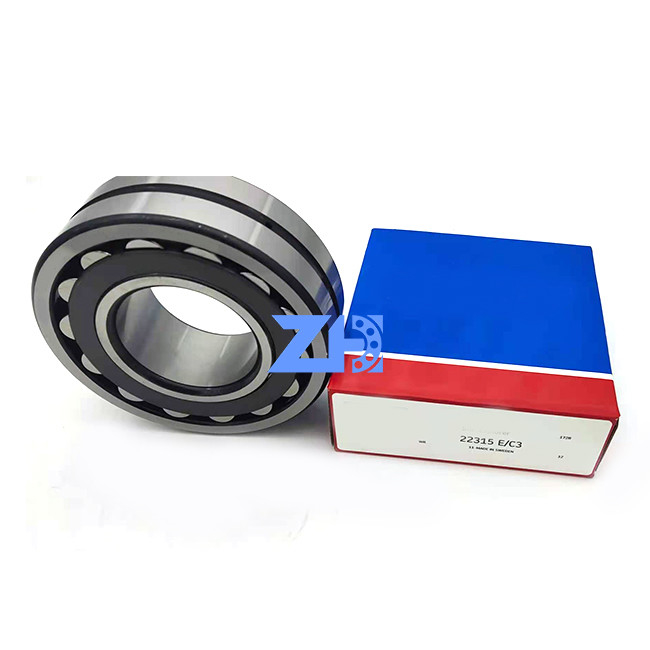

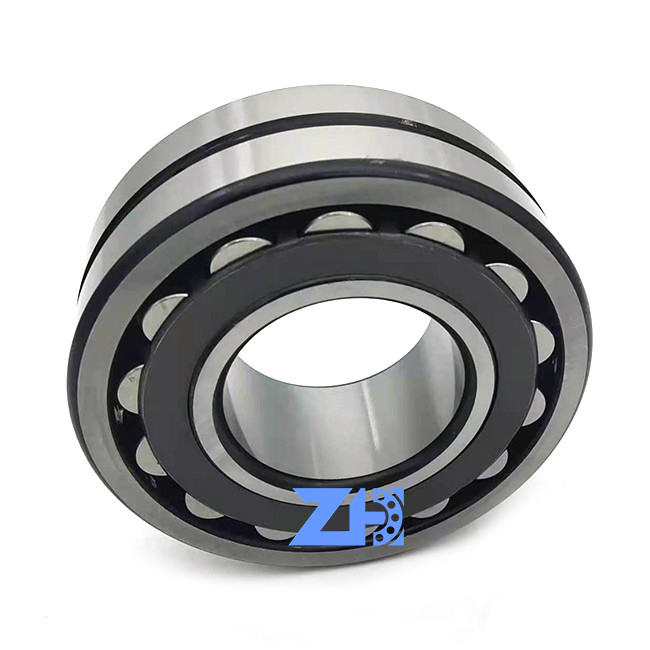

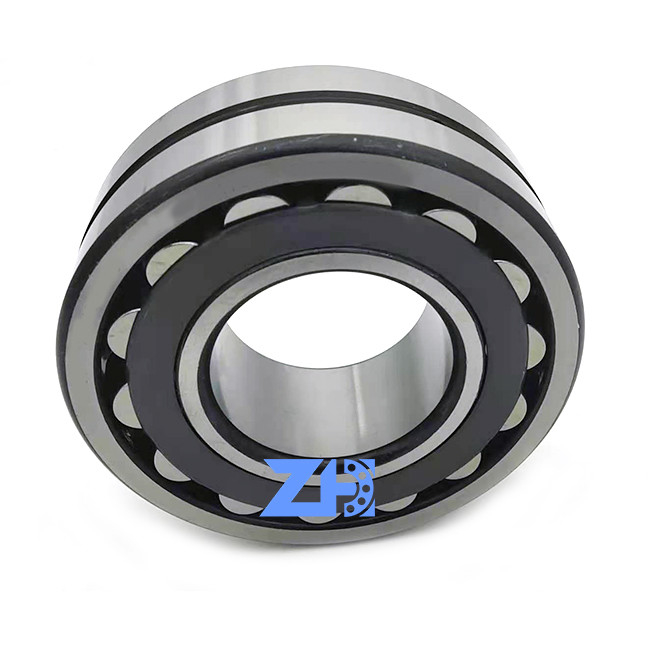

Picture show
FAQ
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
Why choose us?
1. Let’s talk—we have NO barrier in language
2. Request for more item information---there are nearly 2000 products for your option!
3. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a ready products!
