Professional production high quality 22226CCK 22226C 22226CCA Spherical Roller Bearing 130*230*64mm

22226CCK 22226CC 22226CCA 22226W 22226J 22226RS 22226ZZ 22226-2RS 22226W 22226J2Q
 P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing


Product introduction
22226CCK Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. (Our genuine, factory price)

sphericals feature the industry’s highest load rating: a full 18% higher than a standard spherical roller bearing. This level of quality means at least a 75% extension of service life.

The performance of these sphericals is achieved through the use of very high quality raw materials and optimized rolling element geometry. The unique design also leads to:

Reduced friction torque (as much as 30% less), offering lower operating temperature, with lower power and lubricant consumption.


• 22226CCK/W33 , 22226CAK/W33 (inner diameter = 130 mm, outer diameter = 230 mm, thickness = 64 mm).
• Bearing steel long life bearing, smooth, low noise.
• Self-aligning roller bearings with tapered holes, before use, please add lubricating oil or grease
• The taper of the inner hole of tapered bearing is 1:12 and the suffix is K.



  Dimensions

  d	130 mm	Bore diameter
  D	230 mm	Outside diameter
  B	64 mm	Width
  d2	≈152 mm	Shoulder diameter of inner ring
  D1	≈201 mm	Shoulder/recess diameter of outer ring
  b	11.1 mm	Width of lubrication groove
  K	6 mm	Diameter of lubrication hole
  r1,2	min.3 mm	Chamfer dimension



  Abutment dimensions

  Da	max.216 mm	Diameter of housing abutment
  ra	max.2.5 mm	Radius of fillet

  Calculation data

  Basic dynamic load rating	C	758 kN
  Basic static load rating	C0	930 kN
  Fatigue load limit	Pu	88 kN
  Reference speed		2 600 r/min
  Limiting speed		3 600 r/min
  Limiting value	e	0.27
  Calculation factor	Y1	2.5
  Calculation factor	Y2	3.7
  Calculation factor	Y0	2.5

• Recommended bearings


  K5V200DTH	HPV132	PVB92	VRD63
  K5V200DPH	HPV140	PSVD2-27	SPK10/10
  NV111	SBS120	K5V80	AP12
  K7V63	SBS140	NVK45	SG025
  HPV35	A8VO200	A8V055	SG02
  HPV75	A8V107	A8V86	SG04
  HPV55	K5V140	A8V080	SG08
  HPV90	A8V55	A8V107	SG12
  HPV95	A10FD28	A8V115	SG20
  HPV95N	A10VD43	A8V0107	SG23
  HPV160	k5v200	A8V0140	M2X120 M5X130
  HPV132	AP12	A8V0160	M2X150
  HPV140	AP2D25	A8V0200	M5X180
  HPV165	AP2D18	A10VO28	M2X63

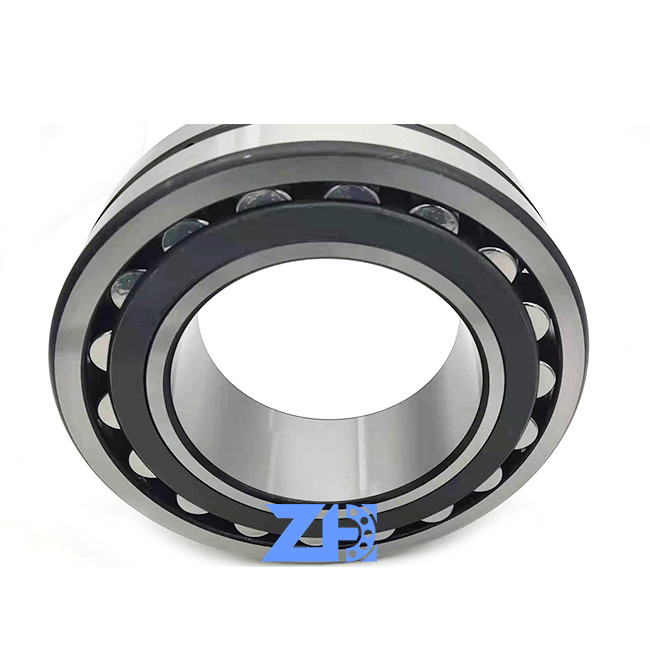

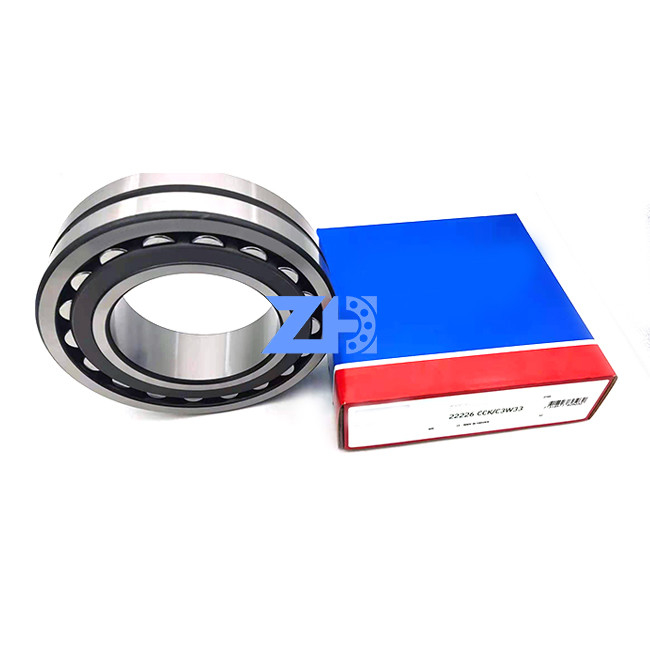

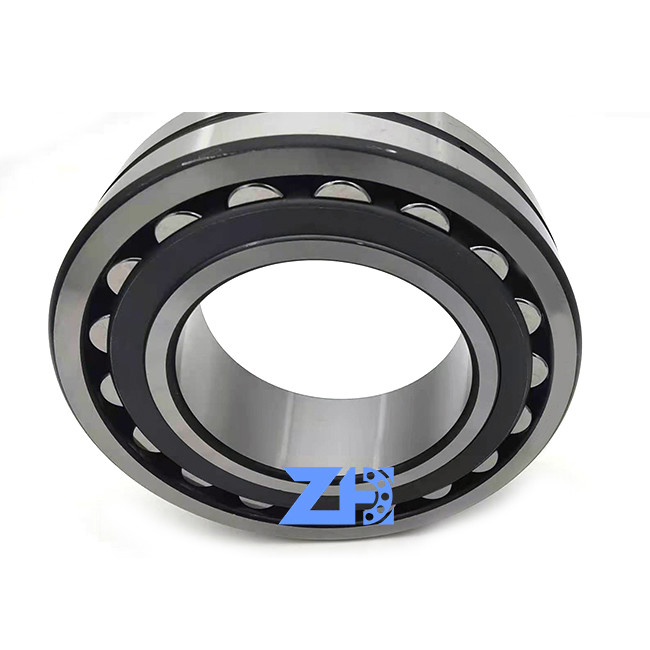

  Photo show



  FAQ



  Q1: I want to buy your products, how can I pay?
  A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.


  Q2: How can you guarantee the quality?
  A: If you meet with quality problem, we promise to replace goods or return your funds.


  Q3: If we don’t find what we want on your website, what should we do?
  A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.


  Q4: Can we buy 1 pc of each item for quality testing?
  A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.


  Why choose us?
  1. Let’s talk—we have NO barrier in language
  2. Request for more item information---there are nearly 2000 products for your option!
  3. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a ready products!
