| Place of Origin: | CHINA |
| Brand Name: | ZH |
| Certification: | IS09001 |
| Model Number: | 22322CA |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | interview |
| Packaging Details: | neutral packing ,standard exporting packing or as required |
| Delivery Time: | 5-8 work day |
| Payment Terms: | T/T, Western Union,, |
| Supply Ability: | 30000 Set/Sets per Month |
| Product Name: | Spherical Roller Bearing | Model: | 22322CA |
|---|---|---|---|
| MOQ: | 1 | Material: | CHROME STEEL |
| Supply: | 30000 Set/Sets Per Month | Quality: | High Quality |
| Quality Level: | P0、P2、P4、p5、p6 | Size: | 110x240x80 Mm |
| High Light: | 22322J2Q Spherical Roller Bearing,Spherical Roller Bearing 22322W33 |
||
Long service time 22322CA 22322E 22322J2Q 22322W33 CHROME STEEL 110x240x80 mm Spherical Roller Bearing
Production introduction(good price and high )
22322CA The self-aligning roller bearing has a double row of rollers, the outer ring has a common spherical raceway, the inner ring has two raceways and is tilted at an Angle relative to the bearing axis. This clever structure makes it have automatic aligning performance, so it is not easy to be affected by the Angle of shaft and bearing box seat on the error or shaft bending, and is suitable for installation error or shaft deflection caused by Angle error occasions. The bearing can not only bear radial load, but also bear bi-directional axial load.
| d |
110 mm
|
Bore diameter |
|---|---|---|
| D |
240 mm
|
Outside diameter |
| B |
80 mm
|
Width |
| d2 |
≈143 mm
|
Shoulder diameter of inner ring |
| D1 |
≈204 mm
|
Shoulder/recess diameter of outer ring |
| b |
13.9 mm
|
Width of lubrication groove |
| K |
7.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.3 mm
|
Chamfer dimension |
| da |
min.124 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.226 mm
|
Diameter of housing abutment |
| ra |
max.2.5 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
989 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 120 kN
|
| Fatigue load limit | Pu |
100 kN
|
| Reference speed |
2 000 r/min
|
|
| Limiting speed |
2 800 r/min
|
|
| Limiting value | e |
0.33
|
| Calculation factor | Y1 |
2
|
| Calculation factor | Y2 |
3
|
| Calculation factor | Y0 |
2
|
| da |
min.124 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.226 mm
|
Diameter of housing abutment |
| ra |
max.2.5 mm
|
Radius of fillet |
22322CA Collection
| T7FC065 | KMF125-PC200-8 | NUP206E | NUP309=180 | NUP2212=220 | 6305 | NUP308 | NUP308=140 | KMF90-PC200-6 |
| NUP207 | KMF160-PC360-7 | 15578 | NUP309 | NUP206=100 | NUP2211=250 | 30309D=110 | T7FC055=300 | M5X180 |
| HMS072 | MSG-27P | NUP306 | NUP206 | NUP2208=210 | NUP207 | NUP207/NUP306 | NUP309 | 32205 |
| AP5S67 | AP5S53 | NUP307 | 6305M | NUP307=110 | NUP307 | 30309D | 30312D | T7FC060 |
| 11749/11710 | M5X130 | NUP205E | TM09 | M2X146 | NUP307 | 30312D | 30314D | NUP207 |
| NUP2310 | 30314D=250 | NUP207=120 | GM18VL | M2X150 | NUP2208 | NUP2209 | 30312D | 6213 |
| 30312D | NUP309 | NUP2209=160 | KMF125 | M2X170 | NUP2211 | NUP2209 | 6008 | NUP308 |
| 30312D | T7FC055 | NUP2207=140 | HMK3525+IR | M2X210 | NUP308 | NUP2209 | NUP307 | KMF41-PC60-7 |
| NUP308 | T7FC055 | NUP2206=130 | 30309D | HMGF57 | NUP309 | NUP2212 | 30311D | M2X63 |
| DNB50/60 | NUP310 | NUP309=180 | 30210 | SG08 | NUP309 | NUP2212 | T7FC055 | |
| HMGF35 | JMF250 | NUP309=180 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 | |
| HMGF36 | NUP309 | NUP310 | 30311D | JMV-44/22 | 30312D=155 | 30312D=155 | NUP208E | |
| HMGC48 | JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP308=140 | |
| 4T-30307 | JMF23 | NUP2207 | SG025 | GM35VL | MCB172 | 32207 | SG20 | |
| NUP306 | JMF151 | NUP2207 | SG02 | GM38VB | HMT36FA | 30312 | MAG85 | |
| NUP307 | JMF195 | JMV-53/31 | SG15 | MAG150 | HMGC32 | MAG150 | MAG120 |

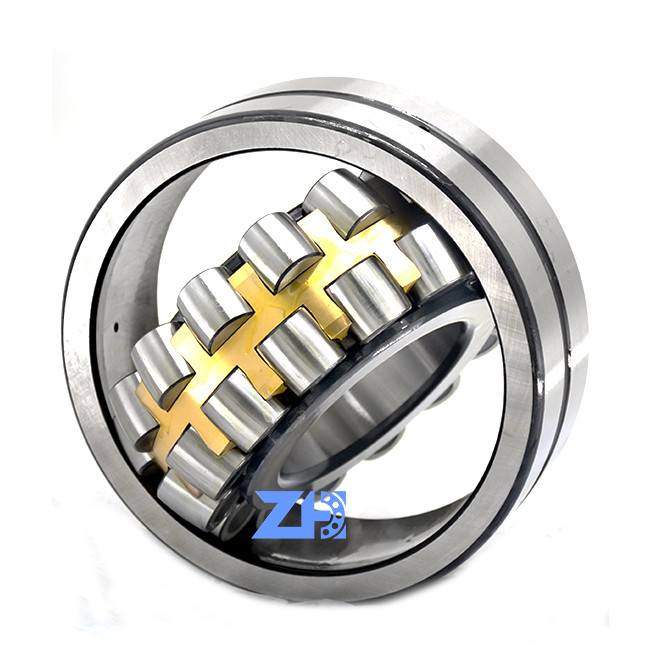

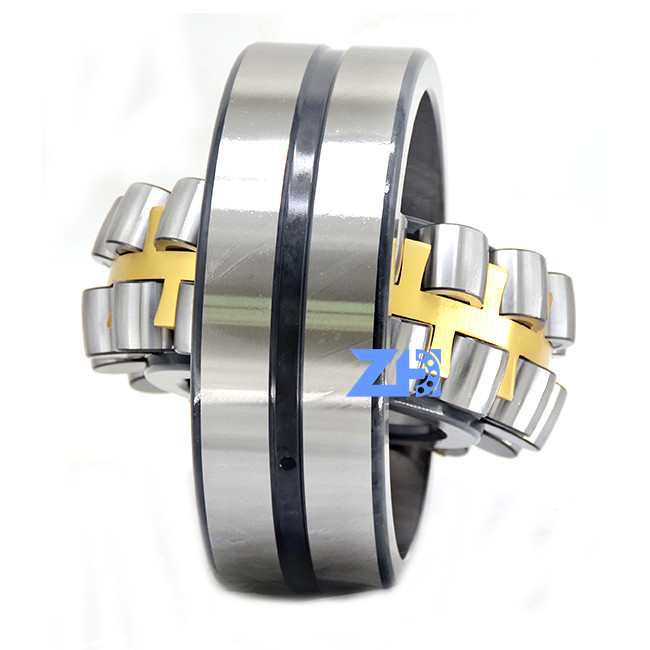

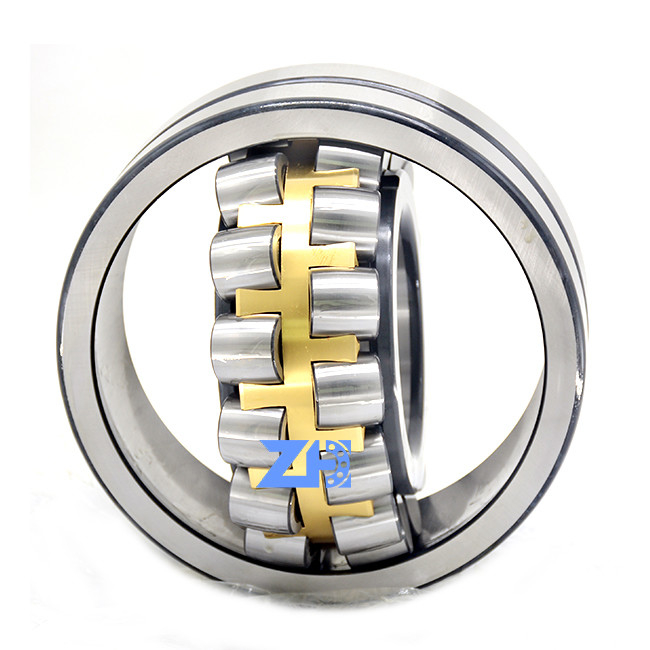

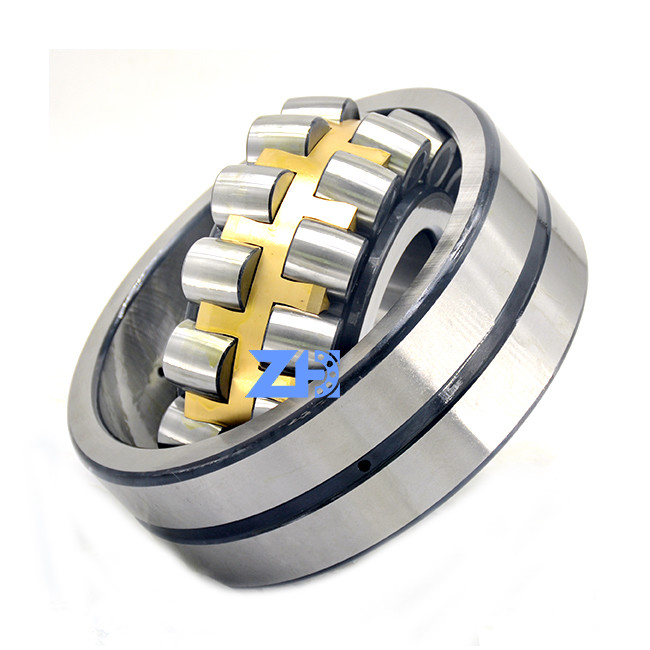

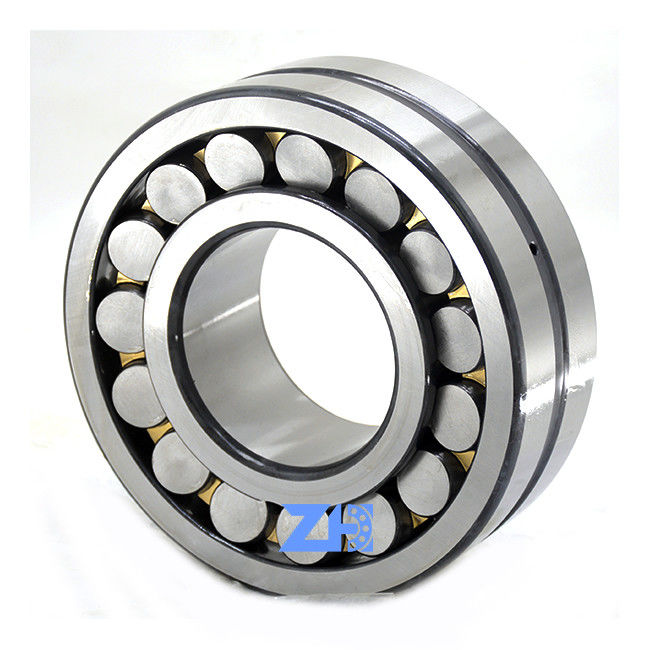

Picture show
