Place of Origin: | CHINA |
Brand Name: | ZH |
Certification: | IS09001 |
Model Number: | 22212CA |
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | interview |
Packaging Details: | neutral packing ,standard exporting packing or as required |
Delivery Time: | 5-8 work day |
Payment Terms: | T/T, Western Union,, |
Supply Ability: | 30000 Set/Sets per Month |
Product Name: | Spherical Roller Bearing | Model: | 22212CA |
---|---|---|---|
Packing: | Neutral Packing | MOQ: | 1 |
Material: | CHROME STEEL | Quality Ank: | P0、P2、P4、p5、p6 |
Supply: | 30000 Set/Sets Per Month | Size: | 60*110*28 |

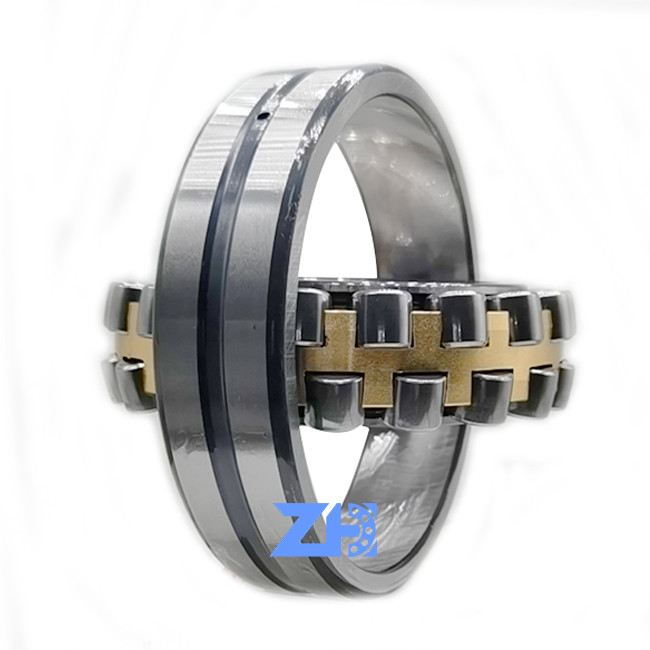

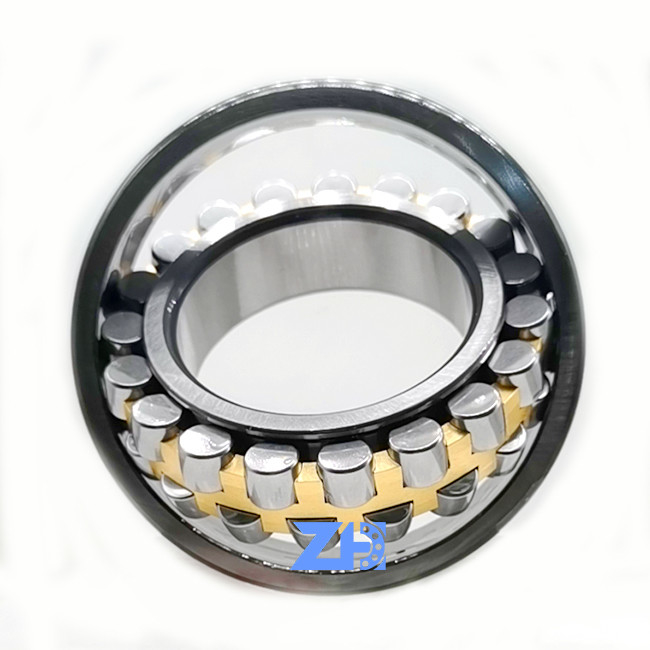

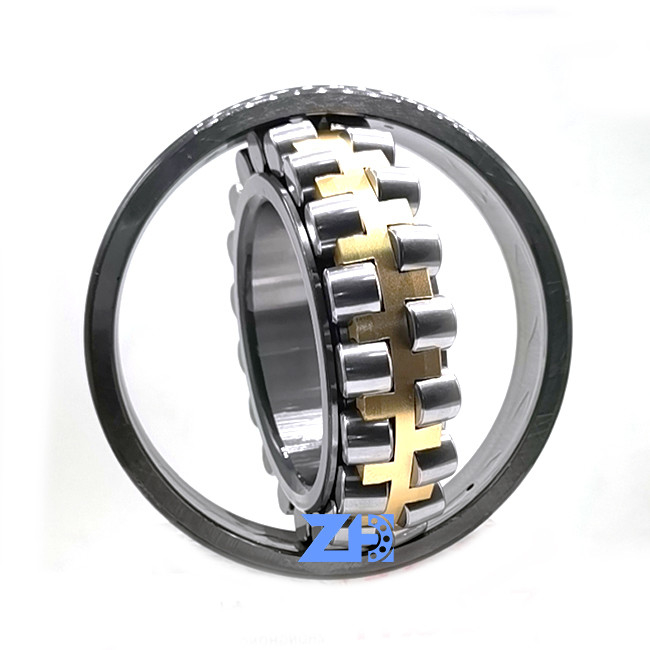

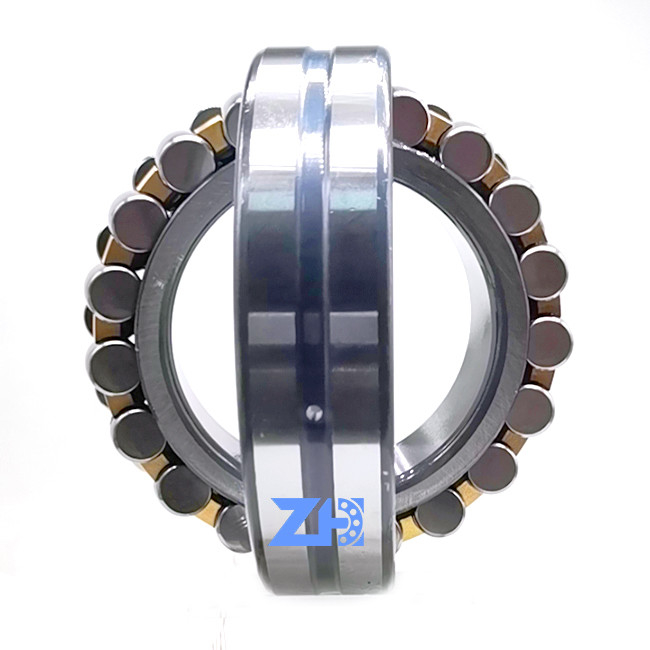

22212CA 22212CAK 22212CARS P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME Spherical Roller Bearings
Product introduction
Spherical roller bearings 22212 with two rollers, mainly bear radial load, but also can withstand axial load in either direction. A high radial load capacity, especially suitable for heavy loads or vibration, but can not bear the pure axial load. This kind of bearing outer ring raceway is spherical shape, so the good performance of its self-aligning, can compensate concentricity error.
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
d |
60 mm
|
Bore diameter |
---|---|---|
D |
110 mm
|
Outside diameter |
B |
28 mm
|
Width |
d2 |
≈72.7 mm
|
Shoulder diameter of inner ring |
D1 |
≈96.5 mm
|
Shoulder/recess diameter of outer ring |
b |
6 mm
|
Width of lubrication groove |
K |
3 mm
|
Diameter of lubrication hole |
r1,2 |
min.1.5 mm
|
Chamfer dimension |
da |
min.69 mm
|
Diameter of shaft abutment |
---|---|---|
Da |
max.101 mm
|
Diameter of housing abutment |
ra |
max.1.5 mm
|
Radius of fillet |
Basic dynamic load rating | C |
159 kN
|
---|---|---|
Basic static load rating | C0 |
166 kN
|
Fatigue load limit | Pu |
18.6 kN
|
Reference speed |
5 600 r/min
|
|
Limiting speed |
7 500 r/min
|
|
Limiting value | e |
0.24
|
Calculation factor | Y1 |
2.8
|
Calculation factor | Y2 |
4.2
|
Calculation factor | Y0 |
2.8
|
Bore diameter: | 60mm | Lubrication hole type: | Lubrication Groove & Hole | |
Outside diameter: | 110mm | Operating temperature range: | Maximum of +390 °F | |
Overall width: | 28mm | Cage material: | Steel | |
Bore type: | Tapered Bore | Bearing material: | Steel | |
Outer ring type: | Not Split | Cage type: | Inner Ring Guided | |
Internal clearance: | C3 | Precision rating: | Not Rated | |
Closure type: | Open | Finish/coating: | Uncoated |
The recommended product can be matched with the bearing
MSG-27P | NUP2206 | NUP206 | NUP2208=210 | NUP207 | NUP207/NUP306 | NUP309 | T7FC055 |
AP5S53 | NUP2207 | 6305M | NUP307=110 | NUP307 | 30309D | 30312D | T7FC055 |
M5X130 | NUP2207 | 4T-30307 | 30312 | NUP307 | 30312D | 30314D | 32207 |
M5X180 | NUP207=120 | NUP306 | 30312D | NUP2208 | NUP2209 | 30312D | |
32205 | NUP2209=160 | NUP307 | 30312D | NUP2211 | NUP2209 | 6008 | |
T7FC060 | NUP2207=140 | HMK3525+IR | NUP310 | NUP308 | NUP2209 | NUP307 | |
NUP207 | NUP2206=130 | 30309D | NUP308 | NUP309 | NUP2212 | 30311D | |
6213 | NUP309=180 | 30210 | NUP306 | NUP309 | NUP2212 | T7FC055 | |
NUP308 | NUP309=180 | 30210 | NUP307 | NUP2212 | NUP2211 | NIP2310 | |
NUP309 | NUP310 | 30311D | NUP205E | 30312D=155 | 30312D=155 | NUP208E | |
JMF29 | SG08 | SG04 | GM35VA | M2X96 | M2X120 | NUP308=140 | |
JMF23 | GM17VA | SG025 | GM35VL | MCB172 | M2X146 | T7FC065 | |
JMF151 | JMV-44/22 | SG02 | GM38VB | HMT36FA | M2X150 | NUP207 | |
JMF195 | JMV-53/31 | SG15 | MAG150 | HMGC32 | M2X170 | HMS072 | |
JMF250 | MAG85 | SG20 | TM09 | HMGF35 | M2X210 | AP5S67 | |
M2X55 | MAG120 | KMF41-PC60-7 | GM18VL | HMGF36 | HMGF57 | 11749/11710 | |
M2X63 | MAG150 | KMF90-PC200-6 | KMF125-PC200-7 | HMGC48 | DNB50/60 | NUP2310 |
