Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Brand Name: | NSK NTN |
| Model Number: | NUP206E |
| Certifiexcavatorion: | ISO9001，ISO14001 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | negotiated |
| Packaging Details: | According to customer requirements |
| Delivery Time: | 1-2 work day |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 500 PC per day |
| Place Of Origin: | Shandong, China | Product Name: | Cylindrical Roller Bearing |
|---|---|---|---|
| Weight: | 0.214KG | Specifiexcavatorion: | 30x62x16 Mm |
| Vibration And Noise: | Z0V0 / Z1V1 / Z2V2 / Z3V3 | Material: | Chrome Steel Gcr15Package |
| Precision Rating: | ABEC-1 To ABEC-9 | Service: | OEM ODM |
| Lubriexcavatore: | Oil Grease | Package: | Original Packing |
| Sample: | Avaliable | ||
| High Light: | radial roller bearing,cylinder roller bearing |
||

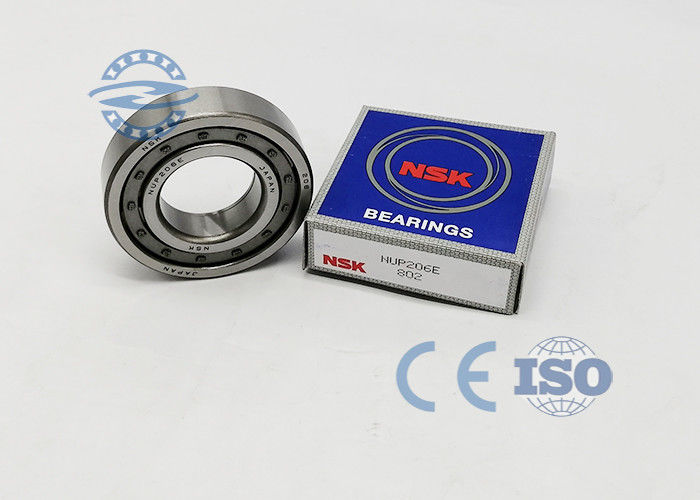

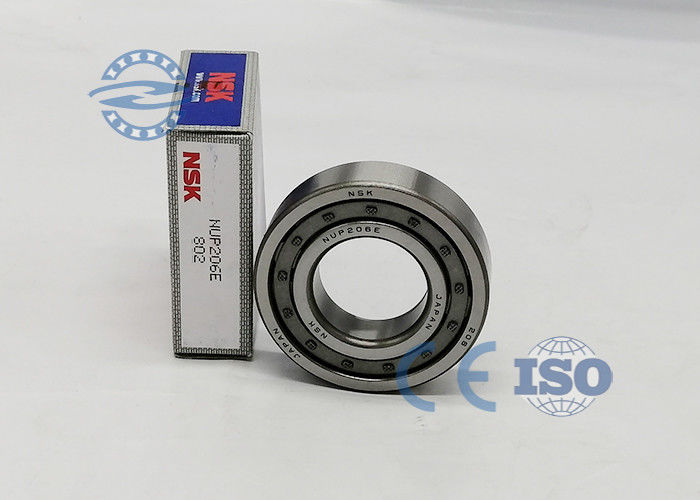

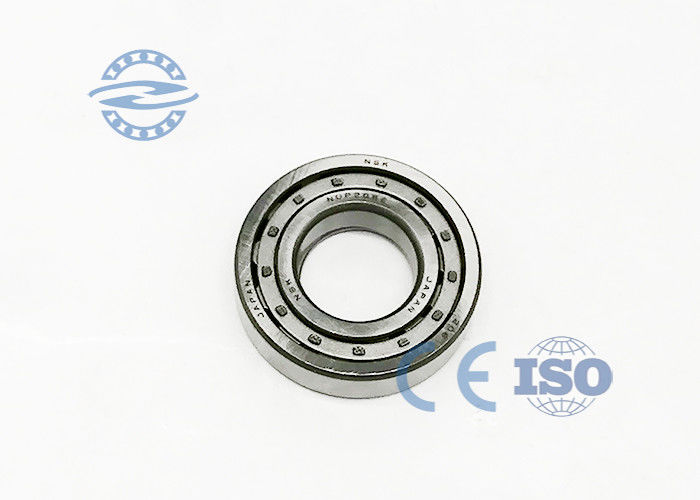

NSK NTN Long-Lifetime 30x62x16 mm Cylindrical Roller Bearings NJ206 NU206 N206 NF206 RN206 NUP206
. Ptoduct description
| Product name | Long-Lifetime 30x62x16 mm Cylindrical Roller Bearings NJ206 NU206 N206 NF206 RN206 NUP206 |
| Material | Chrome steel or stainless steel |
| Cage | Brass, steel |
| Lubriexcavatorion | Oil Grease or solid grease |
| Bore Dia. | 30MM |
| O.D. | 62MM |
| Width | 16MM |
| Package | Netural package or according to requirememt |
| Sample time | 3--5 days |
| Production time | It depends on the quantity |
. Feature
· Long service life
The logarithmic roller profile reduces edge stresses at the roller/raceway contact and sensitivity to misalignment and shaft deflection.
· Enhanced operational reliability
The surface finish on the contact surfaces of the rollers and raceways supports the formation of a hydrodynamic lubricant film
· High load carrying capacity
· High stiffness
· Accommodate axial displacement
Except for bearings with flanges on both the inner and outer rings.
· Low friction (Roller end / flange contact area)
The open flange design , together with the roller end design and surface finish, promote lubricant film formation resulting in lower friction and higher axial load carrying capacity.
Appliexcavatorion:
| Bearing NO. | d(mm) | D()mm | B(mm) | Mass(kg) |
| NU304E | 20 | 52 | 15 | 0.201 |
| NU304EM | 20 | 52 | 15 | 0.201 |
| NJ304E | 20 | 52 | 15 | 0.16 |
| NJ304EM | 20 | 52 | 15 | 0.168 |
| N305E | 25 | 62 | 17 | 0.244 |
| N305EM | 25 | 62 | 17 | 0.298 |
| NF305E | 25 | 62 | 17 | 0.244 |
| NU305E | 25 | 62 | 17 | 0.251 |
| NU305EM | 25 | 62 | 17 | 0.375 |
| NJ305E | 25 | 62 | 17 | 0.256 |
| NJ305EM | 25 | 62 | 17 | 0.261 |
| NUP305E | 25 | 62 | 17 | 0.263 |
| NUP305EM | 25 | 62 | 17 | 0.284 |
| NUP305ENV | 25 | 62 | 17 | 0.26 |
| N306E | 30 | 72 | 19 | 0.36 |
| N306EM | 30 | 72 | 19 | 0.41 |
| NU306E | 30 | 72 | 19 | 0.367 |
| NU306EM | 30 | 72 | 19 | 0.30 |
| NJ306E | 30 | 72 | 19 | 0.30 |
| NJ306EM | 30 | 72 | 19 | 0.41 |
| NUP306EM | 30 | 72 | 19 | 0.40 |
. CONPANY PROFILE
ZhongHong Bearing Manufacturing Co. Ltd , produces a wide range of ball and roller bearings for automotive making, Ferrous Metallurgy, Chemical Machinery and Machine Manufacturing in its primary plants in China mainland. Our main bearing products include deep groove ball bearings, tapered roller bearings, cylindrical roller bearings, spherical ball bearings, spherical roller bearings, single row angular contact bearings, double row angular contact bearings, needle roller bearings, thrust ball bearings, spherical plain bearings, spherical bearings, automotive bearings, pump bearings, and many non-standard bearings are also in our product range. The annual output is more than 10 million sets.
WORKSHOP
WAREHOUSE
1. OEM available for different model and brand of bearings
2. Customize some non-standard products to meet customers special requirements
3. All bearings use high chrome GCr15 bearing steel to provide high quality products for each customer
4. Customize package according to customers special requirement
5. Safe, fast and cheap delivery to meet customers urgent need
. Packaging
1. Industrial tube packing + cartons + pallets
2. Individual colorful or white box + carton + pallets
3. As the clients' requirement
Transportation:
1. Less than 45 KGS, we will send by express. (Door to Door, Convenient)
2. Between 45 - 200 KGS, we will send by air transport. (Fastest and safest, but expensive )
3. More than 200 KGS, we will send by sea. (Cheapest and usual)
Payment:
1. TT. 30% payment in advance as deposit, balance before delivery.
2. L/C at sight. (high bank charges, not suggest , but acceptable )
3. 100% Western Union in advance. (specially for air shipment or small amount)
.
Related Products
| Deep groove ball bearings | Linear ball bearings | Pillow block bearings | Clutch release bearings |
| Cylindrical roller bearings | Needle roller bearings | Thrust ball bearings | Thrust roller bearings |
| Spherical roller bearings | Ball joint bearings | Conveyor roller bearings | Angular contact ball bearings |
