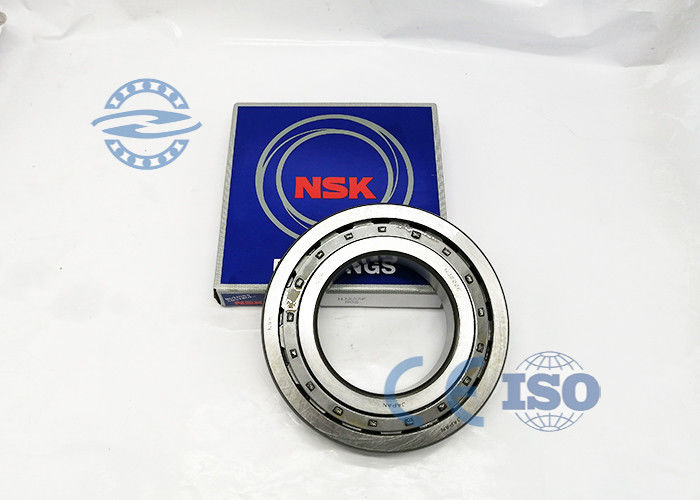

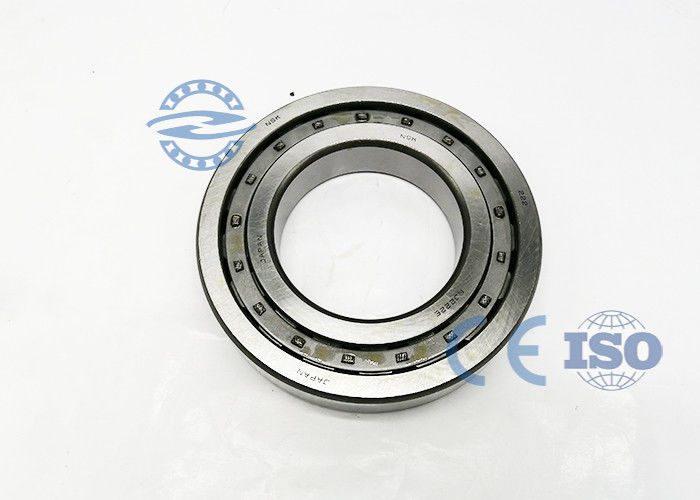

NJ222E NJ222EM C3 P6 Grade Cylindrical Taper Roller Bearing

NJ222E NJ222EM C3 P6 Grade Cylindrical Taper Roller Bearing

  • NJ222E NJ222EM C3 P6 Grade Cylindrical Taper Roller Bearing
  • NJ222E NJ222EM C3 P6 Grade Cylindrical Taper Roller Bearing
  • NJ222E NJ222EM C3 P6 Grade Cylindrical Taper Roller Bearing
NJ222E NJ222EM C3 P6 Grade Cylindrical Taper Roller Bearing
Product Details:
Brand Name: NSK NTN
Model Number: NJ222E
Certifiexcavatorion: ISO9001,ISO14001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: negotiated
Packaging Details: According to customer requirements
Delivery Time: 1-2 work day
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 500 PC per day
Contact Now
Detailed Product Description
Place Of Origin: Shandong, China Product Name: Cylindrical Roller Bearing
Weight: 5.02kg Specifiexcavatorion: 110*200*38
Vibration And Noise: Z0V0 / Z1V1 / Z2V2 / Z3V3 Material: Chrome Steel Gcr15Package
Precision Rating: ABEC-1 To ABEC-9 Service: OEM ODM
Lubriexcavatore: Oil Grease Package: Original Packing
Sample: Avaliable
High Light:

industrial roller bearings

,

cylinder roller bearing


 1 . Ptoduct description

Cylindrical roller bearings are available in many designs, series and sizes. The majority are single row bearings with a cage. High-capacity bearings, double row bearings, multi-row bearings, single, double and multi-row full complement bearings (without a cage) and split bearings complete the international standard assortment provided here.

Bearings with a cage can accommodate heavy radial loads, rapid accelerations and high speeds. Full complement bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads at moderate speeds. CHIK high-capacity cylindrical roller bearings combine the high load carrying capacity of a full complement bearing with the high speed capability of a bearing with a cage.


NJ222E NJ222EM C3 P6 Grade Cylindrical Taper Roller Bearing 0
Model All Standard and Non Standard
Brand CHIK KOYO NTN NSK
Structure Single row NU / N / NJ / NF / NUP
Double rows NN / NN-K / NNU-K / NNCF / NNCL / NNCS
Four rows FC/FCD/FCDP
Precision Rating P0,P6,P5,P4,P2(ABEC1,ABEC3,ABEC5,ABEC7,ABEC9)
Clearance C2,C0,C3,C4,C5
Viberation Level V1,V2,V3,V4
Material GCr15/GCr15SiMn
Appliexcavatorion

Widely used in metallurgy, mining, petroleum, chemical, coal, cement, paper,

windpower, heavy machinery, enginnering machinery, port machinery and other

industries.

Delivery time 1)3-5days for samples
2)10-15days
Payment terms 1)30%TT in advance,70%balance has to be paid before first shipment.
2)100%LC at sight
3)Western Union
4)Paypal
5)other payment terms depend on our discussio


  2 . Appliance :



automatic transmission mechanism, household motor, motorcycle, electric tools, sports supplies, office appliances



NJ222E NJ222EM C3 P6 Grade Cylindrical Taper Roller Bearing 1



3. Product  Description



Bearing clearance means the value of displacement of the unfixed ring when it moves against the fixed ring in radial or axial direction before the bearing is mouted on a shaft or in a housing. According to the movement direction, it falls into radial clearance and axial clearance.

National standard of vibration acceleration (commonly known as Z-standard)

The standard was established earlier, to measure the vibration acceleration value of the bearing when rotating, to determine the quality of the bearing, divided into Z1, Z2, Z3 from low to high quality grade. At present, bearing manufacturers in China are still using the vibration acceleration value to measure the advantages and disadvantages of the bearing, it simply reflects the fatigue life of the bearing.

Vibration velocity standard (commonly known as V standard)

Because the original vibration acceleration standard has not been abolished, so the standard is issued by the ministry of machinery industry standards, is the reference to the European standards combined with the actual situation and needs of our country, to test the bearing vibration speed to determine the quality of the bearing grade (equivalent to the national standard). Divided into V, V1, V2, V3, V4 five quality levels. Various ball bearing quality classes from low to high V, V1, V2, V3, V4; Roll bearings (cylinder, cone) quality grade from low to high for V, V1, V2, V3 four quality grade.

It is used to detect the vibration b velocity of bearing at different frequency segments (low frequency, medium frequency and high frequency) to reflect the bearing quality. It can be generally analyzed whether the bearing has the geometric size problem (such as the steel ring ellipse), the quality problem of raceway/rolling body, the quality problem of the cage, compared with the vibration acceleration to investigate the bearing quality has made a significant improvement. At present, the domestic bearings exported to Europe, the Chinese military and the aerospace industry all carry out bearing quality inspection in accordance with this standard, and at the same time, the quality inspection of European imported bearings and the discrimination of counterfeit imported bearings provide a feasible means.

There are two parallel standards in the bearing quality detection, and the bearings with high quality grade of "z-standard" may not have good quality performance when tested with "v-standard", and there is no correspondence between the two. This in the bearing quality inspection is to pay special attention to.

NJ222E NJ222EM C3 P6 Grade Cylindrical Taper Roller Bearing 2

BEARING NO DIMENSION(MM) WEIGHT(KG)
NJ202 15*35*11 0.06
NJ203 17*40*12 0.074
NJ204 20*47*14 0.14
NJ205 25*52*15 0.16
NJ206 30*62*16 0.24
NJ207 35*72*17 0.3
NJ208 40*80*18 0.45
NJ209 45*85*19 0.52
NJ210 50*90*20 0.587
NJ211 55*100*21 0.69
NJ212 60*110*22 0.9
NJ213 65*120*23 1.05
NJ214 70*125*24 1.36
NJ215 75*130*25 1.4
NJ216 80*140*26 1.53
NJ217 85*150*28 2.17
NJ218 90*160*30 2.72
NJ219 95*170*32 2.9
NJ220 100*180*34 3.5
NJ222 110*200*38 4.8
NJ224 120*215*40 5.85
NJ226 130*230*40 7
NJ228 140*250*42 9.1
NJ230 150*270*45 11
NJ232 160*290*48 14
NJ234 170*310*52 17.1
NJ236 180*320*52 18
NJ238 190*340*55 23



4 . CONPANY PROFILE


ZhongHong Bearing Manufacturing Co. Ltd , produces a wide range of ball and roller bearings for automotive making, Ferrous Metallurgy, Chemical Machinery and Machine Manufacturing in its primary plants in China mainland. Our main bearing products include deep groove ball bearings, tapered roller bearings, cylindrical roller bearings, spherical ball bearings, spherical roller bearings, single row angular contact bearings, double row angular contact bearings, needle roller bearings, thrust ball bearings, spherical plain bearings, spherical bearings, automotive bearings, pump bearings, and many non-standard bearings are also in our product range. The annual output is more than 10 million sets.



WORKSHOP



NJ222E NJ222EM C3 P6 Grade Cylindrical Taper Roller Bearing 3



NJ222E NJ222EM C3 P6 Grade Cylindrical Taper Roller Bearing 4





















WAREHOUSE



NJ222E NJ222EM C3 P6 Grade Cylindrical Taper Roller Bearing 5





NJ222E NJ222EM C3 P6 Grade Cylindrical Taper Roller Bearing 6









INSPECTION MACHINE









NJ222E NJ222EM C3 P6 Grade Cylindrical Taper Roller Bearing 7



NJ222E NJ222EM C3 P6 Grade Cylindrical Taper Roller Bearing 8



5 . Packaging

1 . Single box packing, then in carton then in Pallet .
2 . Standard export packing .
3 . According customer demand .

NJ222E NJ222EM C3 P6 Grade Cylindrical Taper Roller Bearing 9



RFQ

Q1: Are you manufacturer or trading company?

A1: We are manufacturer

Q2: Whafs the MOQ?

A2:Usually Your MOQ is around 3000 pcs/color. Contact us for a quotation on
orders under 3000 pieces and we will do whatever we can to accommodate you.

Q3:Can i Get samples?

A3:Of course, we usually provide existing sample for free, however you need to
cover the express charge, and if you have special request then we will charge
you for special arrangement, and this charge is refundable when order is up
to a certain quantity.

Q4: What's the delivery time of your products?

A4: Usually the delivery time is 30 days after confirming order and detail. Delivery
time depending on your purchasing quantity and production season.

Q5: How does your factory do regarding quality control.

A5: Quality is priority, we will do 100% quality inspection before shipment.

Q6: what is your terms of payment?

A6: Normally T/T, but we also accept L/C, PAYPAL.For mass production:
30% deposit before mass production,70% before shipment.

Q7: Can we use our own logo and design ?

A7: Yes, you can. We can follow up your request to put your logo or design on .

For logo file must Al file.

Q8: When can I get the price?

A8: We usually quote within 24 hours after we get your inquiry. If you are very
urgent to get the price, please call us or contact through Trade Manager to
get prompt response. please call us or tell us in your email so that we will
regard your inquiry as top priority
