Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Place of Origin: | CHINA |
| Brand Name: | CNZH |
| Model Number: | 23020 |
| Certifiexcavatorion: | ISO 9001:2000 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Natural packing |
| Delivery Time: | 1-3 work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 per day |
| Product Name: | Spherical Roller Bearing | Inner Diameter: | 110 |
|---|---|---|---|
| Outside Diameter: | 150 | Feature: | High Quality /long Life |
| Weight: | 2.51 | Material: | Chrome Steel |
| Precision Rating: | P0 P6 P5 P4 P2 | Vibration: | Z1V1 Z2V2 Z3V3 |
| Cage: | Brass/steel | Lubriexcavatorion: | Oil |
| High Light: | spherical roller thrust bearing,roller cage bearing |
||

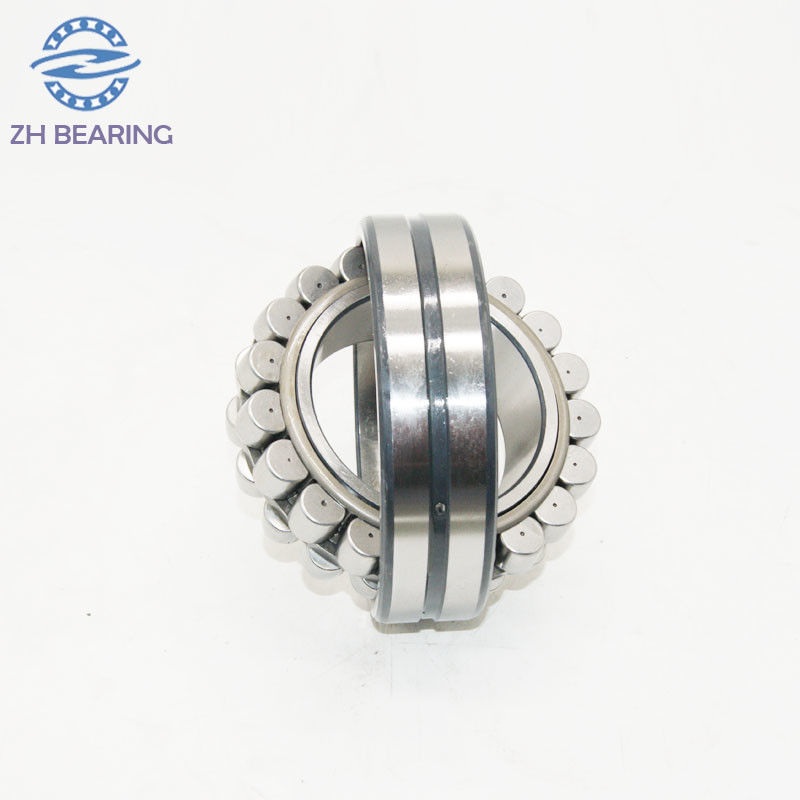

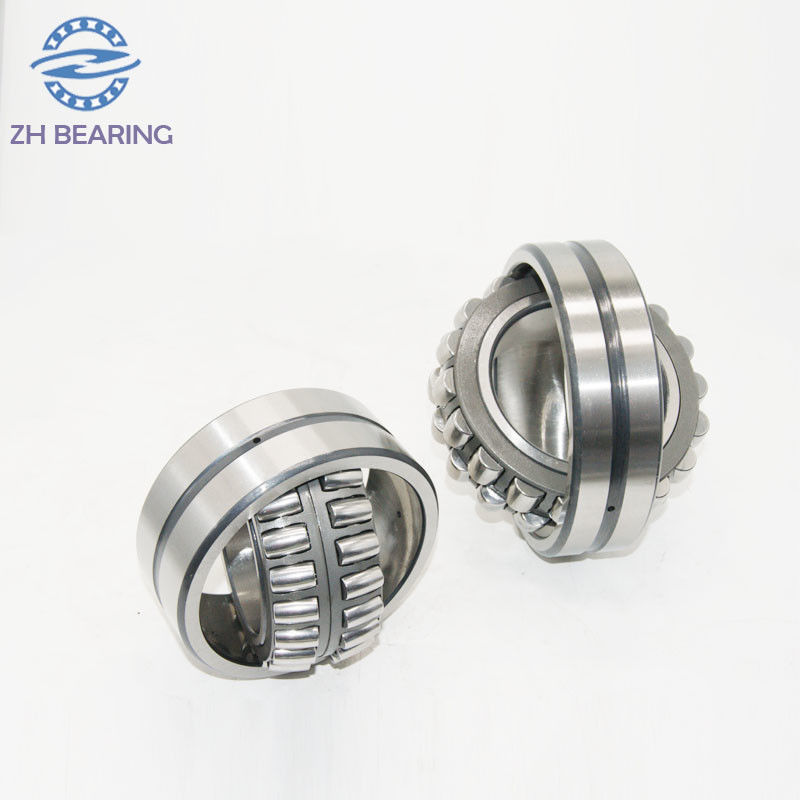

Spherical Roller Bearing 23020 especially for heavy duty and loads
Product Description
| model | 23000 | Number of Row | Single Row, single/double/multi row |
| Cage Material | Brass/Steel | Precision Rating | P0 P4 P5 P6 |
| Weight | 0.037-49.8kg | Lubriexcavatorion Enhancement | W33 |
| t- Inner (d) | 30-220mm | Clearance | C2,C3,C4,C5 |
| - Outer (D) | 72-460mm | Vibration | V1 V2 V3 V4 |
| - Width (B) | 19-1445mm | Heat Stabilization | Temperatures up to 120°C |
| Seal type | Open/close | Hardness | HRC58-62 |
Characteristic
1.High performance bearing supports
2.High overall equipment efficiency
3.More economical bearing supports due to downsizing
4.Lower operating costs
5.Suitable for heavy loads
6.Many variations available to suit a range of conditions
Material

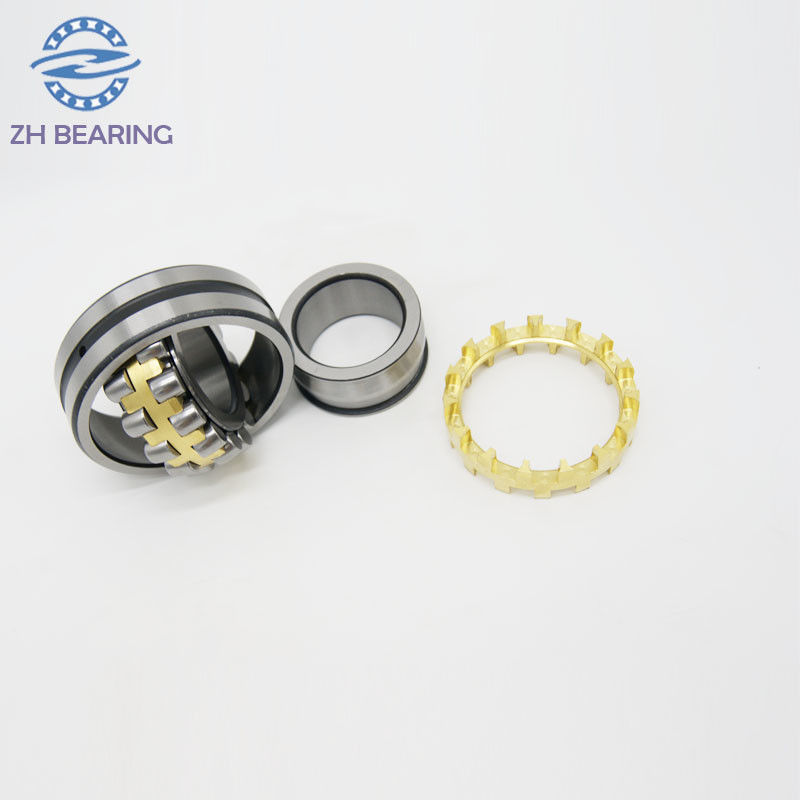

1.CA: Integral brass cage, double row symmetrical rollers,inner ring ride
2.MA: Integral brass cage, double row symmetrical rollers ,outer ring ride
3.MB: Two piece brass cage,double row asymmetrical rollers, inner ring ride
4.CC: Two piece steel cage, double row symmetrical rollers,inner ring ride
5.K: Tapered bore bearing, the taper is 1:12
6.K30: Tapered bore bearing,the taper is 1:30
7.W33: With lubriexcavatorion groove in outer ring,with three oil holes
8.C2/C3/C4: Internal clearance series: C2,C0,C3, and C4
Other size
| 23000series | ||
| Bearing Number | Dimension (mm ) | Weight (kg) |
| 23020 | 110X150X37 | 2.51 |
| 23022 | 110X170X45 | 3.54 |
| 23026 | 13X200X52 | 4 |
| 23028 | 140X210X53 | 6.6 |
| 23030 | 150X225X56 | 6.8 |
| 23032 | 160X240X60 | 8.9 |
| 23034 | 170X260X67 | 9.7 |
| 23036 | 180X280X74 | 13 |
| 23038 | 190X290X75 | 17 |
| 23040 | 200X310X82 | 18.5 |
| 23044 | 220X340X90 | 30.3 |
| 23048 | 240X360X92 | 32.6 |
| 23052 | 260X400X104 | 49.8 |
Appliexcavatorion
Spherical roller bearings for automotive, construction machinery, oil drilling, coal mining industrial, motion industrial bearing, for rear-wheel, transmission and electric equipment parts for car making; electromotor, home appliances; instrument, combustion engines, building machinery, railway vehicle, loading/unloading machine, farm machinery and various industrial usage.
PACKING&Delivery time
1.industrial packing+industrial cartons+pallets
2.follow customer's requests
a.3-5days for samples
b.10-15days
FAQ
1. How long can the inquiry be answered?
If we got you inquiry list will feedback within 2-6 hours. Urgent will be faster.
2. How about your quality of bearings?
Strictly follow ISO9001 standard for production.
3. What is the MOQ of your products?
Usually >1,depends on the model.
4. How about the Delivery time?
About 3・ 15days. (According to the quantity.)
5. How do you check the quality before delivery?
Our company has a professional quality inspect!on department,
which strictly controls the quality of products.
6. if there is a problem with the products we receive, how can you solve it?
If have any questions, please contact us in time.
We will deal with them immediately.
7. How long will our question be answered?
We will respond within 1 hour and solve it within 24 hours.
