Home ProductsCylindrical Roller Bearing

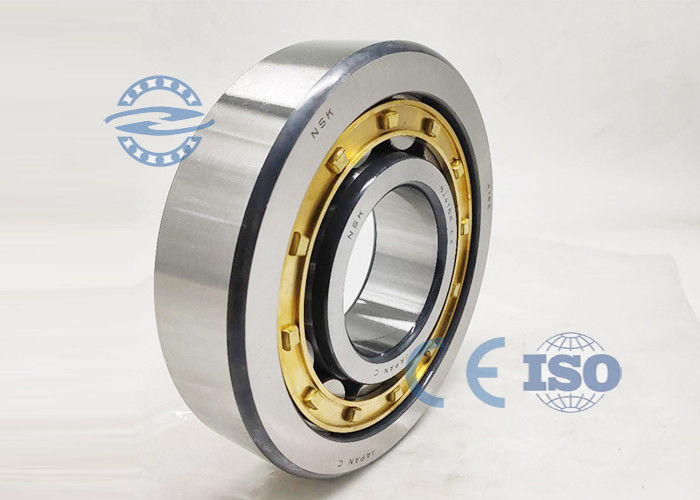

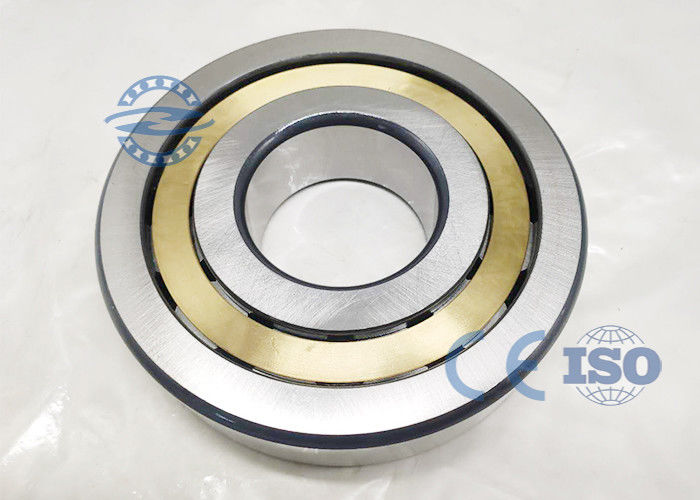

NJ416EM Cylindrical Roller Bearing High Precision Bearing For Machine

NJ416EM Cylindrical Roller Bearing High Precision Bearing For Machine

  • NJ416EM Cylindrical Roller Bearing High Precision Bearing For Machine
  • NJ416EM Cylindrical Roller Bearing High Precision Bearing For Machine
  • NJ416EM Cylindrical Roller Bearing High Precision Bearing For Machine
NJ416EM Cylindrical Roller Bearing High Precision Bearing For Machine
Product Details:
Place of Origin: CHINA
Brand Name: NSK NTN
Model Number: NJ416EM
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: negotiated
Packaging Details: According to customer requirements
Delivery Time: 1-2 work day
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 500 PC per day
Contact Now
Detailed Product Description
Product Name: Cylindrical Roller Bearing Weight: 7.36 Kg
Specifiexcavatorion: 80*200*48mm Vibration And Noise: Z0V0 / Z1V1 / Z2V2 / Z3V3
Material: Chrome Steel Gcr15Package Precision Rating: ABEC-1 To ABEC-9
Place Of Origin: Shandong, China Service: OEM ODM
Lubriexcavatore: Oil Grease Package: Original Packing
Sample: Avaliable
High Light:

cylinder roller bearing

,

radial roller bearing


 1 . Ptoduct description

Bearing tolerance includes dimensional tolerance and revolving tolerance, Dimensional tolerance is a request when bearings are mounted on shafts or in housings. It includes bore/outerside diameter deviation from basic, inner ring/outer ring width deviation in single radial plane. Revolving tolerance includes radial and axial runout of assembled bearing inner ring and outer ring, inner ring reference fcace runout with bore and outside cylindrical surface runout with outer reference face.
Tolerance class ranges from common class 0 to 6,5,4 and 2, from low to high, Table 1 below is the tolerance class stipulated in China GB307 and its comparison with some other standards.
NJ416EM Cylindrical Roller Bearing High Precision Bearing For Machine 0
NJ416EM Cylindrical Roller Bearing High Precision Bearing For Machine 1


  2 . Appliance :



automatic transmission mechanism, household motor, motorcycle, electric tools, sports supplies, office appliances



NJ416EM Cylindrical Roller Bearing High Precision Bearing For Machine 2



3. Product  Description



Bearing clearance means the value of displacement of the unfixed ring when it moves against the fixed ring in radial or axial direction before the bearing is mouted on a shaft or in a housing. According to the movement direction, it falls into radial clearance and axial clearance.

National standard of vibration acceleration (commonly known as Z-standard)

The standard was established earlier, to measure the vibration acceleration value of the bearing when rotating, to determine the quality of the bearing, divided into Z1, Z2, Z3 from low to high quality grade. At present, bearing manufacturers in China are still using the vibration acceleration value to measure the advantages and disadvantages of the bearing, it simply reflects the fatigue life of the bearing.

Vibration velocity standard (commonly known as V standard)

Because the original vibration acceleration standard has not been abolished, so the standard is issued by the ministry of machinery industry standards, is the reference to the European standards combined with the actual situation and needs of our country, to test the bearing vibration speed to determine the quality of the bearing grade (equivalent to the national standard). Divided into V, V1, V2, V3, V4 five quality levels. Various ball bearing quality classes from low to high V, V1, V2, V3, V4; Roll bearings (cylinder, cone) quality grade from low to high for V, V1, V2, V3 four quality grade.

It is used to detect the vibration b velocity of bearing at different frequency segments (low frequency, medium frequency and high frequency) to reflect the bearing quality. It can be generally analyzed whether the bearing has the geometric size problem (such as the steel ring ellipse), the quality problem of raceway/rolling body, the quality problem of the cage, compared with the vibration acceleration to investigate the bearing quality has made a significant improvement. At present, the domestic bearings exported to Europe, the Chinese military and the aerospace industry all carry out bearing quality inspection in accordance with this standard, and at the same time, the quality inspection of European imported bearings and the discrimination of counterfeit imported bearings provide a feasible means.

There are two parallel standards in the bearing quality detection, and the bearings with high quality grade of "z-standard" may not have good quality performance when tested with "v-standard", and there is no correspondence between the two. This in the bearing quality inspection is to pay special attention to.

NJ416EM Cylindrical Roller Bearing High Precision Bearing For Machine 3

BEARING NO DIMENSION(MM) WEIGHT(KG)
NJ202 15*35*11 0.06
NJ203 17*40*12 0.074
NJ204 20*47*14 0.14
NJ205 25*52*15 0.16
NJ206 30*62*16 0.24
NJ207 35*72*17 0.3
NJ208 40*80*18 0.45
NJ209 45*85*19 0.52
NJ210 50*90*20 0.587
NJ211 55*100*21 0.69
NJ212 60*110*22 0.9
NJ213 65*120*23 1.05
NJ214 70*125*24 1.36
NJ215 75*130*25 1.4
NJ216 80*140*26 1.53
NJ217 85*150*28 2.17
NJ218 90*160*30 2.72
NJ219 95*170*32 2.9
NJ220 100*180*34 3.5
NJ222 110*200*38 4.8
NJ224 120*215*40 5.85
NJ226 130*230*40 7
NJ228 140*250*42 9.1
NJ230 150*270*45 11
NJ232 160*290*48 14
NJ234 170*310*52 17.1
NJ236 180*320*52 18
NJ238 190*340*55 23



4 . CONPANY PROFILE


ZhongHong Bearing Manufacturing Co. Ltd is a bearing production, sales - based company,



the company in the industrial field has many years of bearing supporting and industrial service experience.



Types involved: deep groove ball bearings, joint bearings, conical bearings, cylindrical bearings and so on Our products are widely used in machine tools,



coal mine, railway, petroleum printing, power plant, ship, aviation, automobile and other industries



WORKSHOP



NJ416EM Cylindrical Roller Bearing High Precision Bearing For Machine 4



NJ416EM Cylindrical Roller Bearing High Precision Bearing For Machine 5





















WAREHOUSE



NJ416EM Cylindrical Roller Bearing High Precision Bearing For Machine 6





NJ416EM Cylindrical Roller Bearing High Precision Bearing For Machine 7









INSPECTION MACHINE









NJ416EM Cylindrical Roller Bearing High Precision Bearing For Machine 8



NJ416EM Cylindrical Roller Bearing High Precision Bearing For Machine 9



5 . Packaging

1 . Single box packing, then in carton then in Pallet .
2 . Standard export packing .
3 . According customer demand .

NJ416EM Cylindrical Roller Bearing High Precision Bearing For Machine 10

NJ416EM Cylindrical Roller Bearing High Precision Bearing For Machine 11

RFQ

Q1: Are you manufacturer or trading company?

A1: We are manufacturer

Q2: Whafs the MOQ?

A2:Usually Your MOQ is around 3000 pcs/color. Contact us for a quotation on
orders under 3000 pieces and we will do whatever we can to accommodate you.

Q3:Can i Get samples?

A3:Of course, we usually provide existing sample for free, however you need to
cover the express charge, and if you have special request then we will charge
you for special arrangement, and this charge is refundable when order is up
to a certain quantity.

Q4: What's the delivery time of your products?

A4: Usually the delivery time is 30 days after confirming order and detail. Delivery
time depending on your purchasing quantity and production season.

Q5: How does your factory do regarding quality control.

A5: Quality is priority, we will do 100% quality inspection before shipment.

Q6: what is your terms of payment?

A6: Normally T/T, but we also accept L/C, PAYPAL.For mass production:
30% deposit before mass production,70% before shipment.

Q7: Can we use our own logo and design ?

A7: Yes, you can. We can follow up your request to put your logo or design on .

For logo file must Al file.

Q8: When can I get the price?

A8: We usually quote within 24 hours after we get your inquiry. If you are very
urgent to get the price, please call us or contact through Trade Manager to
get prompt response. please call us or tell us in your email so that we will
regard your inquiry as top priority
