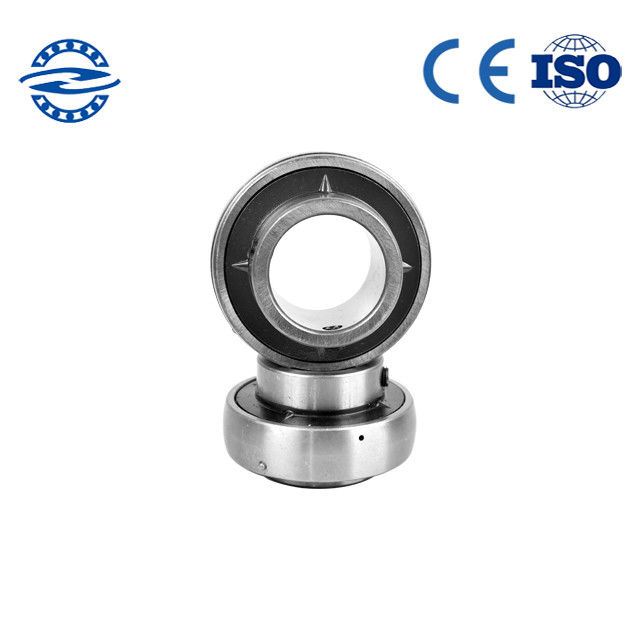

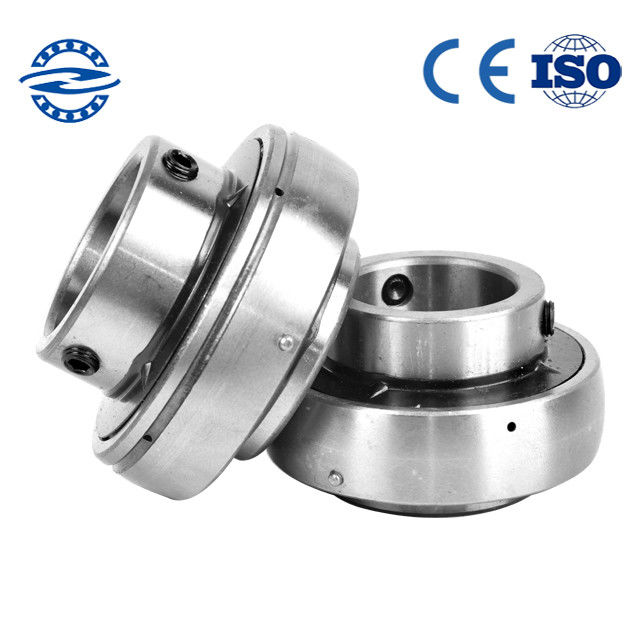

Large Size UC220 Pillow Ball Bearing With Radial Load Chiefly High Speed

Large Size UC220 Pillow Ball Bearing With Radial Load Chiefly High Speed

    • Large Size UC220 Pillow Ball Bearing With Radial Load Chiefly High Speed
    • Large Size UC220 Pillow Ball Bearing With Radial Load Chiefly High Speed
    • Large Size UC220 Pillow Ball Bearing With Radial Load Chiefly High Speed
    • Large Size UC220 Pillow Ball Bearing With Radial Load Chiefly High Speed
  • Large Size UC220 Pillow Ball Bearing With Radial Load Chiefly High Speed

    Product Details:

    Place of Origin: China
    Brand Name: CNZH
    Certification: ISO9001:2008
    Model Number: UC220

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: Neutral packing
    Delivery Time: 3-5 work day
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 500 pc per day
    Contact Now
    Detailed Product Description
    Structure: Pillow Block Bearing Model: UC220
    Material: GCR15(chrome Steel ) Inner Diameter: 25mm
    Outside Diameter: 52mm Weight: 0.22kg
    Feature: High Speed Place Of Origin: Shandong, China (Mainland)
    Cage: Steel Cage Package: Plastic Bag + Single Box
    Sample: Avaliable

    Large size UC220 Pillow Ball Bearing bearing combined radial and axial load with radial load chiefly

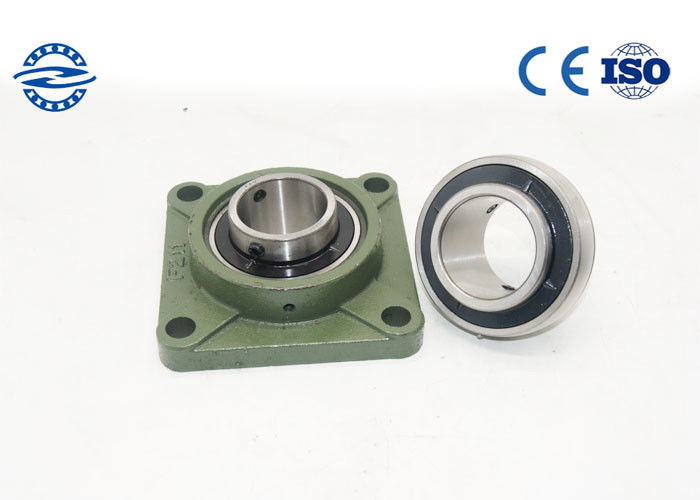

    The information about pillow block bearing

    An outer spherical bearing with a seat is a bearing unit that combines the rolling bearing with the housing. Most of the outer spherical bearings are spherical to the outside diameter, with a spherical bore bearing housing installed together, the structure of various forms, versatility and interchangeability is good. at the same time, the bearings in the design also has a certain modulation, easy to install, with a dual structure of the sealing device, can work in the harsh environment. Housings are generally made of cast molding. The common seat has a standing seat (P), a square seat (F), a convex square seat (FS), a boss round seat (FC), a rhombus block (FL), a ring seat (C), a slider block, etc.

    Large Size UC220 Pillow Ball Bearing With Radial Load Chiefly High Speed

    Parameter

    Structure ROLLER BEARING
    condition 100%new
    Bore Size 12- mm
    Outside size mm
    weight kg
    Precision Rating P0 P1 P2 P3 P4 P5
    Model Number UC200
    Number of Row SINGLE Row
    Material gcr15 BEARING STEEL
    Feature High Speed
    Place of Origin Shandong, China (Mainland)
    Application Machinery and equipment
    color gray
    Brand Name CNZH
    packaging Chinese style packaging







































































    Other size

    UC200
    Bearing model Dimension Weight(kg)
    d D B S C R G ds
    UC201 12 47 31 12.7 18.3 1 5 M6X0.75 0.21
    UC202 15 47 31 12.7 18.3 1 5 M6X0.75 0.19
    UC203 17 47 31 12.7 17 0.6 4.5 M6x1 0.18
    UC204 20 47 31 12.7 17 1 4.6 M6x0.75 0.16
    UC205 25 52 31.4 14.3 17 1 5 M6x0.75 0.22
    UC206 30 62 38.1 15.9 19 1 5 M6x0.75 0.35
    UC207 35 72 42.9 17.5 20 1.1 6 M8x1.0 0.52
    UC208 40 80 49.2 19 21 1.1 8 M8x1.0 0.7
    UC209 45 85 49.2 19 22 1.1 8 M8x1.0 0.74
    UC210 50 90 51.6 19 24 1.1 9 M10x1.0 0.83
    UC211 55 100 55.6 22.2 25 1.5 9 M10x1.0 1.16
    UC212 60 110 65.1 25.4 27 1.5 10 M10x1.0 1.56
    UC213 65 120 65.1 25.4 28 1.5 10 M10x1.0 1.95
    UC214 70 125 74.6 30.2 29 1.5 12 M 12x1.25 2.18
    UC215 75 130 77.8 33.3 30 1.5 12 M 12x1.25 2.42
    UC216 80 140 82.6 33.3 33 2 14 M 12x1.25 2.82
    UC217 85 150 85.7 34.1 35 2 14 M 12x1.25 3.4
    UC218 90 160 96 39.7 37 2 14 M 12x1.25 4.3
    UC220 100 180 108 42 41 2 14 M 12x1.25 4.5

    Large Size UC220 Pillow Ball Bearing With Radial Load Chiefly High Speed

    Large Size UC220 Pillow Ball Bearing With Radial Load Chiefly High Speed

    Our company

    Linqing zhonghong bearing co., LTD. Is a company with bearing production and sales, our company has many years of bearing support and industrial service experience in the industrial field. The company specializes in imported bearings, including Swedish SKF bearing, German FAG bearing. INA bearing, Japan NSK bearing, NTN bearing, IKO bearing, KOYO bearing, American TIMKEN bearing, etc. Domestic brands include: ZWZ bearing. Harbin HRB bearing, luoyang LYC bearing, etc. Involving type: deep groove ball bearings, self-aligning ball bearings, cylindrical roller bearing, spherical roller bearings, angular contact bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings, needle roller bearings, joint bearings, outer spherical bearings, bearing special applications.

    We seek development by reputation, benefit from management, and use service to compete with customers. In the face of increasingly fierce market competition, we constantly improve ourselves and grow stronger. We have a group of professional and technical personnel. and fusion

    international well-known large companies operating management mode, actively explore the market, easy to provide users from all walks of life from product introduction to technical communication and product after-sales service one-stop service. Over the years,with good reputation and excellent quality, a complete set of sales system has been established, which has established long-term cooperative relations with hundreds of customers throughout the country.



    Certifications

    Quality management system (QMS) certificate

    Certificate of international certification

    China Certificate for Ecolabelling Products

    Large Size UC220 Pillow Ball Bearing With Radial Load Chiefly High Speed



    FQA

    Q1. Do you have what other types of bearings?

    A: We have deep groove ball bearing , self- aligning ball bearing , cylindrical roller bearing ,spherical roller bearings , angular contact ball bearings , thrust ball bearing , thrust ball bearing , pillow block bearing , joint bearng ,needle bearing. You can choose according to your needs.

    Q2. Can I choose the bearing number I need ?

    A: Sure , you can choose the model you need. We will design the model you decide.

    Q3. Can you adjust the price again ?

    A: We can talk to each other.
