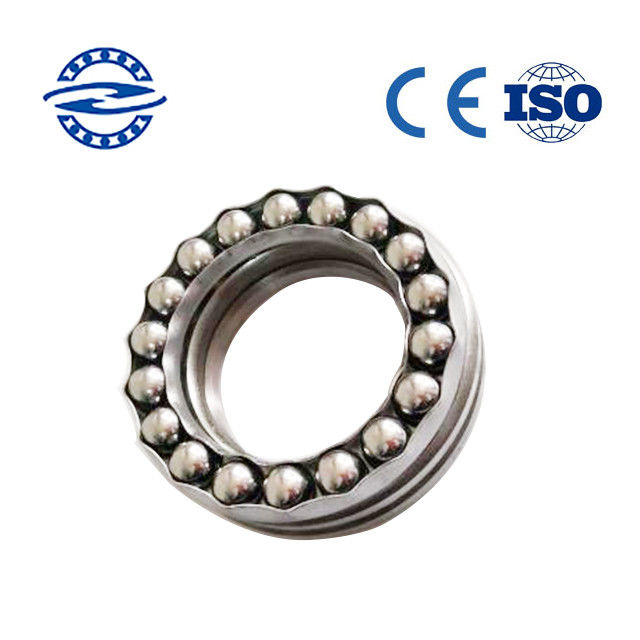

Single Direction Thrust Ball Bearing 51101 brass cage With the capacity of self -aligning

Single Direction Thrust Ball Bearing 51101 brass cage With the capacity of self -aligning

    • Single Direction Thrust Ball Bearing 51101 brass cage With the capacity of self -aligning
    • Single Direction Thrust Ball Bearing 51101 brass cage With the capacity of self -aligning
    • Single Direction Thrust Ball Bearing 51101 brass cage With the capacity of self -aligning
    • Single Direction Thrust Ball Bearing 51101 brass cage With the capacity of self -aligning
  • Single Direction Thrust Ball Bearing 51101 brass cage With the capacity of self -aligning

    Product Details:

    Place of Origin: CHINA
    Brand Name: CNZH NTN
    Certification: ISO9001-2000 / CE / ROHS / UL /
    Model Number: 51101

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiable
    Packaging Details: Carton
    Delivery Time: 1-2 work day
    Payment Terms: L/C, D/A, T/T, Western
    Supply Ability: 500 pieces per day
    Contact Now
    Detailed Product Description
    Structure: Thrust Dimension: 12*26*9
    Weight: 0.024kg Precision Rating: ABEC-3 / ABEC-5
    Cage: Brass/steel Material: Chrome Steel
    Service: OEM Customized Services Feature: Long Life,smooth
    Stock: In Stock Application: Machinery

    Introdution

    Thrust ball bearings are made of three parts of the seats/shaft rings, balls and cage. The one matched with shaft is called shaft ring, and the one matched with shell is called seat ring. They can be divided into single direction thrust ball bearing and bi-direction thrust ball bearing according to force. Single direction thrust ball bearing can withstand single axial load while double direction thrust ball bearing can withstand bi-direction axial load. The ring should match with shaft for bi-direction thrust ball bearing. The bearing with seat ring in spherical mounting surface has the capacity of self-aligning. The impact caused by installation error can be less. Thrust ball bearings cannot bear radial load and has low limiting speed.

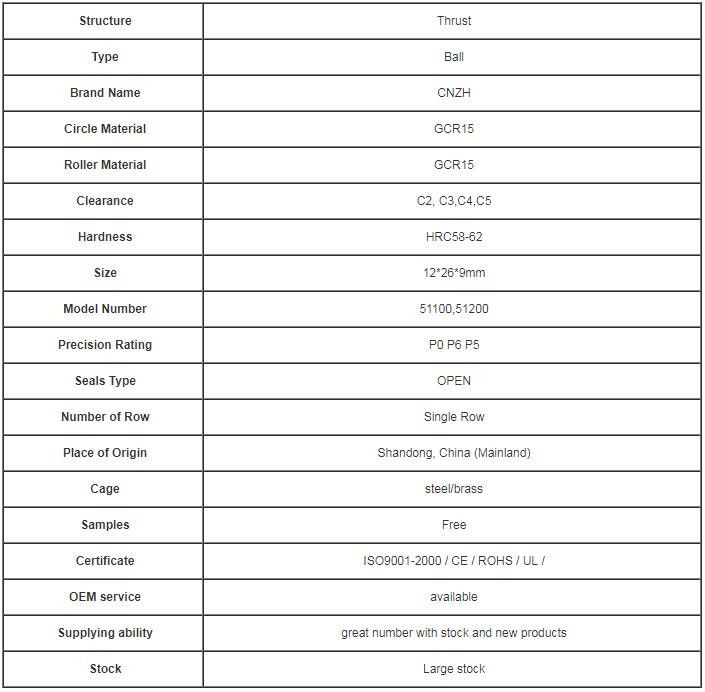

    Specifiction Of Thrust Ball Bearing

    Structure Thrust
    Type Ball
    Brand Name CNZH
    Circle Material GCR15
    Roller Material GCR15
    Clearance C2, C3,C4,C5
    Hardness HRC58-62
    Bore Size 10 - 260 mm
    Outside Diameter 24 - 320 mm
    Model Number 51100,51200
    Precision Rating P0 P6 P5
    Seals Type OPEN
    Number of Row Single Row
    Place of Origin Shandong, China (Mainland)
    Cage steel/brass
    Samples Free
    Certificate ISO9001-2000 / CE / ROHS / UL /
    OEM service available
    Supplying ability great number with stock and new products
    Stock Large stock





    Single Direction Thrust Ball Bearing 51101 brass cage With the capacity of self -aligning



    The characteristics of thrust ball bearing

    1 . One - way , two - way type thrust ball bearing thrust ball bearing
    2 . The spherical seat cushion or spherical seat ring can be selected .
    3 . High quality steel -- ultra clean steel which can extend the life of the bearing by 80%
    4 . High grease technology - NSK ' s lubricant technology can extend the life of the grease and improve the performance of the bearing
    5 . High grade steel ball - quiet and smooth at high speed
    6 . Use the ring in the selection to allow for installation error



    51100 series thrust ball bearing chart

    Model number Sizes(mm) Net Weight(kg) Cage Material
    51100 10*24*9 0.019 Steel plate
    51101 12*26*9 0.021 Steel plate
    51102 15*28*9 0.024 Steel plate
    51103 17*30*9 0.025 Steel plate
    51104 20*35*10 0.038 Steel plate
    51105 25*42*11 0.056 Steel plate
    51106 30*47*11 0.06 Steel plate
    51107 35*52*12 0.066 Steel plate
    51108 40*60*13 0.12 Steel plate
    51109 45*65*14 0.15 Steel plate
    51110 50*70*14 0.16 Steel plate
    51111 55*78*16 0.24 Steel plate
    51112 60*85*17 0.29 Steel plate
    51113 65*90*17 0.324 Steel plate
    51114 70*95*18 0.36 Steel plate
    51115 75*110*19 0.392 Steel plate
    51116 80*105*19 0.404 Steel plate
    51117 85*110*19 0.46 Steel plate
    51118 90*120*22 0.64 Steel plate
    51119 95*125*22 0.85 Steel plate
    51120 100*130*25 1 Steel plate
    51122 110*145*25 1.08 Steel plate





    Advantage
    1. The bearings are separable so the the mounting is simple as the washer and the ball and cage assembly can be mounted separately.
    2. The bearings can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial loads.
    3. The bearings are available with either a flat seat surface on the housing washer or a sphered seat surface.



    Application:

    Use of thrust ball bearing : it is only applicable to the machine parts with axial load and low speed , such as crane hook , vertical pump , vertical centrifuge , jack , low speed reducer , etc.



    Single Direction Thrust Ball Bearing 51101 brass cage With the capacity of self -aligning



    Why choose us

    1. in the same price , our quality is higher , in the same quality , our price is lower

    2.high precision , long life

    3. our brand is WZA , we also can OEM

    4.best service ,many stocks

    5.for large quantity bearings , our delivery time is shorter than other factory .

    in normal , if the quantity is between 100000-1000000 , the delivery time is 10-35 days .
