High Speed Miniature Thrust Ball Bearing 51100 With Single Direction Or Bi - Direction

High Speed Miniature Thrust Ball Bearing 51100 With Single Direction Or Bi - Direction

    • High Speed Miniature Thrust Ball Bearing 51100 With Single Direction Or Bi - Direction
    • High Speed Miniature Thrust Ball Bearing 51100 With Single Direction Or Bi - Direction
    • High Speed Miniature Thrust Ball Bearing 51100 With Single Direction Or Bi - Direction
  • High Speed Miniature Thrust Ball Bearing 51100 With Single Direction Or Bi - Direction

    Product Details:

    Place of Origin: CHINA
    Brand Name: CNZH
    Certification: ISO9001-2000
    Model Number: 51100

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 piece
    Price: negotiable
    Packaging Details: negotiable/customized
    Delivery Time: 1-2 work day
    Payment Terms: L/C, D/A, T/T,, Western Union
    Supply Ability: 500 pieces pe
    Contact Now
    Detailed Product Description
    Material: GCR15 Bore Diameter: 10mm
    Outside Diameter: 24 Weight: 0.02kg
    OEM: Available

    low noise high speed miniature thrust ball bearing ball bearing 51100 with single direction or bi-direction

    Introdution

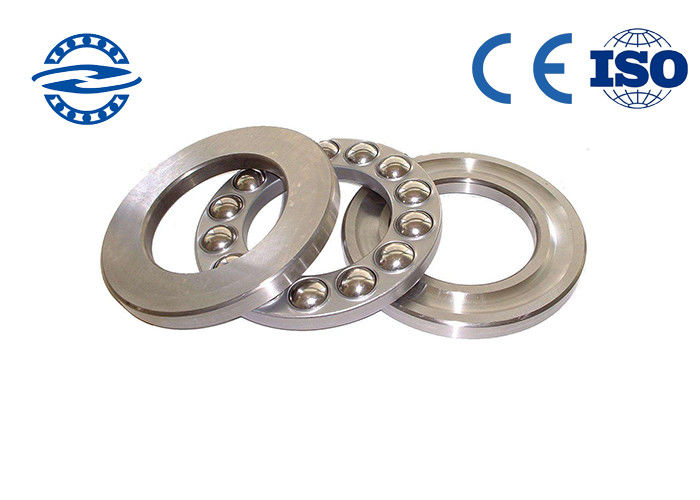

    Thrust ball bearings are made of three parts of the seats/shaft rings, balls and cage. The one matched with shaft is called shaft ring, and the one matched with shell is called seat ring. They can be divided into single direction thrust ball bearing and bi-direction thrust ball bearing according to force. Single direction thrust ball bearing can withstand single axial load while double direction thrust ball bearing can withstand bi-direction axial load. The ring should match with shaft for bi-direction thrust ball bearing. The bearing with seat ring in spherical mounting surface has the capacity of self-aligning. The impact caused by installation error can be less. Thrust ball bearings cannot bear radial load and has low limiting speed.

    Specifiction Of Thrust Ball Bearing

    StructureThrust
    TypeBall
    Brand NameCNZH
    Circle MaterialGCR15
    Roller MaterialGCR15
    ClearanceC2, C3,C4,C5
    HardnessHRC58-62
    Bore Size10 - 260 mm
    Outside Diameter24 - 320 mm
    Model Number51100,51200
    Precision RatingP0 P6 P5
    Seals TypeOPEN
    Number of RowSingle Row
    Place of OriginShandong, China (Mainland)
    Cagesteel/brass
    SamplesFree
    CertificateISO9001:2008
    OEM serviceavailable
    Supplying abilitygreat number with stock and new products
    HardnessHRC58-62
    StockLarge stock


    The characteristics of thrust ball bearing
    1 . One - way , two - way type thrust ball bearing thrust ball bearing
    2 . The spherical seat cushion or spherical seat ring can be selected .
    3 . High quality steel -- ultra clean steel which can extend the life of the bearing by 80%
    4 . High grease technology - NSK ' s lubricant technology can extend the life of the grease and improve the performance of the bearing
    5 . High grade steel ball - quiet and smooth at high speed
    6 . Use the ring in the selection to allow for installation error

    Other size

    Bearing NumberDimension (mm )Weight (kg)
    51100series
    5110010X24X90.02
    5110112X26X90.022
    5110215X28X90,024
    5110317X30X90.028
    5110420X35X100.04
    5110525X42X110.059
    5110630X47X110.068
    5110735X52X120.09
    5110840X60X130.12
    5110945X65X140.15
    5111050X70X140.16
    5111155X78X160.24
    5111260X85X170.29
    5111365X90X170.34
    5111470X95X180.36
    5111575*100*190.42
    5111680*105*190.43
    5111785X110X190.46
    5111890X120X220.68
    51120100*130*250.99
    51122110X145X251.08
    51124120*155*251.16
    51126130X170X301.87
    51128140X180X312.2
    51130150X190X312.15
    51132160X200X312.28
    51134170X215X343.25
    51136180X225X343.39
    51138190X240X373.95
    51140200X250X374.13
    51144220X270X374.5
    51148240X300X457.38
    51152260X320X457.93
    51200series
    5120010X26X110.03
    5120112X28X110.034
    5120215X32X120.046
    5120317X35X120.053
    5120420X40X140.082
    5120525X47X150.12
    5120630X52X160.15
    5120735X62X180.22
    5120840X68X190.27
    5120945X73X200.32
    5121050X78X220.39
    5121155X90X250.61
    5121260X95X260.69
    5121365X100X270.77
    5121470X105X270.81
    5121575*110*270.86
    5121680X115X280.95
    5121785X125X311.29
    5121890X135X351.77
    51220100X150X382.36


    High Speed Miniature Thrust Ball Bearing 51100 With Single Direction Or Bi - Direction

    High Speed Miniature Thrust Ball Bearing 51100 With Single Direction Or Bi - Direction
    Application:
    Use of thrust ball bearing : it is only applicable to the machine parts with axial load and low speed , such as crane hook , vertical pump , vertical centrifuge , jack , low speed reducer , etc
    High Speed Miniature Thrust Ball Bearing 51100 With Single Direction Or Bi - Direction

    Why choose us
    1. in the same price , our quality is higher , in the same quality , our price is lower
    2.high precision , long life
    3. our brand is WZA , we also can OEM
    4.best service ,many stocks
    5.for large quantity bearings , our delivery time is shorter than other factory .
    in normal , if the quantity is between 100000-1000000 , the delivery time is 10-35 days .
