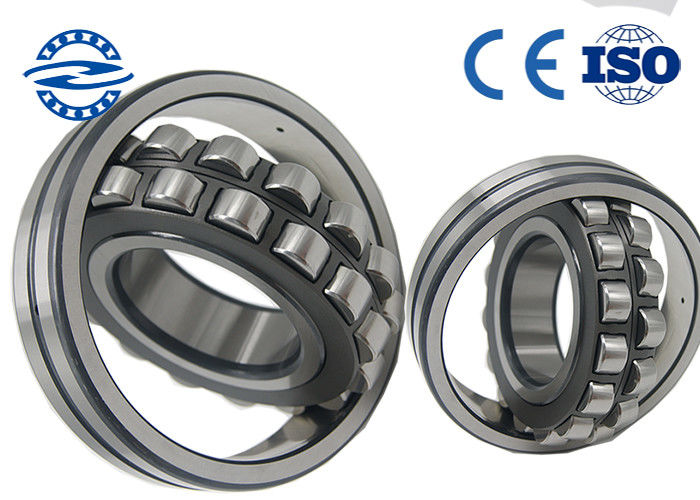

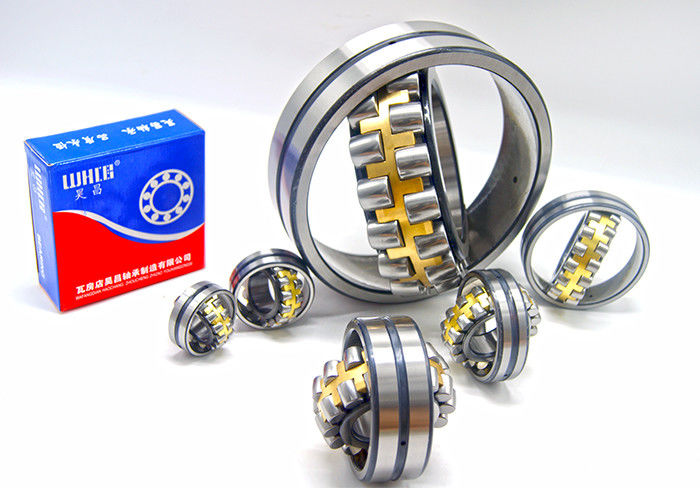

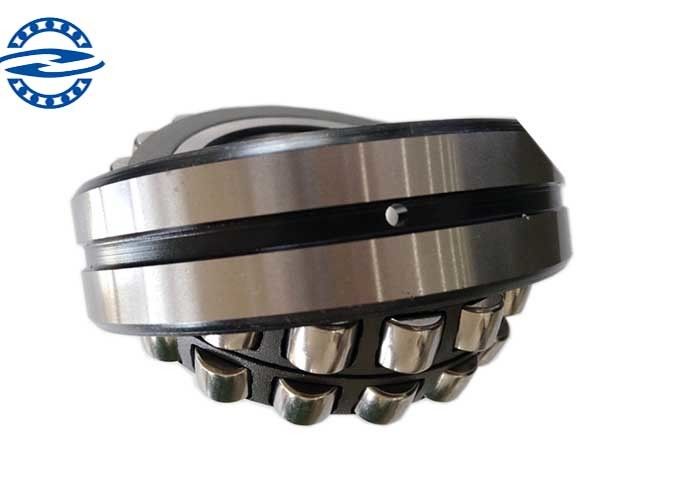

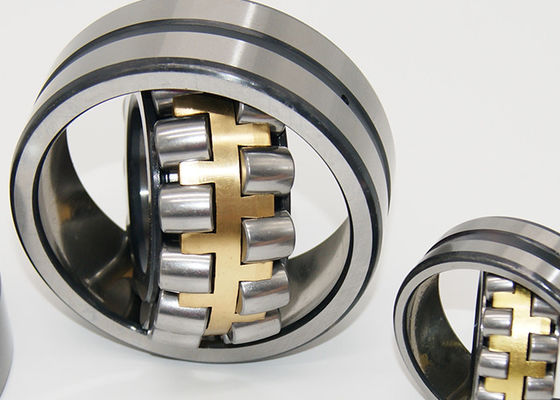

NSK 22324 Spherical High Speed Roller Bearings For PC300-5/6 P4 P2 P5

NSK 22324 Spherical High Speed Roller Bearings For PC300-5/6 P4 P2 P5

    • NSK 22324 Spherical High Speed Roller Bearings For PC300-5/6 P4 P2 P5
    • NSK 22324 Spherical High Speed Roller Bearings For PC300-5/6 P4 P2 P5
    • NSK 22324 Spherical High Speed Roller Bearings For PC300-5/6 P4 P2 P5
    • NSK 22324 Spherical High Speed Roller Bearings For PC300-5/6 P4 P2 P5
  • NSK 22324 Spherical High Speed Roller Bearings For PC300-5/6 P4 P2 P5

    Product Details:

    Place of Origin: CHINA
    Brand Name: CNNZH
    Certification: ISO9001:2008
    Model Number: 22324

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiable
    Packaging Details: Carton
    Delivery Time: 1-2 work day
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 500 per day
    Contact Now
    Detailed Product Description
    Product Name: Spherical Roller Bearing Model: 22324
    Precision: P0,P6,P5,P4,P2 Weight: 22.9KG
    Service: OEM Serive Material: GCR15 Material (Chrome Steel)
    Viberation Level: V1,V2,V3,V4 SIZE: 120*260*86mm

     NSK 22324 spherical roller bearings / steel cage bearing



    Self-aligning roller bearing is designed to adapt to the circumstance of heavy load. It has two rows of symmetric spherical rollers.The rollers may freely adjust position in the outer spherical raceway,which may compensate the shaft deformation and non-alignment error of bearing seat.



    1.CA: Integral brass cage, double row symmetrical rollers,inner ring ride

    2.MA: Integral brass cage, double row symmetrical rollers ,outer ring ride

    3.MB: Two piece brass cage,double row asymmetrical rollers, inner ring ride

    4.CC: Two piece steel cage, double row symmetrical rollers,inner ring ride

    5.CTN1: Double row symmetrical rollers ,nylon cage

    6.K: Tapered bore bearing, the taper is 1:12

    7.K30: Tapered bore bearing,the taper is 1:30

    8.W33: With lubrication groove in outer ring,with three oil holes

    9.C2/C3/C4: Internal clearance series: C2,C0,C3, and C4





    Product Description

    Spherical roller Bearings has two rows of rollers, which mainly bear radial loads and axial loads in any direction. High radial load capacity, especially suitable for heavy load or vibration load, but can not withstand pure axial load. The raceway of this kind of bearing outer ring is spherical, so its aligning performance is good, and it can compensate coaxiality error. Mainly used in paper-making machinery, deceleration device, railway vehicle axles, rolling mill rollers, printing machinery, all kinds of industrial reducers

    china supplier high quality bearing Spherical roller Bearing 22322 CC/22322E
      Model 22322CC/22322E
    Size 110*240*80mm
    Material Gcr15
    Cage Brass ,Steel
    Seal Type ZZ;RS;Open
    Quality ISO9001 2000 Standard;CE
    Port Qingdao,Shanghai,Beijing,Tianjin,Guangzhou,Shenzhen,Hongkong
    Package Standard exported package or according to our customers' requirement
    Delivery Time within 3 days after confirm, it will be 3~7 days if the goods are not in stock , The specific time need refer to the quantity
    Related Model
    Bearing Number Principal dimensions(mm)
    Cylindrical Bore Tapered Bore d D B r1min Weight (KG)
    22220 22220K 100 180 46 2.1 4.90
    23220 23220K 100 180 60.3 2.1 6.85
    21320 21320K 100 215 47 3.0 8.80
    22320 22320K 100 215 73 3.0 13.50
    23022 23022K 110 170 45 2.0 3.80
    24022 24022K 110 170 60 2.0 5.00
    23122 23122K 110 180 56 2.0 5.75
    24122 24122K 110 180 69 2.0 7.10
    22222 22222K 110 200 53 2.1 7.00
    23222 23222K 110 200 69.8 2.1 9.86
    22322 22322K 110 240 80 3.0 18.40
    23024 23024K 120 180 46 2.0 4.20
    24024 24024K 120 180 60 2.0 5.45
    23124 23124K 120 200 62 2.0 8.00
    24124 24124K 120 200 80 2.0 10.30
    22224 22224K 120 215 58 2.1 8.70
    23224 23224K 120 215 76 2.1 12.00
    22324 22324K 120 260 86 3.0



    22.9




    NSK 22324 Spherical High Speed Roller Bearings For PC300-5/6 P4 P2 P5



    NSK 22324 Spherical High Speed Roller Bearings For PC300-5/6 P4 P2 P5

    Why chose us? What advantage do we have?

    1, high evaluation
    2, OEM is acceptable
    3, Small order is ok, goods is in stock.
    4, Sample lead time: 1 days, bulk delivery day: 1-3 days
    5, Our moldings are over 4000 sets.
    6, Our company is factory manufacturer with 10 years experience.
    7, gold service, diamond quality, stone price



    FAQ



    Q: Why do we choose your company?
    A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.

    Q:What is the delivery time?
    A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.

    Q: What is your payment term?
    A: Our payment term include L/C, T/T, Western Union, Paypal etc.

    Q: Can you send bearing samples first?
    A: Yes, we can send bearing samples of one way clutch bearing to check quality first.
