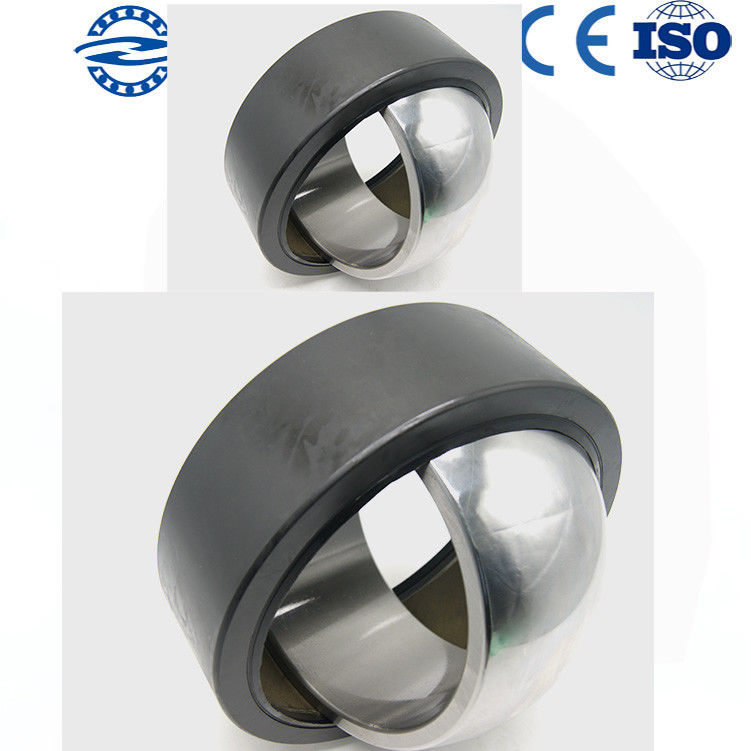

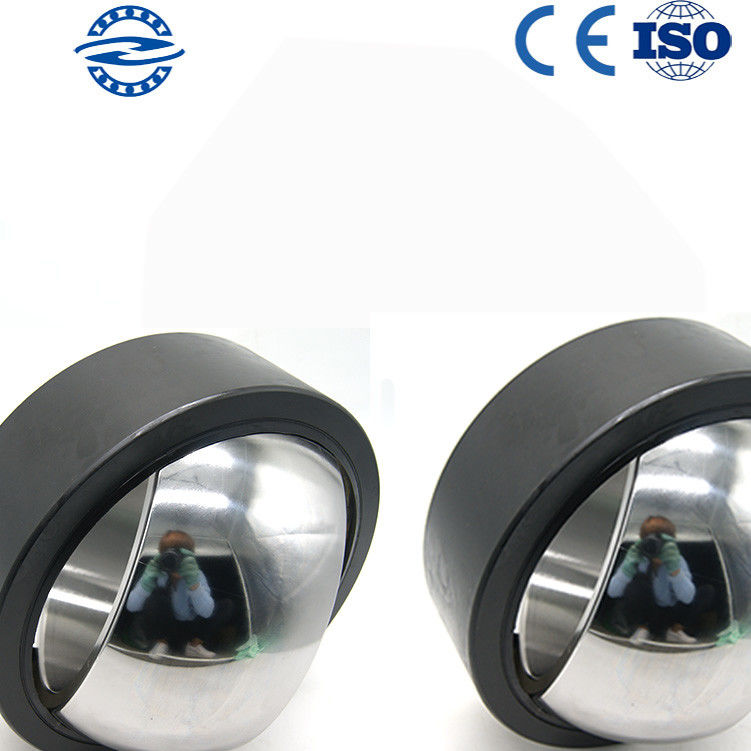

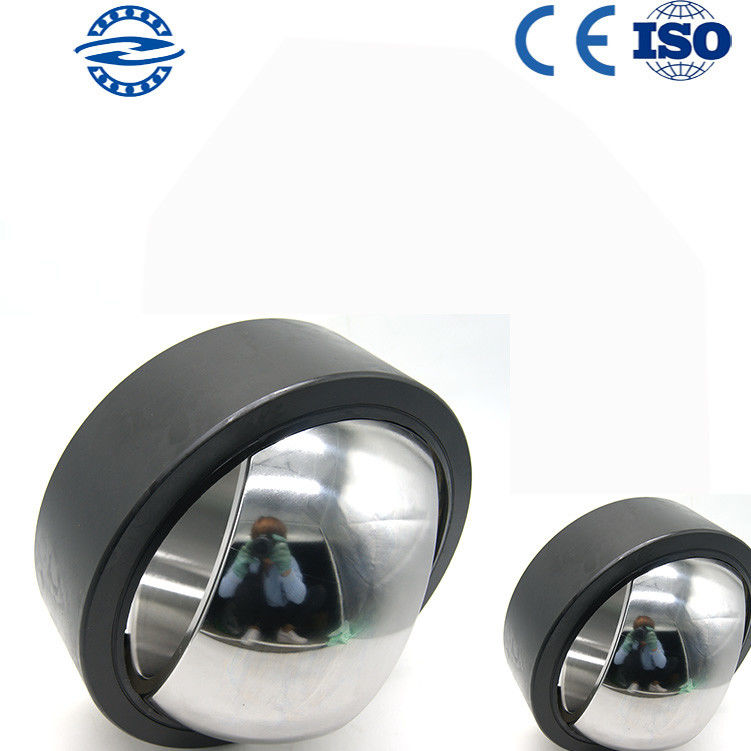

GE180UK - 2RS Stainless Steel Ball Joint Bearing Large Load Capacity And Impact Resistance

GE180UK - 2RS Stainless Steel Ball Joint Bearing Large Load Capacity And Impact Resistance

    • GE180UK - 2RS Stainless Steel Ball Joint Bearing Large Load Capacity And Impact Resistance
    • GE180UK - 2RS Stainless Steel Ball Joint Bearing Large Load Capacity And Impact Resistance
    • GE180UK - 2RS Stainless Steel Ball Joint Bearing Large Load Capacity And Impact Resistance
  • GE180UK - 2RS Stainless Steel Ball Joint Bearing Large Load Capacity And Impact Resistance

    Product Details:

    Place of Origin: China
    Brand Name: ZH
    Certification: ISO9001:2008
    Model Number: CE180UK - 2RS

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiation
    Packaging Details: Neutral packing
    Delivery Time: 1-2 work days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 500 per day
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Product Name: Ball Joint Bearing
    Service: OEM Connection: Welding
    Model: GE180UK - 2RS Type: Rod End



    GE180UK - 2RS Large Load Capacity And Impact Resistance Ball Joint Bearing








    Joint Bearing



    The joint bearing is a spherical plain bearing. The sliding contact surface is an inner spherical surface and an outer spherical surface. It can be rotated and oscillated at any angle during movement. It is treated with various special processes such as surface phosphating, blasting, inserting and spraying. The method is made. The joint bearing has the characteristics of large load capacity, impact resistance, corrosion resistance, wear resistance, self-aligning, and good lubrication.







    Characteristics


    Joint bearings can withstand large loads. Depending on its type and construction, it can withstand radial loads, axial loads or combined loads in both radial and axial directions. Since the outer surface of the inner ring is provided with a composite material, the bearing can be self-lubricated during operation. Generally used for low-speed oscillating motion, and low-speed rotation, it can also be tilted within a certain range of angles. When the support shaft and the shaft housing hole are different, they can still work normally. Self-lubricating joint bearings are used in water conservancy and professional machinery industries.











    Radial spherical plain bearing


    (1) GE...E type: single outer ring, no lubricating oil groove. Can withstand radial loads and small axial loads in either direction.


    (2) GE...ES type: single-slit outer ring with lubricating oil groove. Can withstand radial loads and small axial loads in either direction.


    (3) GE...ES-2RS type, GEEW...ES-2RS type: single-slit outer ring with lubricating oil groove and sealing ring on both sides. Can withstand radial loads and small axial loads in either direction.


    (4) GE...ESN type: single-slit outer ring, GE...XSN type: double-slit outer ring (split outer ring), with oil groove, and outer ring with stop groove. Can withstand radial loads and small axial loads in either direction. However, when the axial load is received by the retaining ring, its ability to withstand axial loads is reduced.


    (5) GE...HS type: There are lubricating oil grooves in the inner ring and double outer rings. The clearance can be adjusted after wear. Can withstand radial loads and small axial loads in either direction.


    (6) GE...DE1 type: the inner ring is hardened bearing steel and the outer ring is bearing steel. Extrusion during assembly of the inner ring, with lubrication grooves and oil holes. Bearings with an inner diameter of less than 15 mm, no lubrication grooves and oil holes. Can withstand radial loads and small axial loads in either direction.


    (7) GE...DEM1 type: the inner ring is hardened bearing steel and the outer ring is bearing steel. When the inner ring is assembled, it is extruded. After the bearing is installed in the bearing housing, the end groove is pressed out on the outer ring to fix the bearing axially. Can withstand radial loads and small axial loads in either direction.


    (8) GE...DS type: The outer ring has a fitting groove and a lubrication groove. Limited to large size bearings. Can withstand radial loads and small axial loads in either direction (the side of the mounting groove cannot withstand axial loads).
    Angular contact spherical plain bearings
    The GAC...S type inner and outer rings are hardened bearing steel with oil grooves and oil holes in the outer ring. Can withstand radial loads and axial directional (combined) loads.
    Thrust joint bearing
    GX...S type The shaft ring and the seat ring are hardened bearing steel; the seat has oil grooves and oil holes. It can withstand axial loads or combined loads in one direction (in this case, the radial load value must not be greater than 0.5 times the axial load value).









    GE180UK - 2RS Stainless Steel Ball Joint Bearing Large Load Capacity And Impact Resistance
