Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore

China ZhongHong bearing Co., LTD. certification
China ZhongHong bearing Co., LTD. certification
32222 TRB ( tapered roller bearing ) Excellent !

—— Mário Antonaccio (Brazil)

Professional team, attentive service , delivery so fast , and we will continue to cooperation with ZH bearing company!!!

—— Sam Moi (Malaysia)

Parcel arrived, good job!packing it is so great,surface looks very nice,I think quality not bad.

—— Raj (Canada)

I'm Online Chat Now

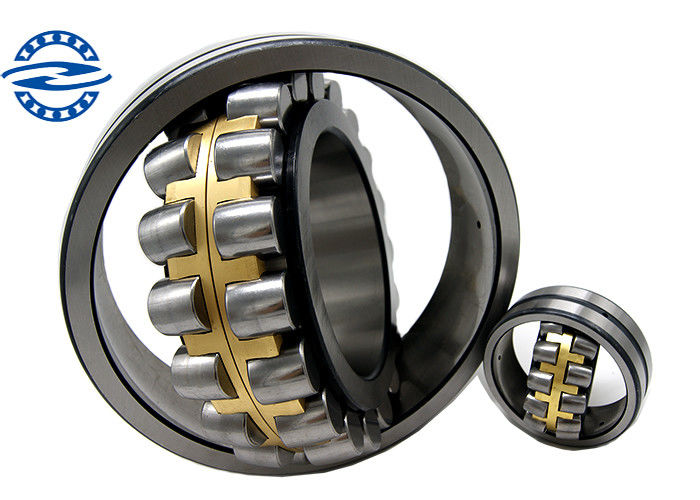

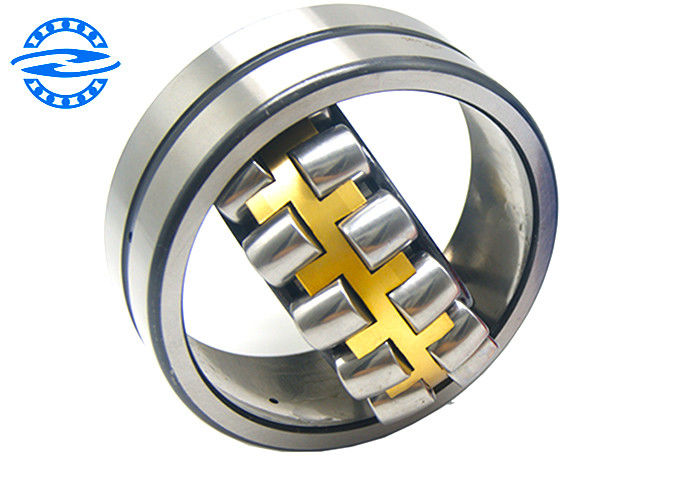

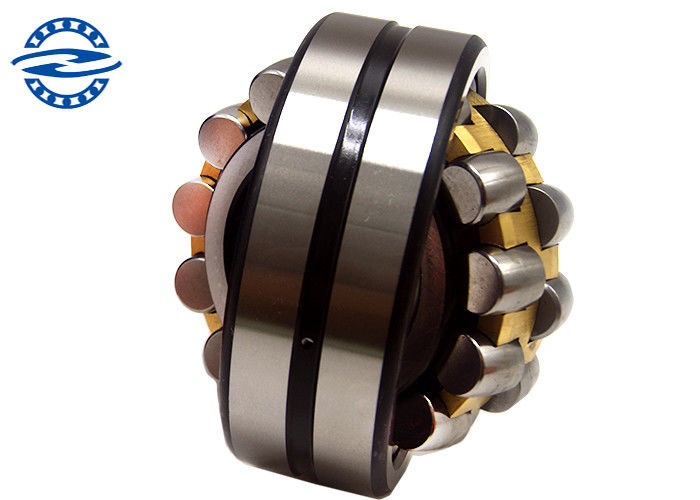

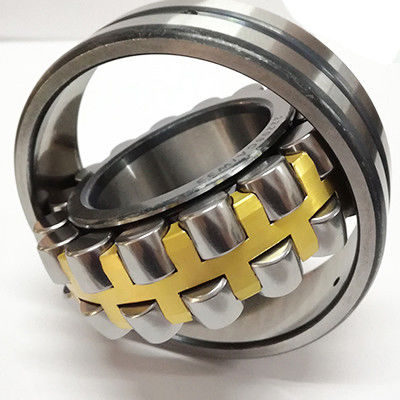

Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore

Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore
Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore

Large Image :  Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore

Product Details:

Place of Origin: CHINA
Brand Name: CN&ZH
Model Number: 23130CA

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 1-2 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 per day
Detailed Product Description
Product Name: Spherical Roller Bearing Model: 23130CA
Size: 250*150*80mm Tolerance Grade: ABEC-1, ABEC-3
Brand Name: Or OEM Material: GCR15 Material (Chrome Steel)
Number Of Row: Single Row Weight: 16kg
Clearance:: C0 C2 C3 C4 Applicable Industries: Mill Mine Metallurgical ETC Engineering Machinery
Precision Rating: P0 P6 P5 P4 Place Of Origin: Shang Dong (China)
Package: According To Customer Requirements
High Light:

split roller bearing

,

spherical roller thrust bearing

Mechanical Parts China Spherical Roller Bearing 23130CAW33C3 250*150*80 mm Straight Bore




In our OEM product offerings, our primary products are spherical  ball bearings and tapered roller bearing (TRBs). These products are offered in both standard excavatoralog sizes and engineered special appliexcavatorion products.



Specially engineered products can be designed utilizing these basic bearing manufacturing capabilities. Precision cylindrical components for universal joint cups (UJC) and rocker arm rings are examples.



Our Aftermarket product offering consist of tapered roller bearings for the heavy duty aftermarket and specialty engineered railroad bearing assemblies and components.



Once again specialty engineered products are also available based on the same bearing manufacturing capabilities.



Products offered to other Bearing Manufacturers fall into two excavatoregories:



finished or semi-finished bearing rings

forging components and finish precision balls





Product Description:



Seal: No Seal Herstellernummer: 23130CA W33
Precision: Standard Precision Anzahl der Einheiten: 16.000
Lubriexcavatorion Enhancement: W33 Maßeinheit: kg
Bore: Cylindrical Bore Weight: 16.000
Cage Type: Brass Cage - Inner (d) MM: 150
Radial Internal Play: Standard Internal Play - Outer (D) MM: 250
Heat Stabilization: Temperatures up to 120°C - Width (B) MM: 80






Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore 0

Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore 1



Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore 2



Other Size



Bearing No. Boundary dimensions Basic load ratings(kN) Limiting speeds Mass
mm Dynamic Static rpm Kg
d D B rs min Cr Cor Grease Oil
23120 100 165 52 2 310 470 1,700 2,600 4.3
23120K 100 165 52 2 310 470 1,700 2,600 4.16
23120KW33C3 100 165 52 2 310 470 1,700 2,600 4.16
23120W33C3 100 165 52 2 310 470 1,700 2,600 4.3
23122 110 180 56 2 370 580 1,500 2,400 5.4
23122K 110 180 56 2 370 580 1,500 2,400 5.22
23122KW33C3 110 180 56 2 370 580 1,500 2,400 5.22
23122W33C3 110 180 56 2 370 580 1,500 2,400 5.4
23124 120 200 62 2 455 705 1,400 2,100 7.7
23124K 120 200 62 2 455 705 1,400 2,100 7.46
23124KW33C3 120 200 62 2 455 705 1,400 2,100 7.46
23124W33C3 120 200 62 2 455 705 1,400 2,100 7.7
23126 130 210 64 2 495 795 1,300 2,000 8.47
23126K 130 210 64 2 495 795 1,300 2,000 8.2
23126KW33C3 130 210 64 2 495 795 1,300 2,000 8.2
23126W33C3 130 210 64 2 495 795 1,300 2,000 8.47
23128 140 225 68 2.1 540 895 1,200 1,800 10.2



3 . CONPANY PROFILE


ZhongHong Bearing Manufacturing Co. Ltd is a bearing production, sales - based company,



the company in the industrial field has many years of bearing supporting and industrial service experience.



Types involved: deep groove ball bearings, joint bearings, conical bearings, cylindrical bearings and so on Our products are widely used in machine tools,



coal mine, railway, petroleum printing, power plant, ship, aviation, automobile and other industries



WORKSHOP



Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore 3



Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore 4



Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore 5

















WAREHOUSE



Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore 6





Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore 7









INSPECTION MACHINE



Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore 8





Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore 9



Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore 10



4. PACKAG and SHIPPING



1.Single box packing, then in carton then in Pallet.,

2.Standard export packing.,

3. According customer demand.,

4.Negotiable

Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore 11

Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore 12



Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore 13



Mechanical Parts Spherical Roller Bearing 23130CAW33C3 250 * 150 * 80 mm Straight Bore 14



FAQ

1.Could you accept OEM and customize?



Yes, we can customize for you according to your sample or drawing



2.Could you supply sample for free?



Yes, we can supple free sample bearing, but our customer should pay freight cost



3.Why I choose you?



Profession and reliability. Everyone likes to blow big bubbles, but we need to be honest with you and ourselves.



4.Your company is a factory or trading company?



We have our own factory, also doing trade.



5.Would you give me a discount?



Since we are factory, our policy is that bigger order quality, the low quotation will be. So we will give you a discount according to you quantity.



6.What is the delivery?



15-20 work days. Samples availbale with 3 work days
