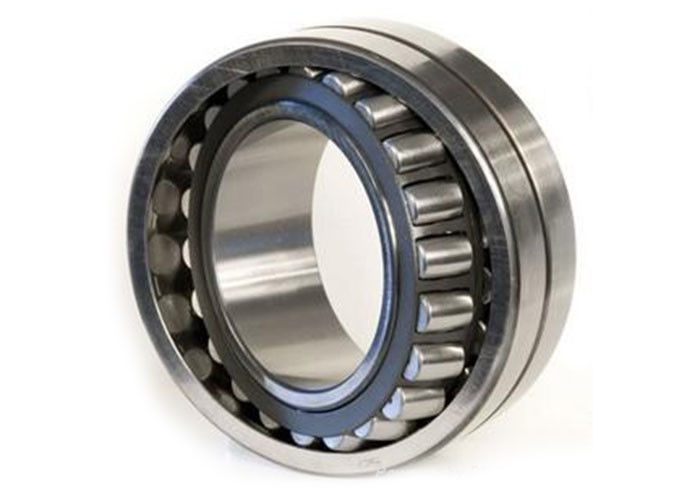

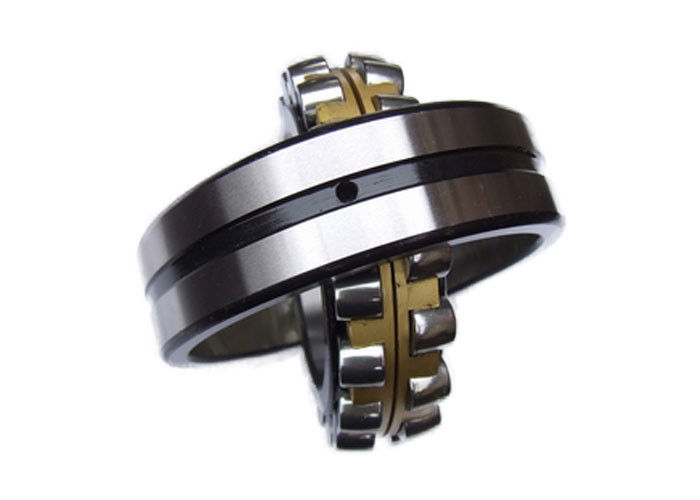

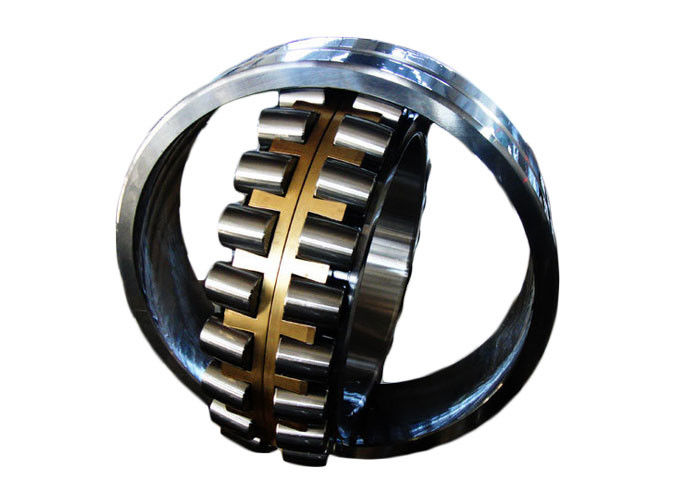

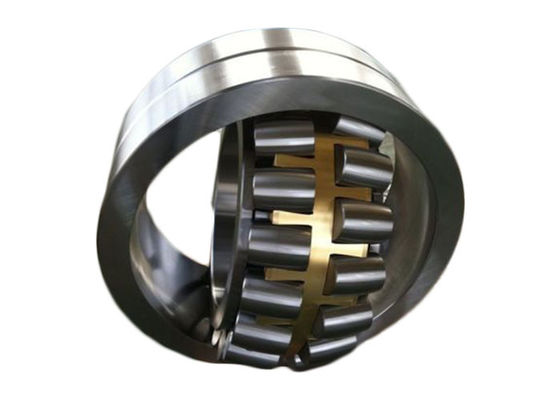

Brass Cage Spherical Roller Bearing 23060 MB / W33 Europe Standard

Brass Cage Spherical Roller Bearing 23060 MB / W33 Europe Standard

  • Brass Cage Spherical Roller Bearing 23060 MB / W33 Europe Standard
  • Brass Cage Spherical Roller Bearing 23060 MB / W33 Europe Standard
  • Brass Cage Spherical Roller Bearing 23060 MB / W33 Europe Standard
  • Brass Cage Spherical Roller Bearing 23060 MB / W33 Europe Standard
Brass Cage Spherical Roller Bearing 23060 MB / W33 Europe Standard
Product Details:
Place of Origin: ShanDong, China (Mainland)
Brand Name: CN&ZH
Model Number: 23060
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD =-1-10 piece
Packaging Details: Conventional Package/As your request
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces days
Contact Now
Detailed Product Description
Bore Size: 300 Mm Outside Diameter: 460 Mm
High: 118 Mm Feature: High Quality/Long Life
Material: Chrome Steel/GCR 15 Precision Rating: P0 P6 P5 P4 P2
High Light:

roller cage bearing

,

split roller bearing

 Europe Standard Bearing 23060 Brass Cage Spherical Roller Bearing 23060 MB/W33


Product Description​



 spherical roller bearing

1. Kinds :bore is the taper K ; and vice versa; tank in the out ring W33
2. Dimensions rage: inter diameter 90mm~~outer diameter 920mm
3. Basic types: 21000; 22000; 23000; 24000; and so on.
4. Cage: brass cage or steel cage
5. Appliexcavatorion: wheel, large size agriculture machinery, main shaft of machine tool, deceleration device of railway gear box, roll machine and so on

Main items:
22205MBW33/C3 -22256MBW33/C3,
22306MBW33/C3-22368 MBW33/C3,
23130MBW33/C3-23180MBW33/C3,
21310MBW33/C3-21340MBW33/C3,
24020MBW33/C3-24080MBW33/C3.
24120MBW33/C3-24180MBW33/C3.
23218MBW33/C3-23280MBW33/C3.

Spherical roller bearings are equipped with drum roller bearings between two raceway inner rings and raceway outer rings. The curvature center of the raceway surface of the outer ring is the same as that of the bearing center, so it has the same alignment function as the automatic aligning ball bearing. When the shaft and shell are flexed, the load can be automatically adjusted and the axial loads in two directions. Radial load capacity is large, suitable for heavy load and impact load. The inner diameter of the inner ring is a cone hole bearing, which can be directly installed. Or use tight sleeve and dismantling cylinder to install on the cylinder shaft. The cage uses a steel stamping cage, a polyamide forming cage and a copper alloy car cage.
For self aligning bearings, when the axle bearing is loaded into the axle hole of the box, the middle mounting ring can prevent the outer ring from tilting and rotating. It should be kept in mind that some sizes of self aligning ball bearings are out of the side of the bearing, so the middle mounting ring should be concave to prevent damage to the ball. A large number of bearings are usually installed by mechanical or hydraulic pressing method.
For detachable bearings, the inner ring and outer ring can be installed separately, which simplifies the installation process, especially when both inner and outer rings need interference fit. When loading the shaft of the inner ring into the bearing box containing the outer ring, it is necessary to see if the inner and outer ring is correct in order to avoid scratching the bearing raceway and rolling parts. If cylindrical and needle bearing bearings are not lined with flange or inner side with flange, the installation sleeve should be recommended. The outer diameter of the sleeve should be equal to F of the inner race raceway, and the tolerance standard for machining should be D10. The needle roller bearing for stamping outer ring is preferably installed with mandrel.




Specifiexcavatorion





23022 22308 23218 23121 22210 24122 CC/W33,CA/W33,E,CCK
23024 22309 23220 23122 22212 24124 CC/W33,CA/W33,E,CCK
23026 22310 23222 23126 22213 24126 CC/W33,CA/W33,E,CCK
23028 22311 23224 23128 22214 24128 CC/W33,CA/W33,E,CCK
23030 22312 23226 23130 22215 24130 CC/W33,CA/W33,E,CCK
23032 22313 23228 23132 22216 24132 CC/W33,CA/W33,E,CCK
23034 22314 23230 23134 22217 24134 CC/W33,CA/W33,E,CCK
23036 22315 23232 23136 22218 24136 CC/W33,CA/W33,E,CCK
23038 22316 23234 23138 22219 24138 CC/W33,CA/W33,E,CCK
23040 22317 23236 23140 22220 24140 CC/W33,CA/W33,E,CCK
23044 22318 23238 23144 22222 24144 CC/W33,CA/W33,E,CCK
23048 22319 23240 23148 22224 24148 CC/W33,CA/W33,E,CCK
23052 22320 23244 23152 22226 24152 CC/W33,CA/W33,E,CCK
23056 22322 23248 23156 22228 24156 CC/W33,CA/W33,E,CCK
23060 22324 23252 23160 22230 24160 CC/W33,CA/W33,E,CCK
23064 22326 23256 23164 22232 24172 CC/W33,CA/W33,E,CCK
23068 22328 23260 23168 22234 23936 CC/W33,CA/W33,E,CCK
23072 22330 23264 23172 22236 23940 CC/W33,CA/W33,E,CCK
23076 22332 23280 23176 22238 23948 CC/W33,CA/W33,E,CCK
23080 22334 23284 23180 22240 23960 CC/W33,CA/W33,E,CCK
23084 22336 23296 23184 22244 23972 CC/W33,CA/W33,E,CCK
23088 22338   23188 22248 23976 CC/W33,CA/W33,E,CCK
23092 22340   23192 22252 23996 CC/W33,CA/W33,E,CCK
23096 22344   23196 22256   CC/W33,CA/W33,E,CCK
  22348     22260   CC/W33,CA/W33,E,CCK
  22352         CC/W33,CA/W33,E,CCK
  22356         CC/W33,CA/W33,E,CCK
  22372         CC/W33,CA/W33,E,CCK
  22380         CC/W33,CA/W33,E,CCK





Brass Cage Spherical Roller Bearing 23060 MB / W33 Europe Standard 0
