Place of Origin: | CHINA |
Brand Name: | ZH |
Certification: | IS09001 |
Model Number: | 22330MA |
Minimum Order Quantity: | 1PCS |
---|---|
Packaging Details: | neutral packing ,standard exporting packing or as required |
Delivery Time: | 5-8 work day |
Payment Terms: | L/C,,D/P,T/T, Alibaba online payment,Paypal,etc. |
Supply Ability: | 50000 Set/Sets per Month |
Price: | Factory Price | Product Name: | Spherical Roller Bearing |
---|---|---|---|
Model: | 22330MA | MOQ: | 1 |
Supplyy: | 5 | Quality: | Made In China |
Material: | CHROME STEEL | SIZE: | 150*320*108mm |
High Light: | excavator components,excavator engine parts |
High quality CHROME STEEL Material 22330MA 22330X 22330CAC 22330E 22330RS 22330BC 22330EACF
P0 P3 P2 Quality Level 150*320*108mm Spherical Roller Bearing
Product introduction(Good quality, long service time bearing)
22330MA Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. sphericals feature the industry’s highest load rating: a full 18% higher than a standard spherical roller bearing. This level of quality means at least a 75% extension of service life. The performance of these sphericals is achieved through the use of very high quality raw materials and optimized rolling element geometry.
d |
150 mm
|
Bore diameter |
---|---|---|
D |
320 mm
|
Outside diameter |
B |
108 mm
|
Width |
d2 |
≈188 mm
|
Shoulder diameter of inner ring |
D1 |
≈266 mm
|
Shoulder/recess diameter of outer ring |
b |
16.7 mm
|
Width of lubrication groove |
K |
9 mm
|
Diameter of lubrication hole |
r1,2 |
min.4 mm
|
Chamfer dimension |
da |
min.167 mm
|
Diameter of shaft abutment |
---|---|---|
Da |
max.303 mm
|
Diameter of housing abutment |
ra |
max.3 mm
|
Radius of fillet |
Basic dynamic load rating | C |
1 539 kN
|
---|---|---|
Basic static load rating | C0 |
1 760 kN
|
Fatigue load limit | Pu |
146 kN
|
Reference speed |
1 600 r/min
|
|
Limiting speed |
2 000 r/min
|
|
Limiting value | e |
0.35
|
Calculation factor | Y1 |
1.9
|
Calculation factor | Y2 |
2.9
|
Calculation factor | Y0 |
1.8
|
Permissible rotational acceleration for oil lubrication |
706 m/s²
|
|
Permissible linear acceleration for oil lubrication |
186 m/s²
|
22330MA Collection
T7FC055=300 | SG02 | HMK3525+IR | NUP207 | NUP308 | NUP2209 | NUP307 | TM09 |
NUP309 | SG15 | 30309D | HMGF57 | NUP309 | NUP2212 | 30311D | GM18VL |
30312D | 30314D=250 | 30210 | SG08 | NUP309 | NUP2212 | T7FC055 | KMF125-PC200-7 |
30314D | KMF41-PC60-7 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 | NUP309=180 |
NUP309 | KMF90-PC200-6 | 30311D | JMV-44/22 | 30312D=155 | 30312D=155 | NUP2207=140 | |
JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP2206=130 | |
JMF23 | NUP2207 | SG025 | GM35VL | MCB172 | 32207 | NUP309=180 | |
JMF151 | GM38VB | M2X146 | T7FC060 | 30312 | NUP309 | ||
JMF195 | JMV-53/31 | HMT36FA | M2X150 | NUP207 | 30312D | NUP310 | |
JMF250 | MAG85 | HMGC32 | M2X170 | 6213 | 30312D | NUP2310 | |
M2X55 | MAG120 | HMGF35 | M2X210 | NUP308 | NUP308 | NUP2212 | |
M2X63 | MAG150 | HMGF36 | SG20 | NUP2207 | DNB50/60 | NUP206 | |
KMF125-PC200-8 | NUP206E | HMGC48 | HMS072 | 6305 | NUP308 | NUP308=140 | |
KMF160-PC360-7 | 15578 | NUP309 | AP5S67 | NUP2211=250 | 30309D=110 | NUP309 | |
MSG-27P | NUP306 | T7FC055 | 11749/11710 | NUP207 | NUP207 | NUP206 | |
AP5S53 | NUP307 | T7FC055 | NUP310 | NUP307 | 30309D | 6305M | |
M5X130 | NUP205E | NUP306 | NUP208E | NUP307 | 30312D | 4T-30307 |

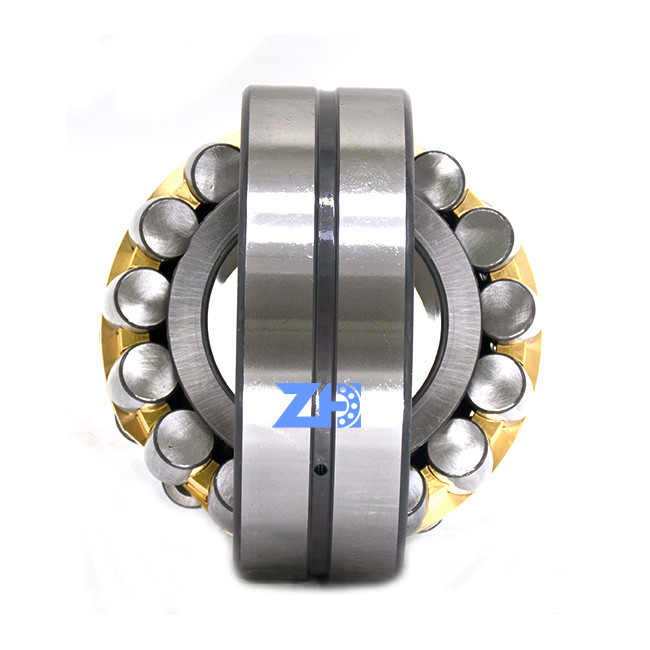

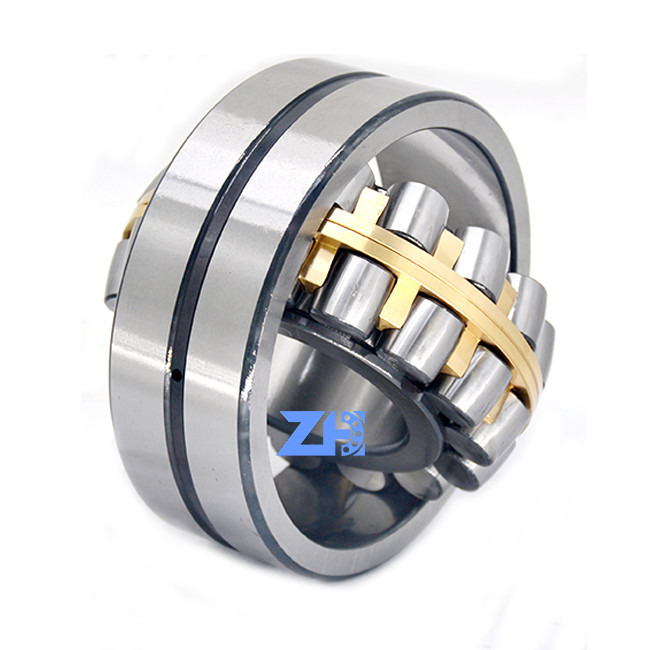

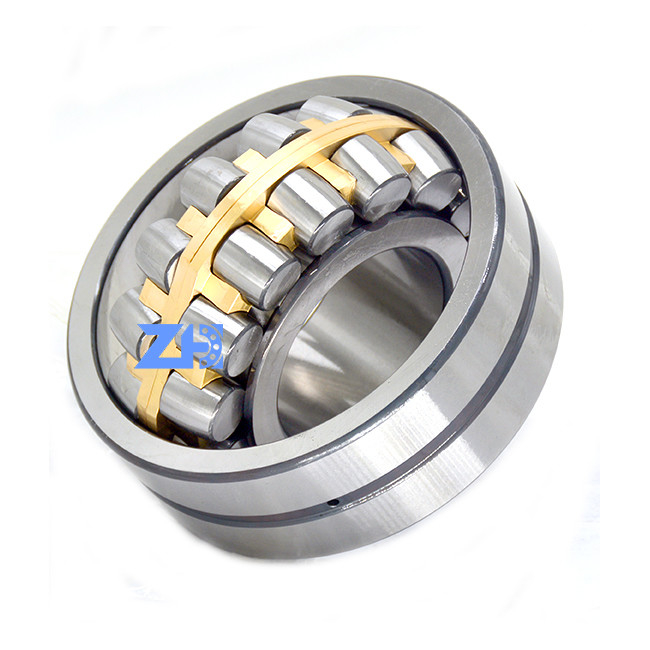

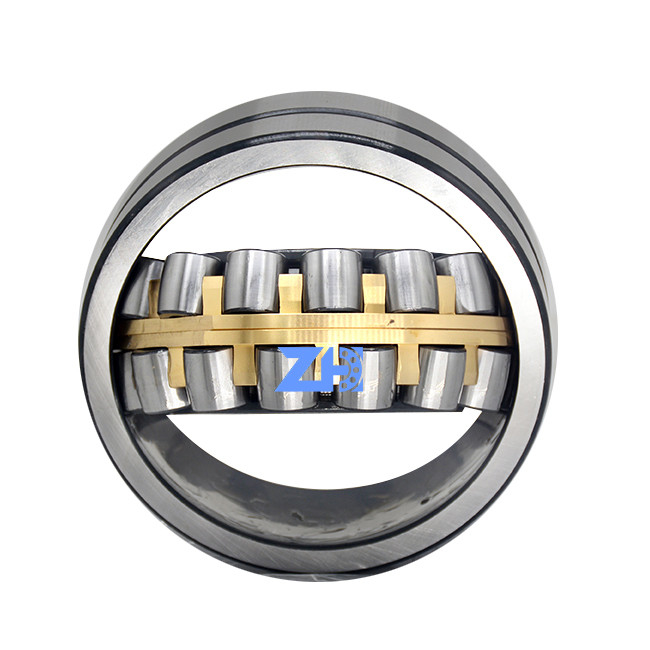

Picture show
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
Why choose us?
1. Let’s talk—we have NO barrier in language.
2. Request for more item information---there are nearly 2000 products for your option!
3. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a ready product.
