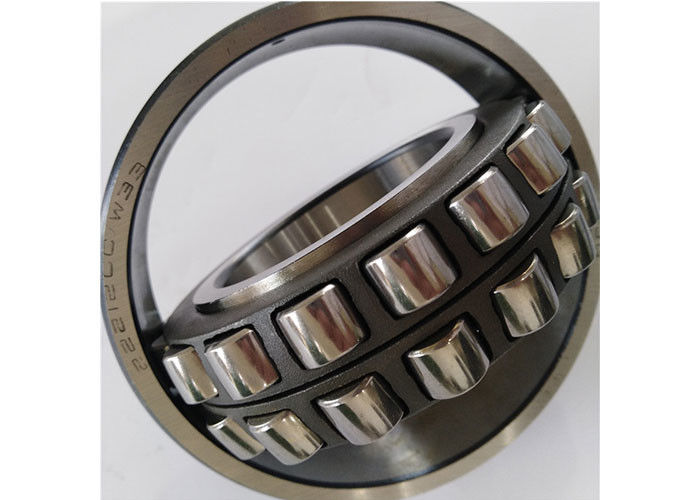

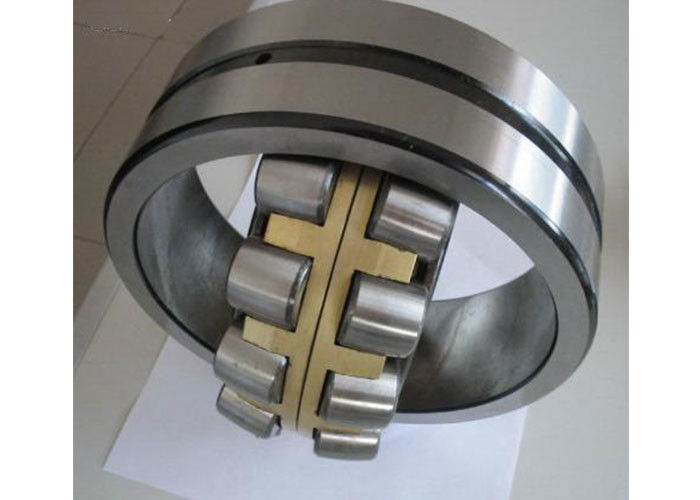

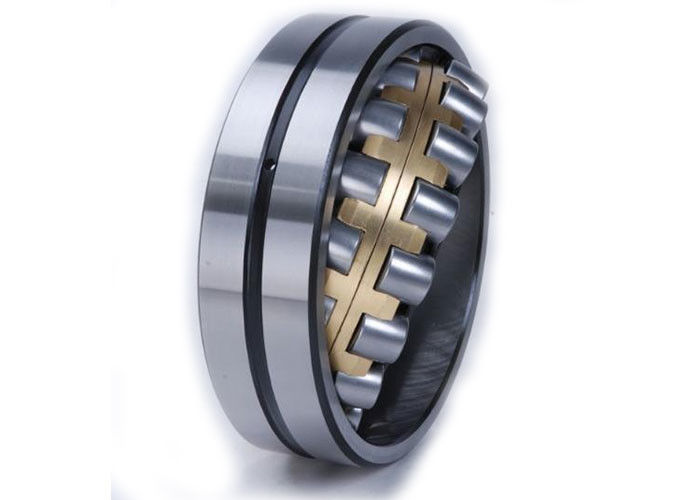

High Duty Seismic Behavior Spherical Roller Bearing 24030 CC / W33 CC / CA / MB Series

High Duty Seismic Behavior Spherical Roller Bearing 24030 CC / W33 CC / CA / MB Series

    • High Duty Seismic Behavior Spherical Roller Bearing 24030 CC / W33 CC / CA / MB Series
    • High Duty Seismic Behavior Spherical Roller Bearing 24030 CC / W33 CC / CA / MB Series
    • High Duty Seismic Behavior Spherical Roller Bearing 24030 CC / W33 CC / CA / MB Series
    • High Duty Seismic Behavior Spherical Roller Bearing 24030 CC / W33 CC / CA / MB Series
  • High Duty Seismic Behavior Spherical Roller Bearing 24030 CC / W33 CC / CA / MB Series

    Product Details:

    Place of Origin: ShanDong, China (Mainland)
    Brand Name: CN&ZH
    Certification: ISO 9001:2000
    Model Number: 23032

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD =-1-100 piece
    Packaging Details: Conventional Package/As your request
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 5000 pieces days
    Contact Now
    Detailed Product Description
    Bore Size: 160 Mm Outside Diameter: 240 Mm
    High: 60 Mm Feature: High Quality/Long Life
    Material: Chrome Steel/GCR 15 Precision Rating: P0 P6 P5 P4 P2

    High Duty Seismic Behavior Spherical Roller Bearing 24030 CC / W33 CC / CA / MB Series



    Product Description​



    Spherical roller bearings are inherently self-aligning and very robust. They have two rows of rollers which make the bearings able to carry heavy loads. The present LHZ range of spherical roller bearings mainly includes CC, CA, CAE, MB and E type. LHZ can provide a wide range of sizes of several ISO Dimension Series and also includes special designs, for example, for vibrating screens and other applications. Special bearings can also be customized as required based on the standard bearings.
    Spherical Roller Bearing CC series
    Spherical Roller Bearing CA series
    Spherical Roller Bearing CAE series
    Spherical Roller Bearing MB series
    Spherical Roller Bearing E series



    Specification





    New items Old items         Specifications(dxDxB) Weight/kg
    23022CA/W33 3053122K 23022CDE4 23022BD1 23022EAS·M 23022CC/W33 110x170x45 3.75
    23024C/W33 3053124Y 23024CDE4 23024BD1 23024EAS·M 23024CC/W33 120x180x46 4.2
    24024C 4053124 24024CE4 24024BD1 24024ES·TVPB 24024CC/W33 120x180x60 5.3
    24026C 4053126 24026CE4 24026BD1 24026ES·TVPB 24026CC/W33 130x200x69 7.95
    24028C 4053128 24028CE4 24028BD1 24028ES·TVPB 24028CC/W33 140x210x69 8.09
    24030C 4053130 24030CE4 24030BD1 24030ES·TVPB 24030CC/W33 150x225x75 10.5
    24032C 4053132 24032CE4 24032BD1 24032ES·TVPB 24032CC/W33 160x240x80 12.9
    24034C 4053134 24034CE4 23034BD1 24034BS·MB 24034CC/W33 170x260x90 17.5
    24036C 4053136 24036CE4 23036BD1 24036BS·MB 24036CC/W33 180x280x100 23
    24038C 4053138 24038CE4 24038BD1 24038BS·MB 24038CC/W33 190x290x100 24.2
    24040C 4053140 24040CE4 24040BD1 24040BS·MB 24040CC/W33 200x310x109 30.5
    24044CA 4053144 24044CE4 24044BD1 24044B·MB 24044CC/W33 220x340x118 40.7
    24048CA 4053148 24048CE4 24048BD1 24048B·MB 24048CC/W33 240x360x118 46.5
    24052CA 4053152 24052CAE4 24052BD1 24052B·MB 24052CC/W33 260x400x140 66
    24056CA 4053156 24056CAE4 24056BD1 24056B·MB 24056CC/W33 280x42x140 70.3
    24064 4003164 24064CAE4 24064BD1 24064B·MB 24064CC/W33 320x480x160 103
    24136CCK30/W33 4453736Y         180x300x118 44
    22240CC/W33 53540Y         200x360x98 43.5
    21305CC 53305 21305CD   21305E·TVPB 21305CC 25X62X17
    21306CC 53306 21306CD   21306E·TVPB 21306CC 30X72X19
    21307CC 53307 21307CD   21307E·TVPB 21307CC 35X80X21
    21308CC 53308 21308CD 21308C 21308E·TVPB 21308CC 40X90X23
    21309CC 53309 21309CD 21309C 21309E·TVPB 21309CC 45X100X25
    21310CC 53310 21310CD 21310C 21310E·TVPB 21310CC 50X110X27
    21311CC 53311 21311CD   21311E·TVPB 21311CC 55X120X29
    21312CC 53312 21312CD   21312E·TVPB 21312CC 60X130X31
    21313CC 53313 21313CD   21313E·TVPB 21313CC 65X140X33
    21314CC 53314 21314CD   21314E·TVPB 21314CC 70X150X35
    21315CC 53315 21315CD   21315E·TVPB 21315CC 75X160X37
    21316CC 53316 21316CD   21316E·TVPB 21316CC 80X170X39




    High Duty Seismic Behavior Spherical Roller Bearing 24030 CC / W33 CC / CA / MB Series
