Double Row Vertical Seat - Aligning 23024 Spherical Roller Bearing C Cage Tpye

Double Row Vertical Seat - Aligning 23024 Spherical Roller Bearing C Cage Tpye

    • Double Row Vertical Seat - Aligning 23024 Spherical Roller Bearing C Cage Tpye
    • Double Row Vertical Seat - Aligning 23024 Spherical Roller Bearing C Cage Tpye
    • Double Row Vertical Seat - Aligning 23024 Spherical Roller Bearing C Cage Tpye
    • Double Row Vertical Seat - Aligning 23024 Spherical Roller Bearing C Cage Tpye
  • Double Row Vertical Seat - Aligning 23024 Spherical Roller Bearing C Cage Tpye

    Product Details:

    Place of Origin: ShanDong, China (Mainland)
    Brand Name: CN&ZH
    Certification: ISO 9001:2000
    Model Number: 23024 CC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD =-11-12 piece
    Packaging Details: Conventional Package/As your request
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 500 pieces days
    Contact Now
    Detailed Product Description
    Bore Size: 120 Mm Outside Diameter: 180 Mm
    Lubrication: Oil,Grease,Dry Feature: High Quality/Long Life
    Material: Chrome Steel/GCR 15 Precision Rating: P0 P6 P5 P4 P2

    Double Row Vertical Seat - Aligning 23024 Spherical Roller Bearing C Cage Tpye

    Product Description​

    The spherical roller bearing has double row rollers, the outer ring has 1 common spherical raceways, the inner ring has 2 raceways, and is inclined to an angle relative to the bearing axis. This ingenious structure makes it self aligning, so it is not easy to be affected by the angle of the shaft and the bearing box on the error or the axis bending. It is suitable for the occasion of the angle error caused by the installation error or the deflection of the shaft. The bearing not only can bear radial load, but also can bear axial load of bidirectional action.
    The inner hole of the roller bearing has two kinds of cylindrical and conical cones, and the conical conical taper is two kinds at 1:30 and 1:12. This conical inner hole bearing is fitted with a tight setting or retreating sleeve. The cone bore ball bearing can be conveniently and quickly assembled on the optical axis or the staircase shaft.



    Specification


    Product name23024 CCK/W33+H3024 spherical roller bearing
    Brand CN&ZH/OEM
    Ring MaterialGcr15/ Carbon Steel/ Stainless Steel/ Si3N4/ ZrO2
    Cage Material Steel/ Brass/ Nylon/ Custom
    PrecisionP0, P6, P5, or as requested
    VibrationZV1, ZV2, ZV3, or as requested
    Clearance C0,C2,C3, or as requested
    Quality standardISO9001:2000/ SGS
    Quality Control Process 1.Assembly
    2.Windage test
    3.Cleaning
    4.Rotary test
    5.Greasing and gland
    6.Noise inspection
    7.Appearance inspection
    8.Rust prevention
    9.Product packaging
    Application

    Home appliances; automotive, electric, instruments, building machines, railway vehicle,
    agricultural machines and etc.

    PackingIndustrial packing: plastic bag+ carton plywood pallet
    plastic bag+ white box+carton+plywood pallet
    commercial packing: plastic bag+color box+carton +plywood pallet
    ServiceOEM or customer logo acceptable
    Delivery Time Within 7days for stock product
    7-30 days according to quantity and design
    Payment Term30% T/T In Advance, 70% T/T before shipment
    100% L/C at sight

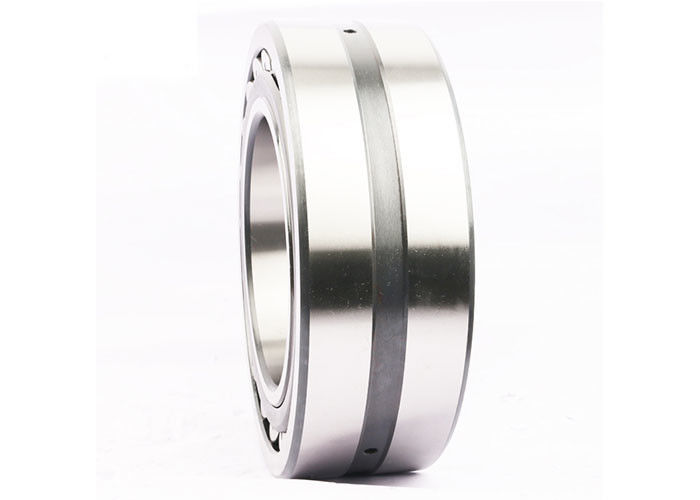

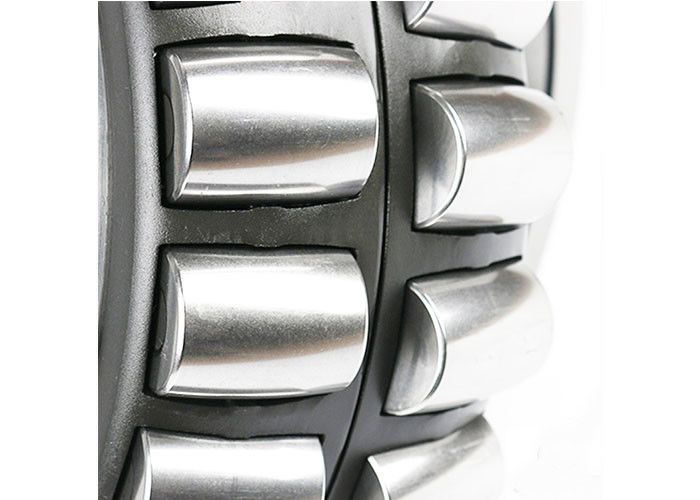

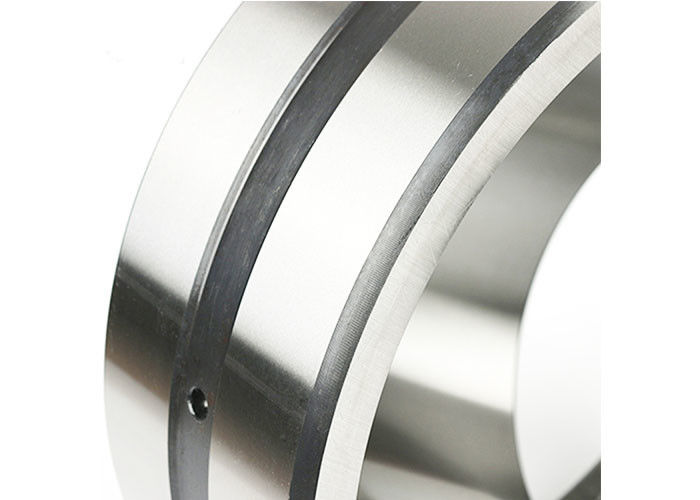

    Product show
    Double Row Vertical Seat - Aligning 23024 Spherical Roller Bearing C Cage Tpye


    Spherical Roller Bearings can be used in many areas


    • Casting cements,rolling mills,conveyors in iron and steel industry
    • Crushing machines in the cement industry
    • Roling dryers,pulpers,squeezers,press masters,water extractors,pumps in paper-making industry
    • Gear boxes in shipbuilding industry
    • Spinning machines,coal pulverizers,air blowers,rolling machines,generators,elevators,machine tools,vibrating screens,main spindles for wind turbines,etc.

    SUN Bearing can provide professional consults to customer for your application fields and offer you specific application solutions with high efficiency and precise cost control.
