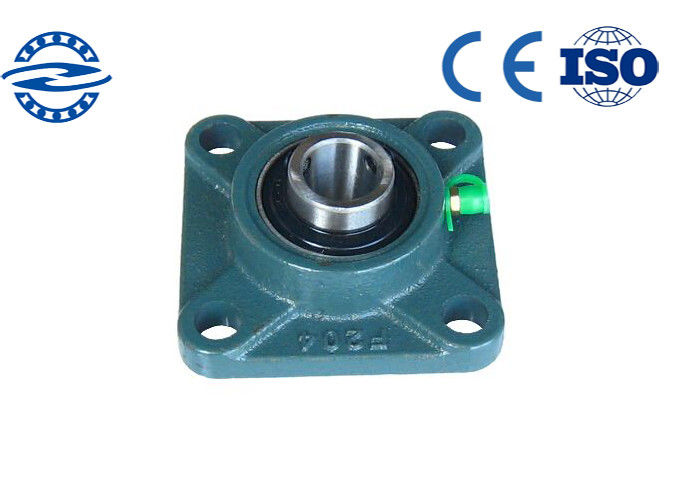

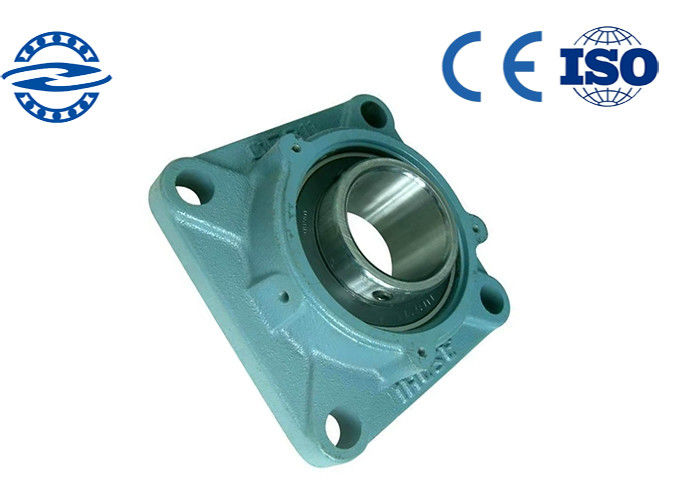

Economical Cast Iron Pillow Block Bearing , UCF205 Square Koyo Ball Bearings

Economical Cast Iron Pillow Block Bearing , UCF205 Square Koyo Ball Bearings

    • Economical Cast Iron Pillow Block Bearing , UCF205 Square Koyo Ball Bearings
    • Economical Cast Iron Pillow Block Bearing , UCF205 Square Koyo Ball Bearings
    • Economical Cast Iron Pillow Block Bearing , UCF205 Square Koyo Ball Bearings
  • Economical Cast Iron Pillow Block Bearing , UCF205 Square Koyo Ball Bearings

    Product Details:

    Place of Origin: CHINA
    Brand Name: ZH NTN KOYO
    Certification: ISO9001,ISO14001
    Model Number: UCF205

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiated
    Packaging Details: SKF NTN
    Delivery Time: 1-2 work day
    Payment Terms: L/C, D/A, T/T, Western Union
    Supply Ability: 500 PC per day
    Contact Now
    Detailed Product Description
    Product Name: Ball Bearing Pillow Block Model No: UCF205
    Application: Transmission System Viberation Level: V1,V2,V3,V4
    Material: Cast Steel / Iron Steel / Stainless Steel Service: Customization Service

      Profesional Pillow Block Ball Bearings with Housing  UCF205







    2.Application :



    Economical housed bearing solution

    Light and heavy industrial use Pillow Block Bearing
    Agricultural and Automotive Pillow Block Bearing
    Conveyor and Fan assemblies Pillow Block Bearing
    Fabricated machine assembly Pillow Block Bearing
    Great value quality parts dispatched the same day



    3.Features :

    1. With tight set screw insert class UC bearing Pillow Block Bearing ;
    2. Insert UK type bearing with conical hole;
    Pillow block bearing is deep groove ball bearing grease seal type bearing with different shapes and combination of high precision components products.Bearing assembly can pass a few bolts to install directly on the body of the mechanical device, with the heart function, can be the supplement of the grease, etc., is a kind of installation is very simple products.

    Pillow block bearingUSES: outer spherical bearing is suitable for the required equipment and parts of simple situation, such as used for agricultural machinery, transportation systems or on construction machinery

    4.UC210 Insert Ball Bearing Related Pillow Block Bearing Catalogue:



    Chrome Steel SAIFAN Bearing UCF210 Pillow Block Bearing UC210 Insert Ball Bearing



    Model NO. Length(mm) Width(mm) Thickness(mm) Weight(kg)
    UCF201 Bearing 127 38 60.7 0.760
    UCF202 Bearing 127 38 60.7 0.740
    UCF203 Bearing 127 38 60.7 0.720
    UCF204 Bearing 127 38 64 0.700
    UCF205 Bearing 140 38 69.5 0.760
    UCF206 Bearing 160 44 82 1.250
    UCF207 Bearing 167 48 92 1.550
    UCF208 Bearing 180 52 98 1.900
    UCF209 Bearing 189 54 106 2.200
    UCF210 Bearing 204 57 112 2.750
    UCF211 Bearing 217 60 125 3.300
    UCF212 Bearing 238 66 137 4.700
    UCF213 Bearing 262 70 149 5.600
    UCF214 Bearing 266 72 155 6.600
    UCF215 Bearing 274 74 162 7.300
    UCF216 Bearing 292 78 174 9.000
    UCF217 Bearing 310 83 186 10.80
    UCF218 Bearing 326 88 198 13.00
    UCF220 Bearing 380 95 225 16.00
    UCF305 Bearing 175 45 85 1.400
    UCF306 Bearing 180 50 95 1.800
    UCF307 Bearing 210 56 106 2.800
    UCF308 Bearing 220 60 116 3.080
    UCF309 Bearing 245 67 129 4.100
    UCF310 Bearing 275 75 143 6.000
    UCF311 Bearing 310 80 154 7.400
    UCF312 Bearing 330 85 165 9.400
    UCF313 Bearing 340 90 176 10.000
    UCF314 Bearing 360 90 187 12.000
    UCF315 Bearing 380 100 198 14.000
    UCF316 Bearing 400 110 210 18.000
    UCF317 Bearing 420 110 220 20.000
    UCF318 Bearing 430 110 220 24.000
    UCF319 Bearing 470 120 250 26.500
    UCF320 Bearing 490 120 275 34.300
    UCF321 Bearing 490 120 280 36.600
    UCF322 Bearing 520 140 300 42.500
    UCF324 Bearing 570 140 320 53.500
    UCF326 Bearing 600 140 355 72.100
    UCF328 Bearing 620 140 390 89.100









     Economical Cast Iron Pillow Block Bearing , UCF205 Square Koyo Ball Bearings
