Place of Origin: | CHINA |
Brand Name: | NTN |
Model Number: | 23026E |
Certifiexcavatorion: | ISO9001-2000 / CE / ROHS / UL / SGS |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | negotiable |
Packaging Details: | neutral package |
Delivery Time: | 1-2 work days |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | 300pieces per day |
Product Name: | Spherical Roller Bearing | Size: | 130 Mm * 200 Mm * 52 Mm |
---|---|---|---|
Weight: | 6.14 Kg | Material: | Gcr15 |
Certifiexcavatorion:: | ISO9001, ISO14001 | Precision Rating: | ABEC-3 / ABEC-5 |
Bearing Precision: | P0 P2 P4 P5 P6 | Vibration Level: | V1,V2,V3,V4 |
High Light: | roller cage bearing,split roller bearing |

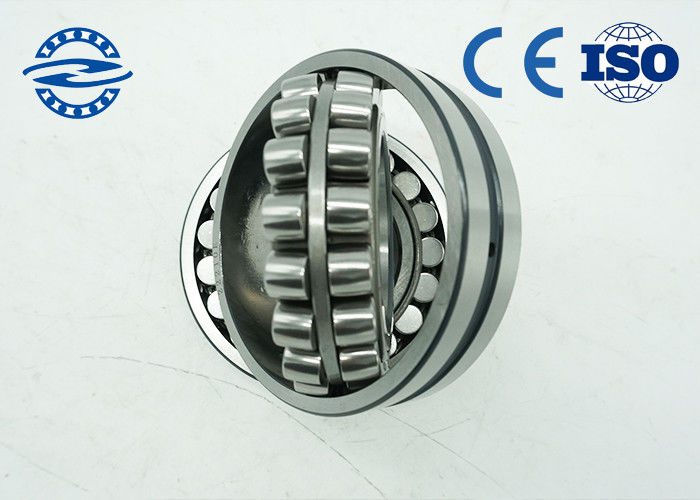

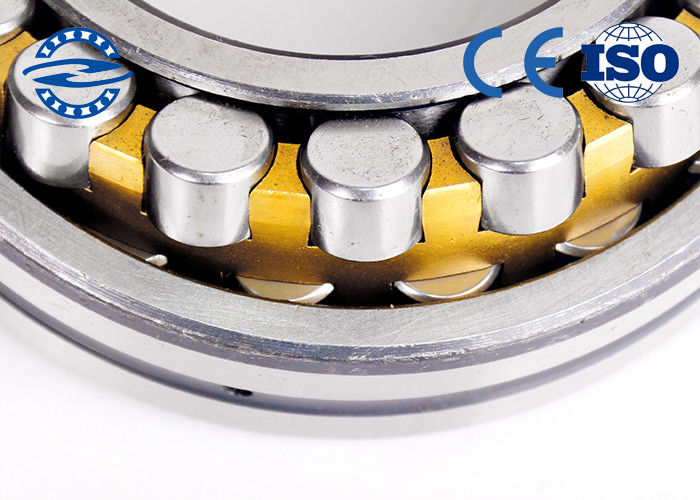

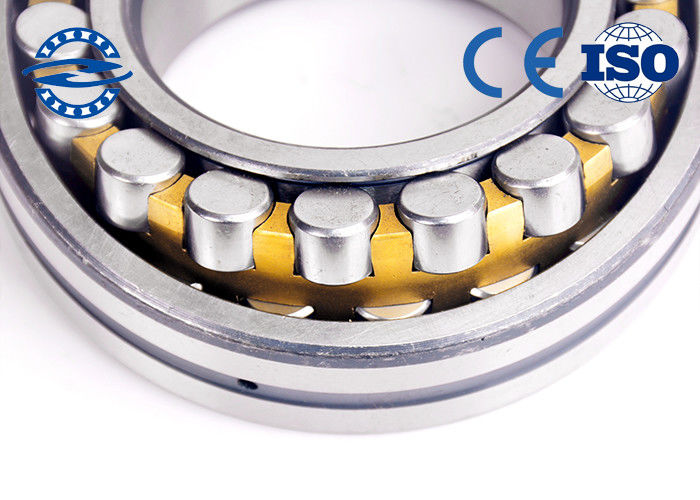

Stainless steel bearing Spherical roller bearing 23026E 6.14 kg
1 . Basic info
Spherical roller bearing Features
1 . Spherical roller bearings are principally provided with two rows of symmetrical spherical rollers and a common sphere raceway in out ring, the two inner ring raceways are included at an angle to the bearing axia
2 . The bearings have good self-aligning ability and can operate when the shaft deflection under load or the shaft deflection under load or the shaft misaligning in mounting , and their permissible aligning angle is 1 to 2.5 degree
3 . This type of bearings has heavy load carrying capacity and anti-impact ability , in addition to radial loads , they also can carry axial loads in two directions
4 . In general , this type of bearings permits a low limiting speed .
5 . production range
Inner diameter :10 mm ~ 1100 mm
Outer diameter : 30 mm ~ 1300 mm
Height 9 mm ~ 300 mm
2 . Other size :
Bearing No . | d | D | B | R/min | Co | Cor | Weight kg | |
23026E | 23026EK | 130 | 200 | 52 | 2 | 400000 | 660000 | 6.14 |
23026AX | 23026AXK | 130 | 200 | 52 | 2 | 402000 | 664000 | 6.1 |
24026EX1 | 24026EX1K30 | 130 | 200 | 69 | 2 | 510000 | 900000 | 7.93 |
24026AX | 24026AXK30 | 130 | 200 | 69 | 2 | 472000 | 803000 | 7.77 |
23126EX1 | 23126EX1K | 130 | 210 | 64 | 2 | 497000 | 799000 | 8.6 |
23126AX | 23126AXK | 130 | 210 | 64 | 2 | 509000 | 827000 | 8.9 |
24126EX1 | 24126EX1K30 | 130 | 210 | 80 | 2 | 604000 | 1030000 | 10.7 |
24126AX | 24126AXK30 | 130 | 210 | 80 | 2 | 560000 | 918000 | 10.5 |
22226EX | 22226EXK | 130 | 230 | 64 | 3 | 655000 | 915000 | 11.6 |
22226AEX | 22226AEXK | 130 | 230 | 64 | 3 | 585000 | 765000 | 11.6 |
23226EX1 | 23226EX1K | 130 | 230 | 80 | 3 | 705000 | 1090000 | 14.2 |
23226AX | 23226AXK | 130 | 230 | 80 | 3 | 693000 | 1070000 | 14.5 |
22326EX | 22326EXK | 130 | 280 | 93 | 4 | 1050000 | 1340000 | 28.4 |
22326AEX | 22326AEXK | 130 | 280 | 93 | 4 | 984000 | 1220000 | 27.3 |
3 . FAQ
Q : Are you a trader or manufacturer?
A : We are factory specializing in all kind of bearings. We can give you the best price and better service.
Q : What is your delivery time ?
A : Sample order: Immediate delivery , bulk order : usually 30 days.
Q : Can i request sample ?
A : Of course , sample is ok and we can give you a sample
Q : What's the shipping way ?
A : According to YOUR demands .
Q : Can you accept OEM or ODM ?
A : Yes , of course. logo is also acceptable .
Q : How is quality controlled ?
A : Quality is the key !
4 . The self-aligning ball bearings are widely used in mining machinery , power machinery , heavy machinery and textile machinery etc.
6 . Packaging
1 . Single box packing , then in carton then in Pallet
2 . Standard export packing .
3 . According customer demand .
