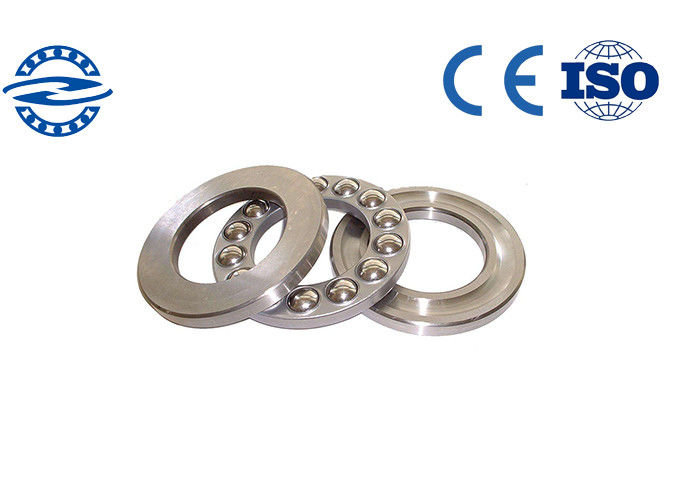

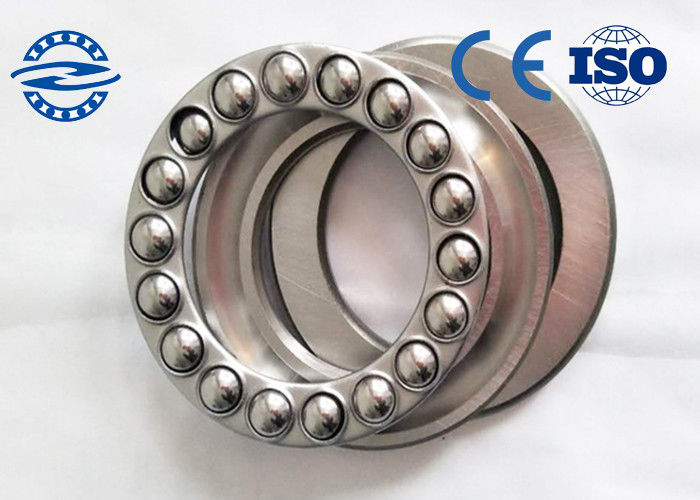

Angle Grinder Spare Parts Thrust Roller Bearing 51101 0.022 Kg 12mm × 26mm × 9mm

Angle Grinder Spare Parts Thrust Roller Bearing 51101 0.022 Kg 12mm × 26mm × 9mm

    • Angle Grinder Spare Parts Thrust Roller Bearing 51101 0.022 Kg 12mm × 26mm × 9mm
    • Angle Grinder Spare Parts Thrust Roller Bearing 51101 0.022 Kg 12mm × 26mm × 9mm
    • Angle Grinder Spare Parts Thrust Roller Bearing 51101 0.022 Kg 12mm × 26mm × 9mm
  • Angle Grinder Spare Parts Thrust Roller Bearing 51101 0.022 Kg 12mm × 26mm × 9mm

    Product Details:

    Place of Origin: CHINA
    Brand Name: ZH NTN
    Certification: ISO9001-2000 / CE / ROHS / UL /
    Model Number: 51101

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiable
    Packaging Details: ZH NTN
    Delivery Time: 1-2 work day
    Payment Terms: L/C, D/A, T/T, Western Union
    Supply Ability: 500 pieces per day
    Contact Now
    Detailed Product Description
    PRODUCTS: Small Thrust Bearings Part Name: Angle Grinder Spare Parts Thrust Ball Bearings 51101 0.022 Kg 12×26×9mm
    Dimensions(mm)(d*D*b): 12×26×9mm Application: Machine Tool
    Material: Gcr15 Precision Rating: ABEC-3 / ABEC-5
    Weight: 0.022 KG HS Code: 8482100000

    angle grinder spare parts Thrust Ball Bearings 51101 0.022 kg 12×26×9mm

    1 . Product description

     Production range
    Inner diameter :10 mm ~1380 mm
    Outer diameter : 24 mm ~1540 mm
    Height : 9 mm ~160 mm


    Thrust ball bearing
    Original brands
     ZH&OEM
    Bore Size:
    10-150mm
    Outside Size:
    24-190mm
    thickness
    9-31mm
    Material
    GCr15,bearing steel
    Cr
    9-109KN
    Cor
    13.4-402KN
    precision
    P0,P56,P5,P4,P4
    Clearance
    C2 C3 C4 C5
    Hardness
    Hrc58-63


    Advantage of our company:
    1 . More than 12 years industry experience
    2 . 24 hours calling service
    3 . Reply your inquiry within 12 hours
    4 . Professional technical support
    5 . Good ability of cost control brings you reasonable price, long-term partner of forwarder brings you low freight
    6 . Special discount and protection of sales area provide to our distributors.

    Thrust ball bearing series



    Bearing
    Type
    Bearing
    NO.
    ID OD B Cr Cor Max speed
    (Grease)
    Max Speed
    (Oil)
    Mass Material

    Unit Price

    (Reference)

        (mm) (mm) (mm) (kN) (kN) (r/min) (r/min) (kg)   (USD)
    Thrust ball
    bearing
    51100 10 24 9 10 14 6500 10000 0.02 Chrome steel $1.60
    Thrust ball
    bearing
    51101 12 26 9 10.3 15.4 6500 10000 0.022 Chrome steel $1.65
    Thrust ball
    bearing
    51102 15 28 9 10.5 16.8 6100 9400 0.024 Chrome steel $1.70
    Thrust ball
    bearing
    51103 17 30 9 10.8 18.2 6100 9400 0.028 Chrome steel $2.00
    Thrust ball
    bearing
    51104 20 35 10 14.2 24.7 5100 7900 0.04 Chrome steel $2.20
    Thrust ball
    bearing
    51105 25 42 11 19.5 37.2 4400 6800 0.059 Chrome steel $2.50
    Thrust ball
    bearing
    51106 30 47 11 20.4 42.2 4300 6600 0.068 Chrome steel $2.80
    Thrust ball
    bearing
    51107 35 52 12 20.4 44.7 3900 6000 0.09 Chrome steel $3.10
    Thrust ball
    bearing
    51108 40 60 13 26.9 62.8 3400 5300 0.12 Chrome steel $3.92
    Thrust ball
    bearing
    51109 45 65 14 27.8 69.1 3200 5000 0.15 Chrome steel $4.35
    Thrust ball
    bearing
    51110 50 70 14 28.8 75.4 3100 4800 0.16 Chrome steel $5.10
    Thrust ball
    bearing
    51111 55 78 16 32.4 95.6 2800 4400 0.24 Chrome steel $5.90
    Thrust ball
    bearing
    51112 60 85 17 41.4 113 2600 4000 0.29 Chrome steel $7.70
    Thrust ball
    bearing
    51113 65 90 17 41.7 117 2400 3700 0.34 Chrome steel $8.90



     2 . The characteristics of thrust ball bearing



    1 . One - way , two - way type thrust ball bearing thrust ball bearing
    2 . The spherical seat cushion or spherical seat ring can be selected.
    3 . High quality steel -- ultra clean steel which can extend the life of the bearing by 80%
    4 . High grease technology - NSK's lubricant technology can extend the life of the grease and improve the performance of the bearing
    5 . High grade steel ball - quiet and smooth at high speed
    6 . Use the ring in the selection to allow for installation error







    3 .  FAQ

    Q : Are you a trader or manufacturer?

    A : We are factory specializing in all kind of bearings. We can give you the best price and better service.



    Q : What is your delivery time?

    A : Sample order: Immediate delivery , bulk order: usually 30 days.



    Q : Can i request sample?

    A : Of course , sample is ok and we can give you a sample



    Q : What's the shipping way?

    A : According to YOUR demands.







    4 .  Our ascendancy

    we have our own factory

    standard packing can be changed as your requirement

    bearings cage could select according to your needs

    size and color can be customized

    good communication sales team







    5 . Packaging


    1 . Single box packing, then in carton then in Pallet.
    2 . Standard export packing.
    3 .  According customer demand.





    6 . Application:

    Use of thrust ball bearing: it is only applicable to the machine parts with axial load and low speed, such as crane hook, vertical pump, vertical centrifuge, jack, low speed reducer, etc







    Angle Grinder Spare Parts Thrust Roller Bearing 51101 0.022 Kg 12mm × 26mm × 9mm  Angle Grinder Spare Parts Thrust Roller Bearing 51101 0.022 Kg 12mm × 26mm × 9mm
