Home ProductsThrust Ball Bearing

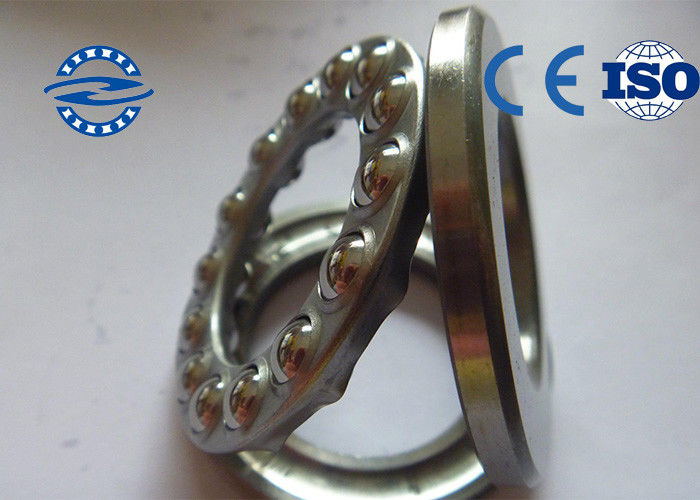

High Grade Double Direction Thrust Ball Bearing 52406 38406 30mm × 70mm × 52mm

High Grade Double Direction Thrust Ball Bearing 52406 38406 30mm × 70mm × 52mm

    • High Grade Double Direction Thrust Ball Bearing 52406 38406 30mm × 70mm × 52mm
    • High Grade Double Direction Thrust Ball Bearing 52406 38406 30mm × 70mm × 52mm
  • High Grade Double Direction Thrust Ball Bearing 52406 38406 30mm × 70mm × 52mm

    Product Details:

    Place of Origin: CHINA
    Brand Name: ZH NTN
    Certification: ISO9001-2000 / CE / ROHS / UL /
    Model Number: 52406 38406

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiable
    Packaging Details: ZH NTN
    Delivery Time: 1-2 work day
    Payment Terms: L/C, D/A, T/T, Western Union
    Supply Ability: 500 pieces per day
    Contact Now
    Detailed Product Description
    Model No: 52406 38406 Weight: 0.9 7 Kg
    Dimensions(mm)(d*D*b): 30mm × 70mm × 52mm Material: Gcr15
    Precision Rating: ABEC-3 / ABEC-5 Name: Double Direction Thrust Bearing

    52406 38406 double direction thrust ball bearing 30mm × 70mm × 52mm



    1 . Product description



    The thrust ball bearing is designed to withstand the thrust load during high speed operation , which is composed of gasket ring of rolling grooves with ball rolling .

    The thrust ball bearings are divided into two types : flat base cushion type and spherical cushion type.

    In addition , the bearing can withstand axial load , but cannot bear the radial load







     2 . Other size





    Specification (mm) Model Dy St Limited Speed(rpm)
    Basic Load
    d d2 D T1 r r1 Ca(N) Coa(N) Grease Oil
    (min) (min)




    15 10 32 22 0.6 0.3 52202 16600 24800 5100 7600
    20 15 40 26 0.6 0.3 52204 22200 37500 4200 6300
    25 20 47 28 0.6 0.3 52205 27800 50500 3700 5600
    25 20 52 34 1 0.3 52305 35500 61500 3200 4900
    25 15 60 45 1 0.6 52405 55500 89500 2600 3900
    30 25 52 29 0.6 0.3 52206 29300 58000 3400 5200
    30 25 60 38 1 0.3 52306 42500 78500 2800 4200
    30 20 70 52 1 0.6 52406 72500 126000 2200 3300
    35 30 62 34 1 0.3 52207 39000 78000 2900 4400
    35 30 68 44 1 0.3 52307 55500 105000 2400 3700
    35 25 80 59 1.1 0.6 52407 87000 155000 1900 2900
    40 30 68 36 1 0.6 52208 47000 98500 2700 4100
    40 30 78 49 1 0.6 52308 69000 135000 2200 3300
    40 30 90 65 1.1 0.6 52408 112000 205000 1700 2600
    45 35 73 37 1 0.6 52209 47500 105000 2600 3900
    45 35 85 52 1 0.6 52309 80000 163000 2000 3000
    45 35 100 72 1.1 0.6 52409 129000 243000 1600 2400







    3 . The characteristics of thrust ball bearing



    1 . One - way, two - way type thrust ball bearing thrust ball bearing
    2 . The spherical seat cushion or spherical seat ring can be selected.
    3 . High quality steel -- ultra clean steel which can extend the life of the bearing by 80%
    4 . High grease technology - NSK's lubricant technology can extend the life of the grease and                        improve the performance of the bearing
    5 . High grade steel ball - quiet and smooth at high speed
    6 . Use the ring in the selection to allow for installation error





    4 . FAQ


    Q : Are you a trader or manufacturer ?
    A : We are factory specializing in all kind of bearings. We can give you the best price and better service .


    Q : What is your delivery time ?
    A : Sample order: Immediate delivery , bulk order: usually 30 days .


    Q : Can i request sample ?
    A : Of course , sample is ok and we can give you a sample by free .


    Q : What's the shipping way ?
    A : According to YOUR demands .





    5 . Our ascendancy



    1 . Competitive price

         Large inventories and strong production capabilities enable us to offer more affordable prices globally.

         Customers can get high-quality bearings with attractive prices at the same time

    2 . Non-standard Customized Service

         We could customize many non-standard bearings as your drawing requests and offer in-house test          report by professional engineers.All customized goods are made to order as requests.





    6 . Packaging


    1 . Single box packing, then in carton then in Pallet .
    2 . Standard export packing .
    3 .  According customer demand .



    High Grade Double Direction Thrust Ball Bearing 52406 38406 30mm × 70mm × 52mm
