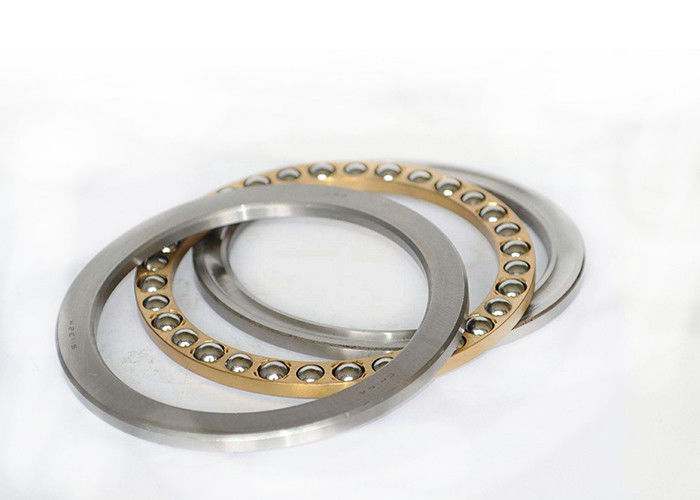

52406 38406 Double Direction Thrust Bearing 30mm × 70mm × 52mm For Machine Tool

52406 38406 Double Direction Thrust Bearing 30mm × 70mm × 52mm For Machine Tool

52406 38406 Double Direction Thrust Bearing 30mm × 70mm × 52mm For Machine Tool

Product Details:

Place of Origin: CHINA
Brand Name: ZH NTN
Certification: ISO9001-2000 / CE / ROHS / UL /
Model Number: 52406 38406

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: ZH NTN
Delivery Time: 1-2 work day
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 500 pieces per day
Contact Now
Detailed Product Description
Product Name: Thrust Ball Bearing Weight: 0.97kg
Cage: Brass Cage / Steel Cage Application: Machine Tool
Material: MachiGcr15ne Tool Dimensions(mm)(d*D*b): 30mm × 70mm × 52mm

1.Product description


PRODCTION RANGE


Inner diameter :10 mm ~1380 mm
Outer diameter : 24 mm ~1540 mm
Height : 9 mm ~160 mm





2 . Our advantage


1.Direct China factory / Manufacturer with strong Capability
We are direct bearing factory on shandong , China for more than 10 years.300 bearing types,5 million sets items and produced yearly and the output value more than 5 million US dollars last year.


2.Product quality high quality the delivery time is quick , reasonable price
Rich in stock throughout the year for general bearing types,such as self-aligning ball bearing,Tapered Roller Bearing,cylindrical roller Bearing,etc.
Based on the above advantages, we can make prompt delivery according to your requirement.
Warehouse items would Delivery of the goods within 5 - 8 days.
By courier/air or by cargo/sea



3 . The characteristics of thrust ball bearing



1. One - way, two - way type thrust ball bearing thrust ball bearing
2. The spherical seat cushion or spherical seat ring can be selected.
3. High quality steel -- ultra clean steel which can extend the life of the bearing by 80%
4. High grease technology - NSK's lubricant technology can extend the life of the grease and improve the performance of the bearing
5. High grade steel ball - quiet and smooth at high speed
6. Use the ring in the selection to allow for installation error





4 . FAQ
Q:Are you a trader or manufacturer?
A:We are factory specializing in all kind of bearings. We can give you the best price and better service.


Q:What is your delivery time?
A:Sample order: Immediate delivery , bulk order: usually 30 days.


Q:Can i request sample?
A:Of course , sample is ok and we can give you a sample by free.


Q:What's the shipping way?
A:According to YOUR demands.





5.other size

Specification (mm) Model Dy St Limited Speed(rpm)
Basic Load
d d2 D T1 r r1 Ca(N) Coa(N) Grease Oil
(min) (min)
15 10 32 22 0.6 0.3 52202 16600 24800 5100 7600
20 15 40 26 0.6 0.3 52204 22200 37500 4200 6300
25 20 47 28 0.6 0.3 52205 27800 50500 3700 5600
25 20 52 34 1 0.3 52305 35500 61500 3200 4900
25 15 60 45 1 0.6 52405 55500 89500 2600 3900
30 25 52 29 0.6 0.3 52206 29300 58000 3400 5200
30 25 60 38 1 0.3 52306 42500 78500 2800 4200
30 20 70 52 1 0.6 52406 72500 126000 2200 3300
35 30 62 34 1 0.3 52207 39000 78000 2900 4400
35 30 68 44 1 0.3 52307 55500 105000 2400 3700
35 25 80 59 1.1 0.6 52407 87000 155000 1900 2900
40 30 68 36 1 0.6 52208 47000 98500 2700 4100
40 30 78 49 1 0.6 52308 69000 135000 2200 3300
40 30 90 65 1.1 0.6 52408 112000 205000 1700 2600
45 35 73 37 1 0.6 52209 47500 105000 2600 3900
45 35 85 52 1 0.6 52309 80000 163000 2000 3000
45 35 100 72 1.1 0.6 52409 129000 243000 1600 2400
50 40 78 39 1 0.6 52210 48500 112000 2400 3600







6.Packaging


1.Single box packing, then in carton then in Pallet.
2.Standard export packing.
3. According customer demand.
